2012 Lincoln MKS Base, AWDFACTORY OEM SERVICE PROCEDURE

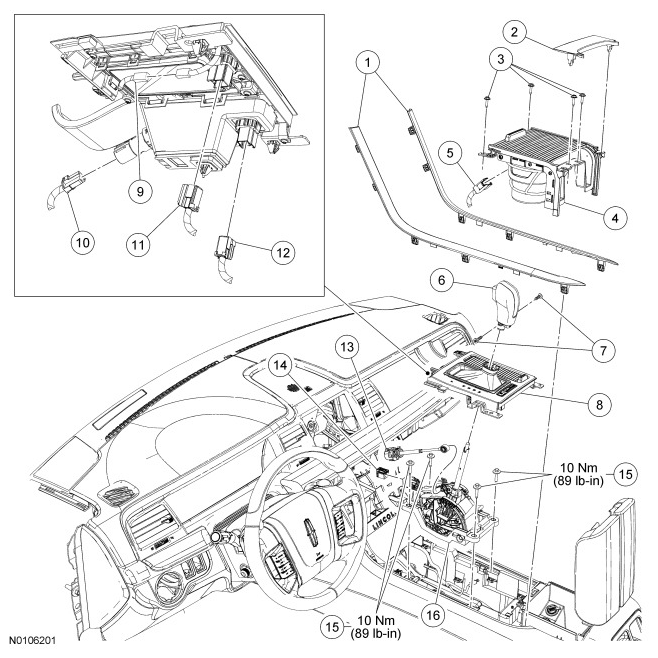

Selector Lever: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 54061A16 | Center console side trim panels |
| 2 | 5404569 | Cup holder lid trim panel |
| 3 | W707628-S424 | Cup holder retaining screws |
| 4 | 5406010 | Cup holder |
| 5 | 5413560 | Cup holder illumination electrical connector |
| 6 | 7L010 | Selector lever knob |
| 7 | W790088-S901 | Selector lever knob screws (2 required) |
| 8 | 54045A76 | Selector lever bezel |
| 9 | 14489 | PRNDL illumination electrical connector |
| 10 | 14489 | Power outlet electrical connector |
| 11 | 14489 | Auto PARK button electrical connector |
| 12 | 14489 | Storage compartment illumination electrical connector |
| 13 | 7E395 | Selector lever cable |
| 14 | 14489 | Selector lever electrical connector |
| 15 | W503926-S424 | Selector lever bolts (4 required) |
| 16 | 7210 | Selector lever |
