2006 Lincoln Navigator 4WD V8-5.4L VIN 5FACTORY OEM SERVICE PROCEDURE
Initial Inspection and Diagnostic Overview
INSPECTION AND VERIFICATION
WARNING:
- When servicing the starter motor or carrying out other underhood work in the vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter solenoid is "electrically hot" at all times. Failure to follow these instructions may result in personal injury.
- When working in the area of the starter motor, be careful to avoid touching hot exhaust components. Failure to follow these instructions may result in personal injury.
CAUTION: A protective cap or boot is provided over the battery input terminal on all car lines and must be installed after repair. Be sure to disconnect the battery ground cable before repairing the starter motor.
NOTE: When working on the starter system make sure that, if equipped with any anti-theft, the system is deactivated.
1. Verify the customer concern by operating the starting system.
2. Visually inspect for obvious signs of mechanical and electrical damage. Refer to the chart.
3. If the concern is not visually evident, verify the symptom. GO to Symptom Chart. Symptom Related Diagnostic Procedures
WARNING:
- When servicing the starter motor or carrying out other underhood work in the vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter solenoid is "electrically hot" at all times. Failure to follow these instructions may result in personal injury.
- When working in the area of the starter motor, be careful to avoid touching hot exhaust components. Failure to follow these instructions may result in personal injury.
CAUTION: A protective cap or boot is provided over the battery input terminal on all car lines and must be installed after repair. Be sure to disconnect the battery ground cable before repairing the starter motor.
NOTE: When working on the starter system make sure that, if equipped with any anti-theft, the system is deactivated.
1. Verify the customer concern by operating the starting system.

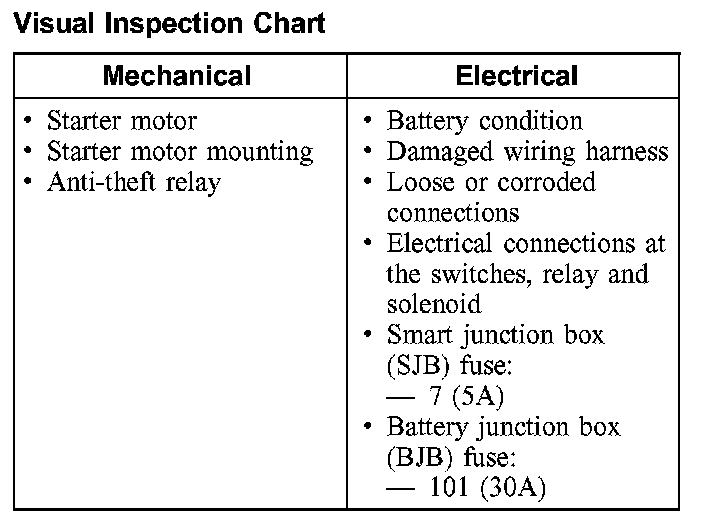

Visual Inspection Chart:
2. Visually inspect for obvious signs of mechanical and electrical damage. Refer to the chart.
3. If the concern is not visually evident, verify the symptom. GO to Symptom Chart. Symptom Related Diagnostic Procedures
