2006 Lincoln Navigator 4WD V8-5.4L VIN 5FACTORY OEM SERVICE PROCEDURE

Tests DL: Cylinder Head Temperature (CHT) Sensor



PINPOINT TEST DL: CYLINDER HEAD TEMPERATURE (CHT) SENSOR

This pinpoint test is intended to diagnose the following:

^ cylinder head temperature (CHT) sensor (6G004)
^ harness circuits: CHT VREF and SIGRTN
^ powertrain control module ( PCM) (12A650)

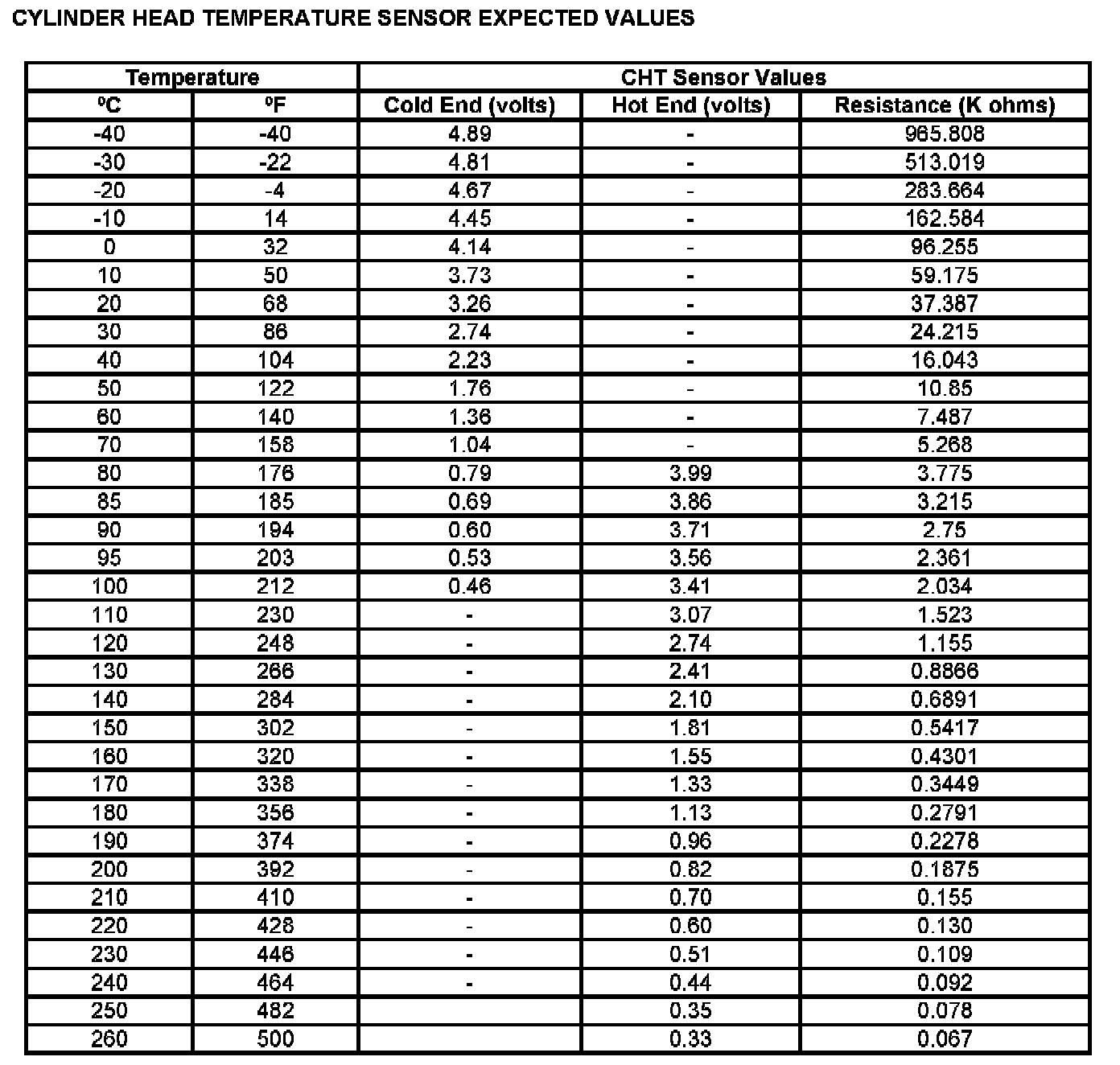

On applications that do not use an ECT sensor the CHT sensor is used to determine the engine coolant temperature. To cover the entire temperature range of both the CHT and ECT sensors the PCM has a dual switching resistor circuit on the CHT input. A graph showing the temperature switching from the COLD END line to the HOT END line with increasing temperature and back with decreasing temperature is included. Note the temperature to voltage overlap zone. Within this zone it is possible to have either a COLD END or HOT END voltage at the same temperature. For example at 90°C (194°F) the voltage could read either 0.60 volt or 3.71 volts. Refer to the table for the temperature to voltage expected values.

Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.

Reference:

Factory service manual diagram




Reference:

Factory service manual diagram




Reference:

Factory service manual diagram




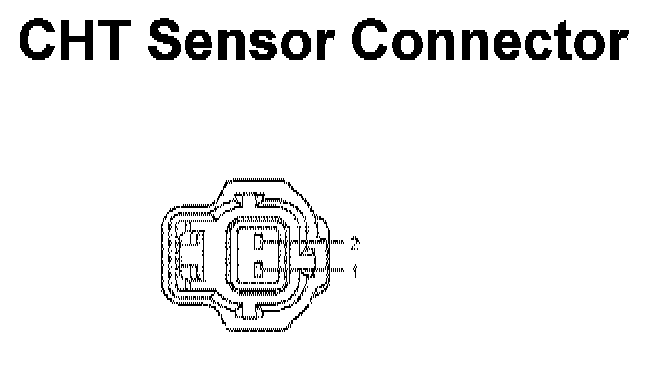

Reference:

Factory service manual diagram




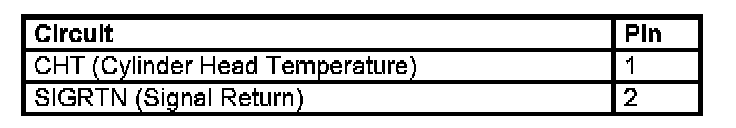

Reference:

Factory service manual diagram

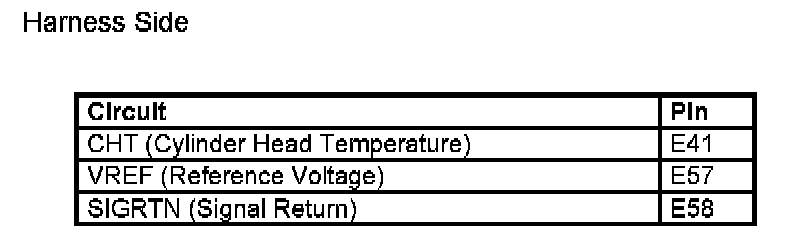

PCM Connector

Reference:

Factory service manual diagram

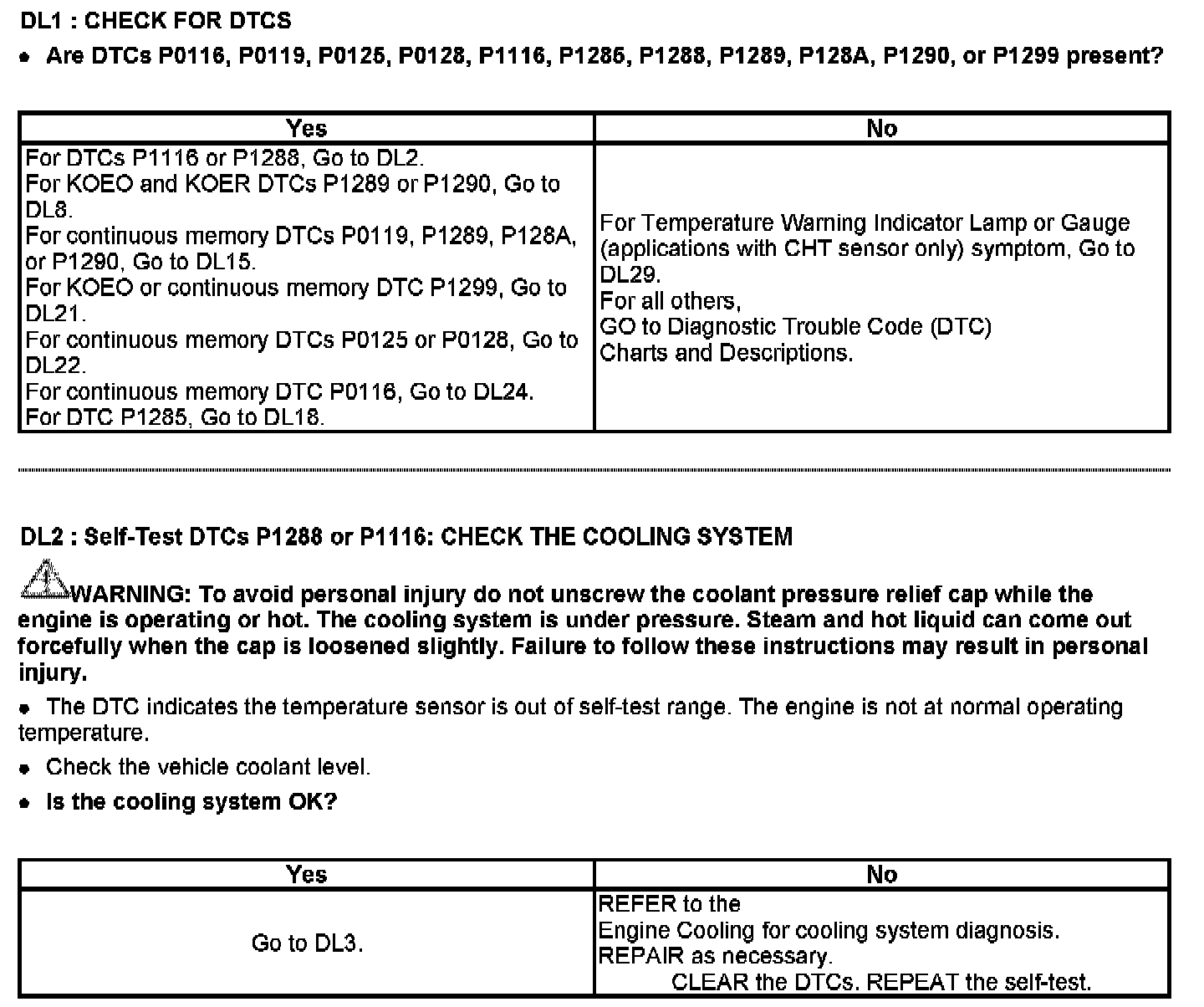

DL1 - DL2:

Factory service manual diagram

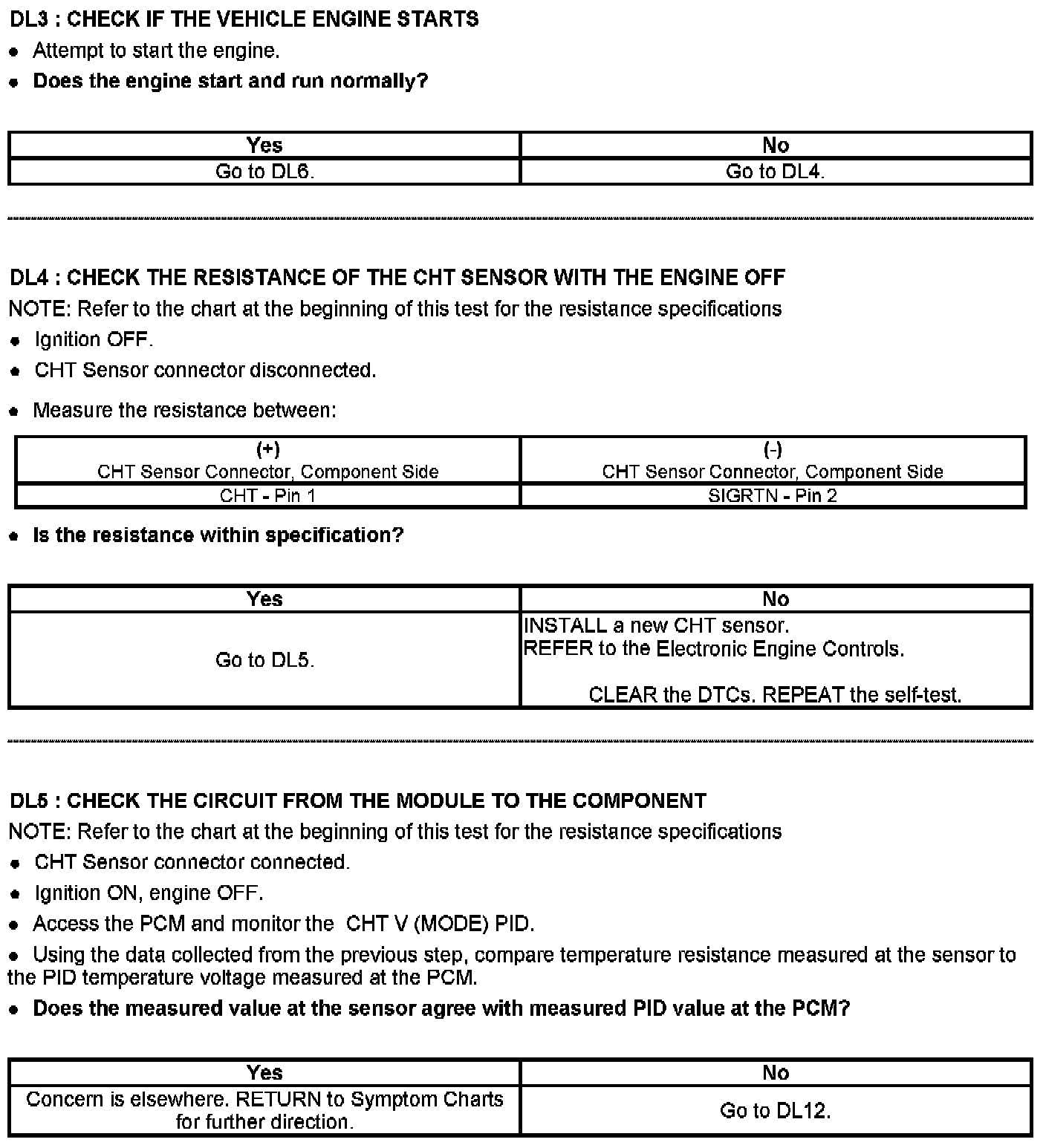

DL3 - DL5:

Factory service manual diagram

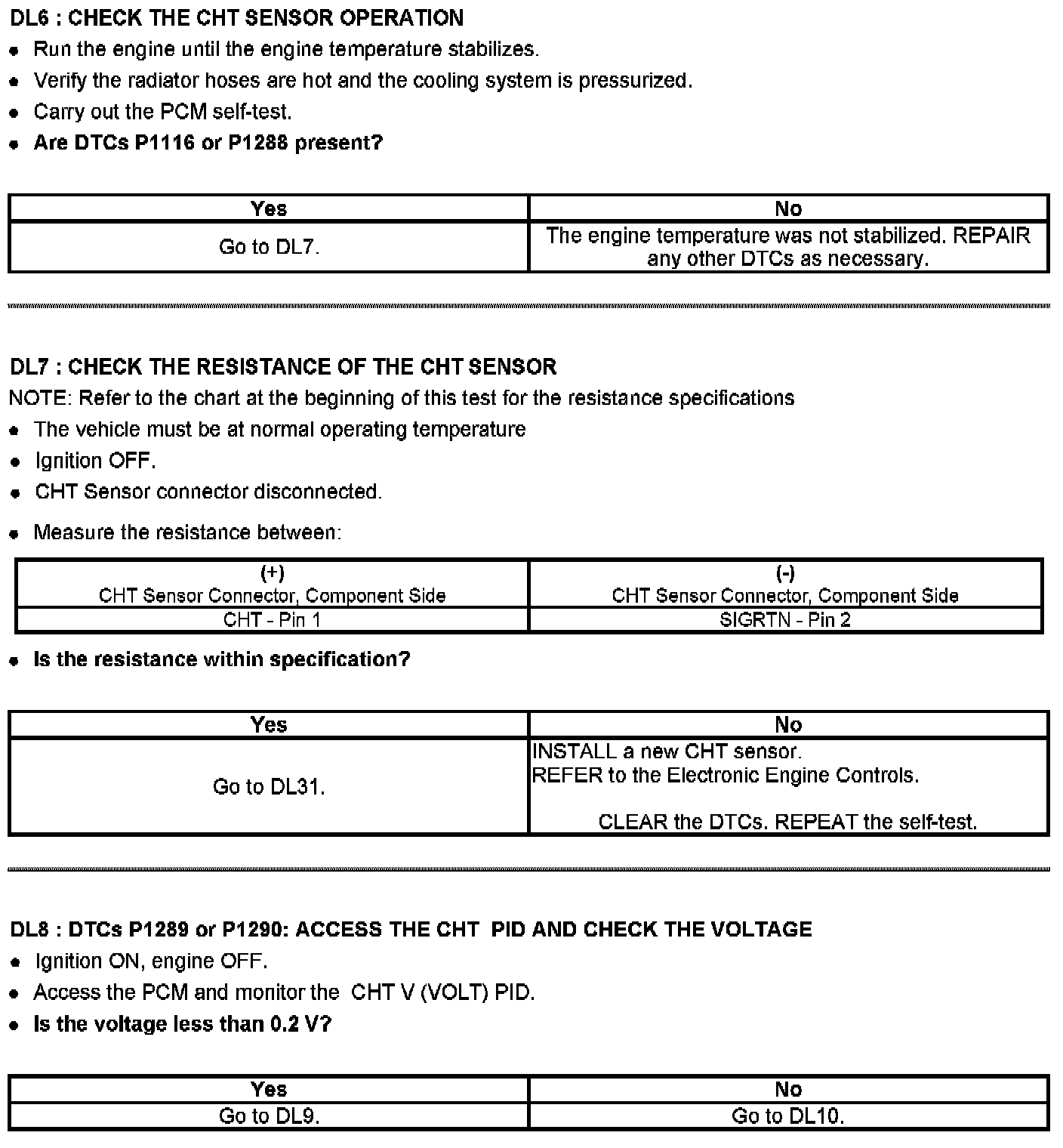

DL6 - DL8:

Factory service manual diagram




DL9 - DL10:

Factory service manual diagram




DL11 - DL12:

Factory service manual diagram

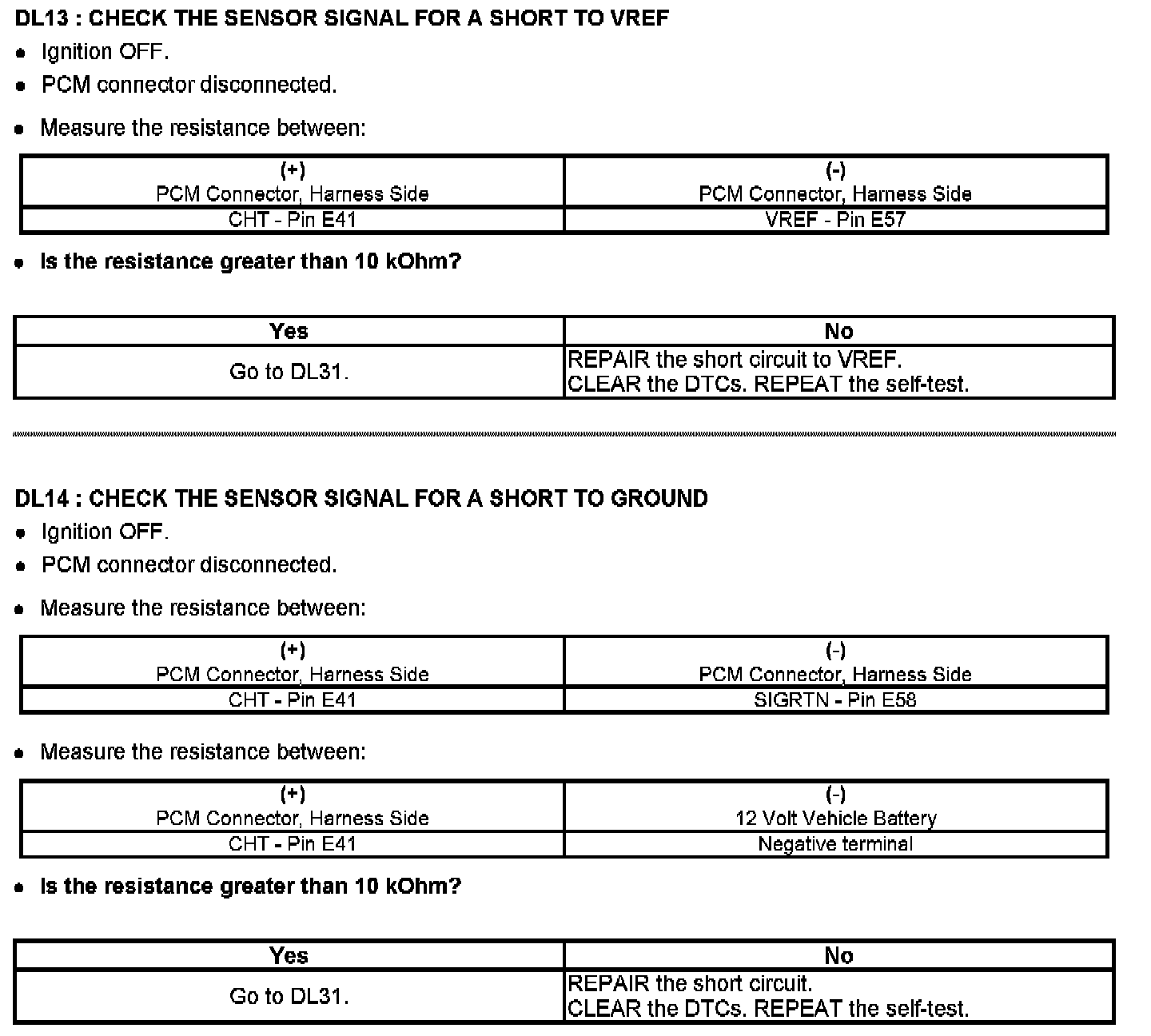

DL13 - DL14:

Factory service manual diagram




DL15 - DL17:

Factory service manual diagram

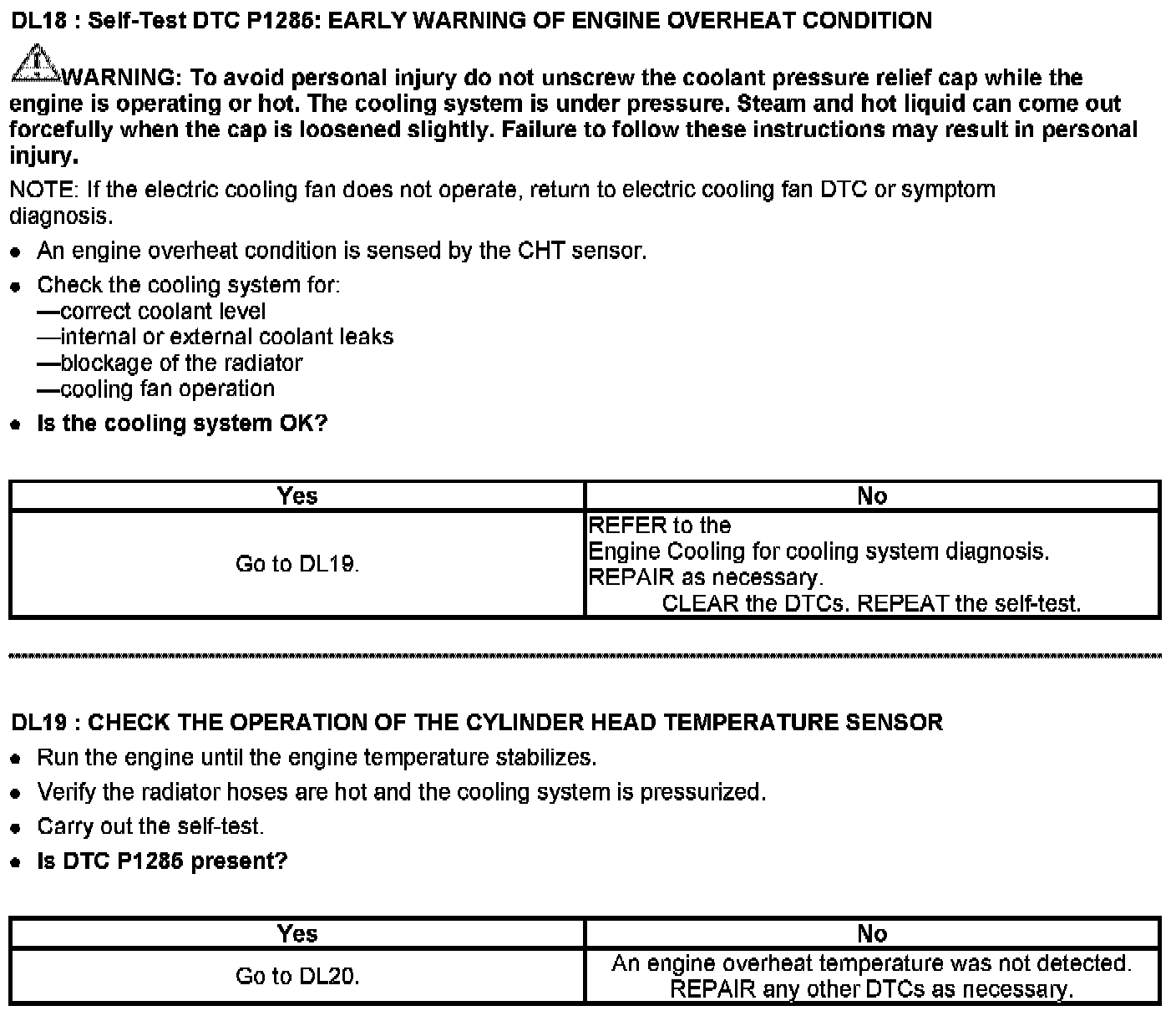

DL18 - DL19:

Factory service manual diagram




DL20 - DL21:

Factory service manual diagram




DL22 - DL23:

Factory service manual diagram

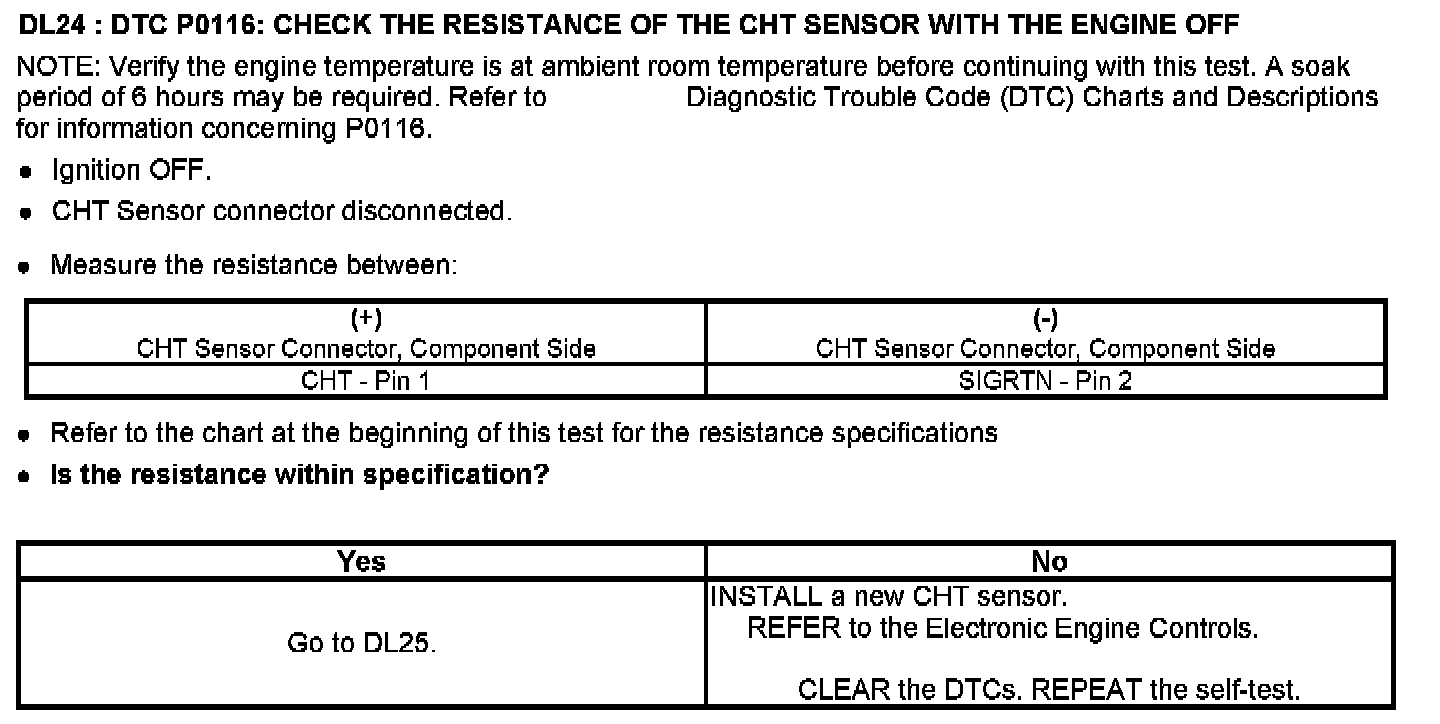

DL24:

Factory service manual diagram

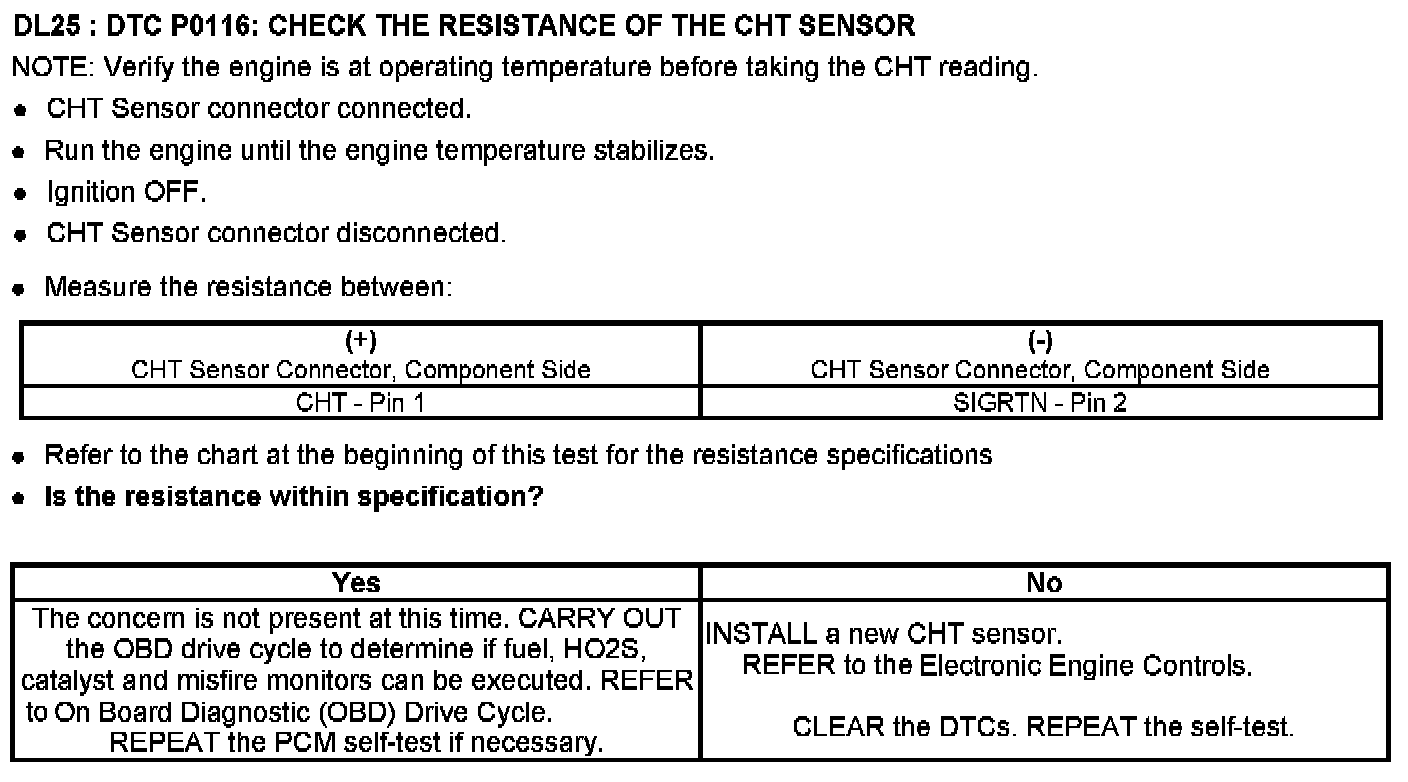

DL25:

Factory service manual diagram

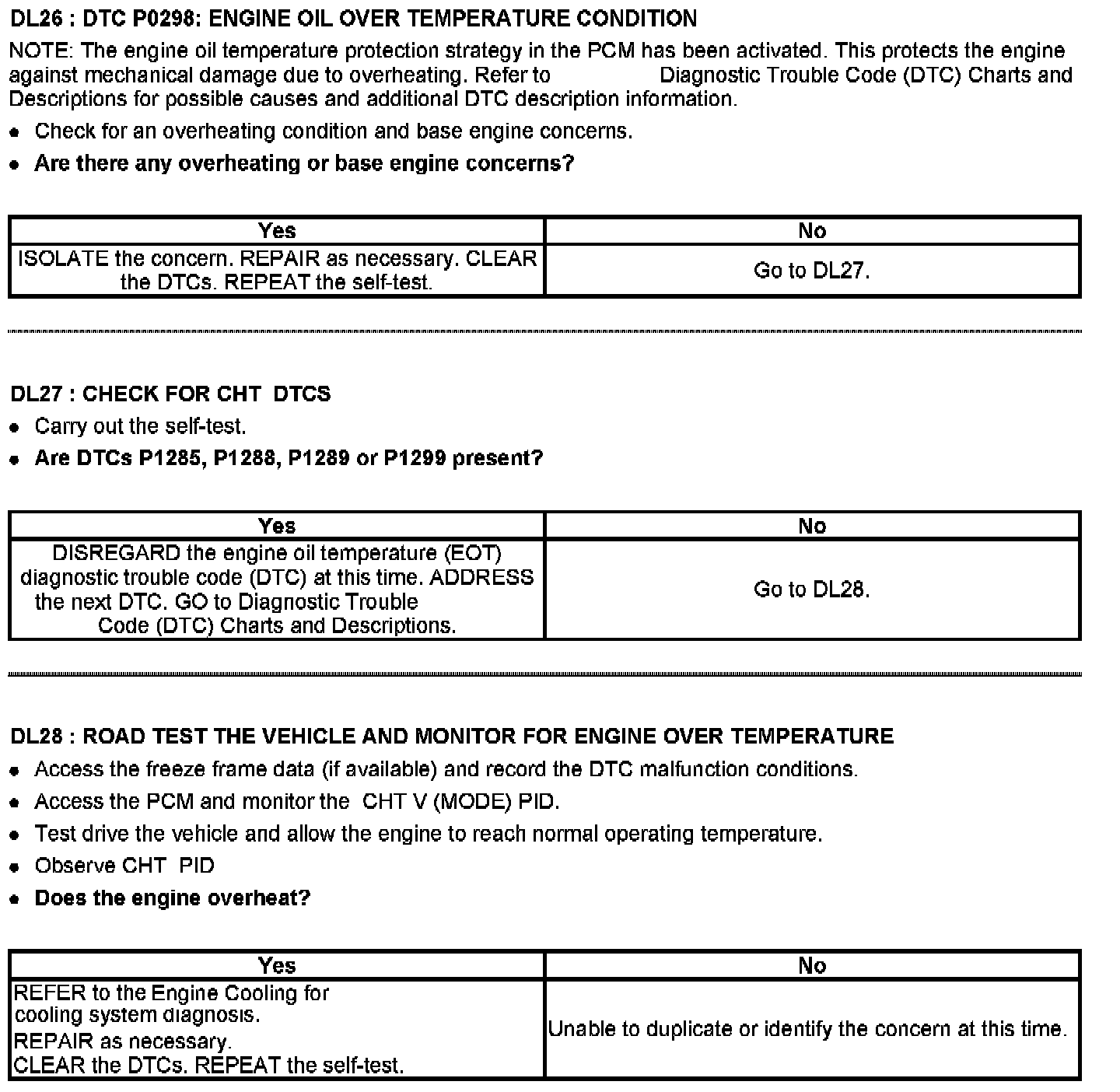

DL26 - DL28:

Factory service manual diagram

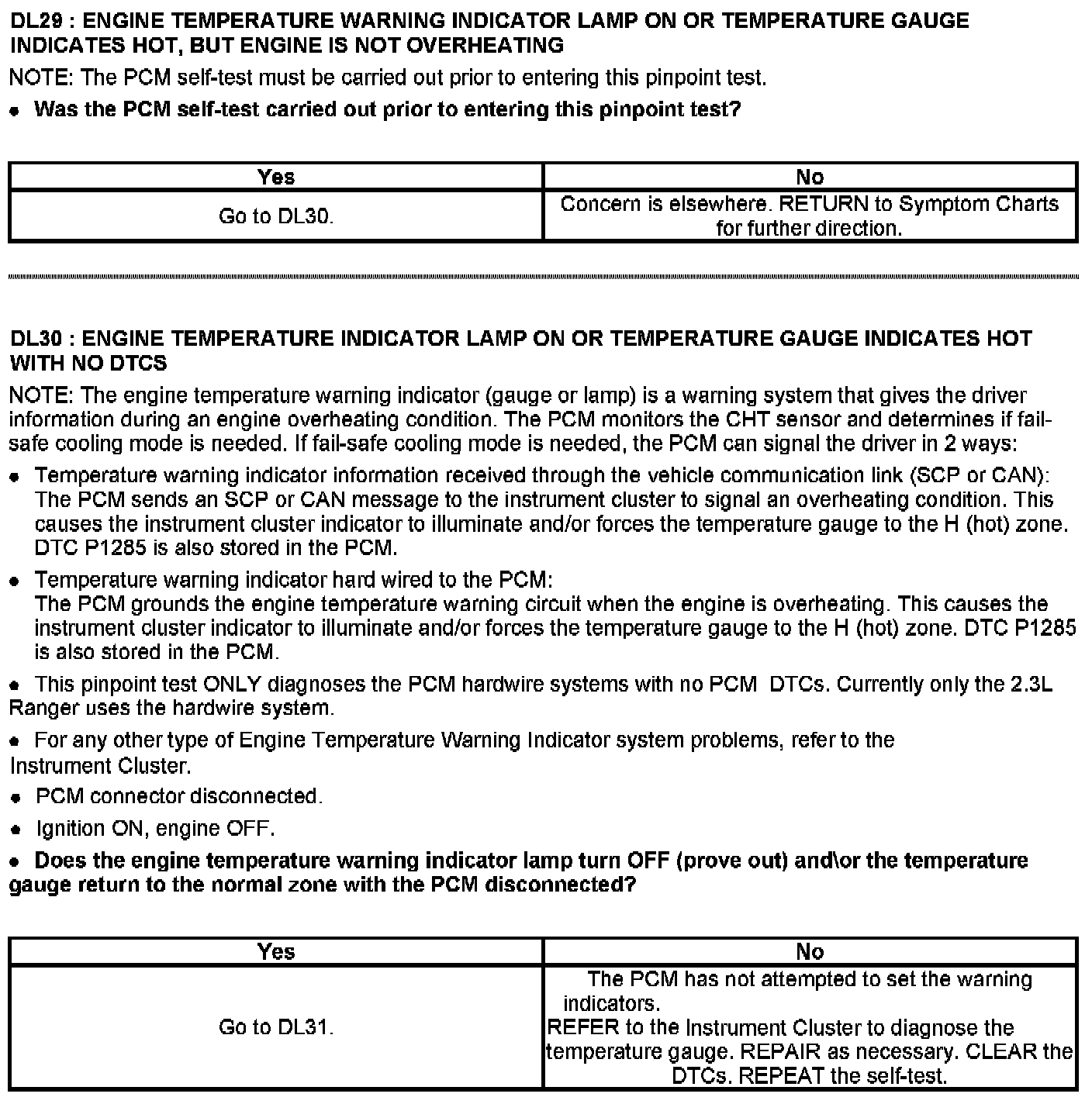

DL29 - DL30:

Factory service manual diagram

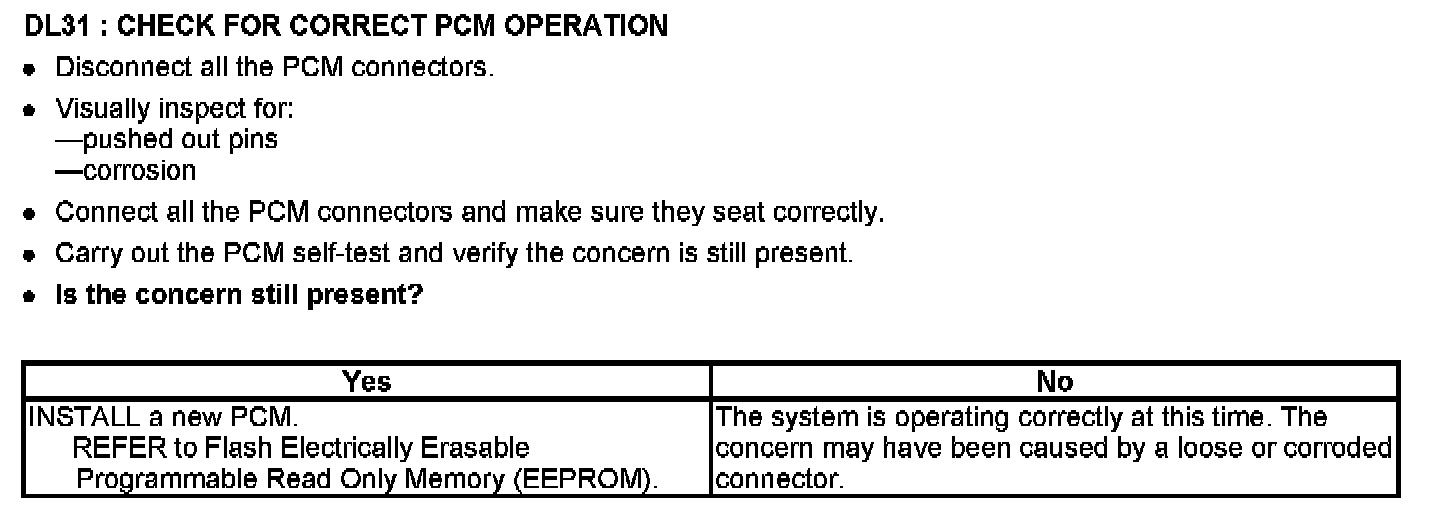

DL31:

Factory service manual diagram
