2006 Lincoln Navigator 4WD V8-5.4L VIN 5FACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
POWERTRAIN CONTROL MODULE (PCM)

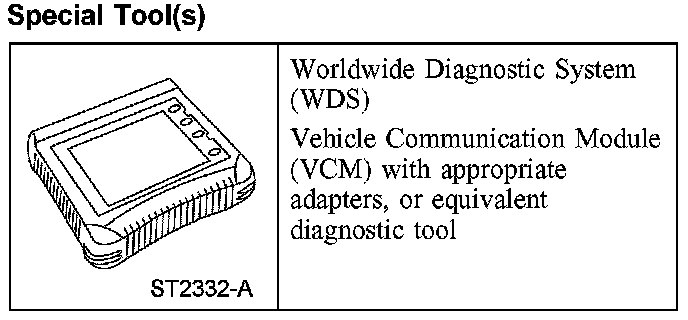

Special Tool(s)
Removal and Installation
1. NOTE: Refer to Computers and Control Systems for correct worldwide diagnostic system (WDS) hook-up procedure.
If servicing the powertrain control module (PCM), connect the diagnostic tool to the vehicle. Allow the diagnostic tool to identify the vehicle and obtain configuration data.
- All programmable module information will automatically be retrieved by the WDS.

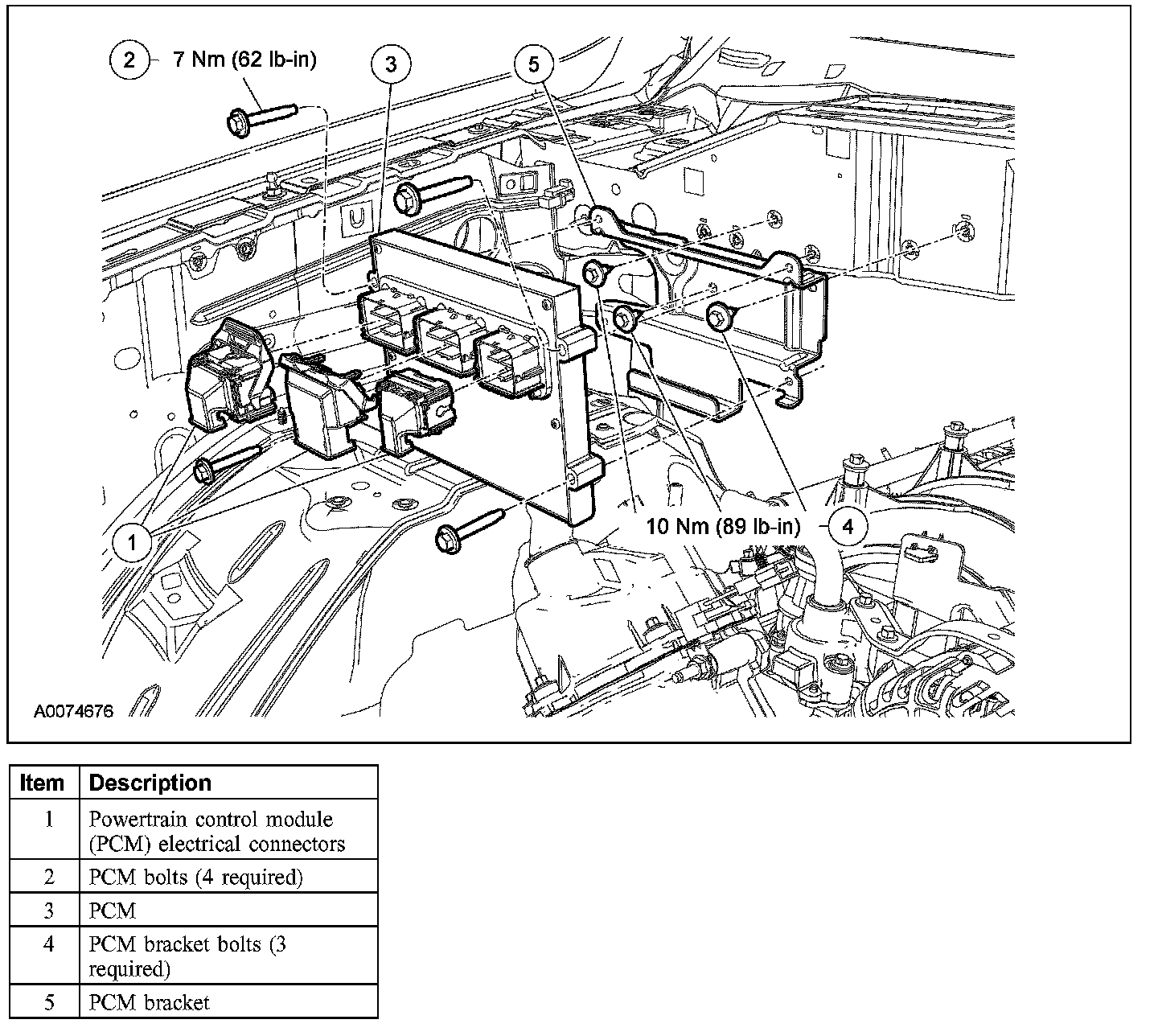

2. Disconnect the battery ground cable.
3. Disconnect the PCM electrical connectors.
4. Remove the 4 bolts and the PCM.
- To install, tighten to 7 Nm (62 lb-in).
5. If servicing the PCM bracket, remove the 3 bolts and the PCM bracket.
- To install, tighten to 10 Nm (89 lb-in).
6. To install, reverse the removal procedure.
Special Tool(s):
Special Tool(s)
Removal and Installation
1. NOTE: Refer to Computers and Control Systems for correct worldwide diagnostic system (WDS) hook-up procedure.
If servicing the powertrain control module (PCM), connect the diagnostic tool to the vehicle. Allow the diagnostic tool to identify the vehicle and obtain configuration data.
- All programmable module information will automatically be retrieved by the WDS.
2. Disconnect the battery ground cable.
3. Disconnect the PCM electrical connectors.
4. Remove the 4 bolts and the PCM.
- To install, tighten to 7 Nm (62 lb-in).
5. If servicing the PCM bracket, remove the 3 bolts and the PCM bracket.
- To install, tighten to 10 Nm (89 lb-in).
6. To install, reverse the removal procedure.
