2006 Lincoln Navigator 4WD V8-5.4L VIN 5FACTORY OEM SERVICE PROCEDURE
Blower Motor: Service and Repair

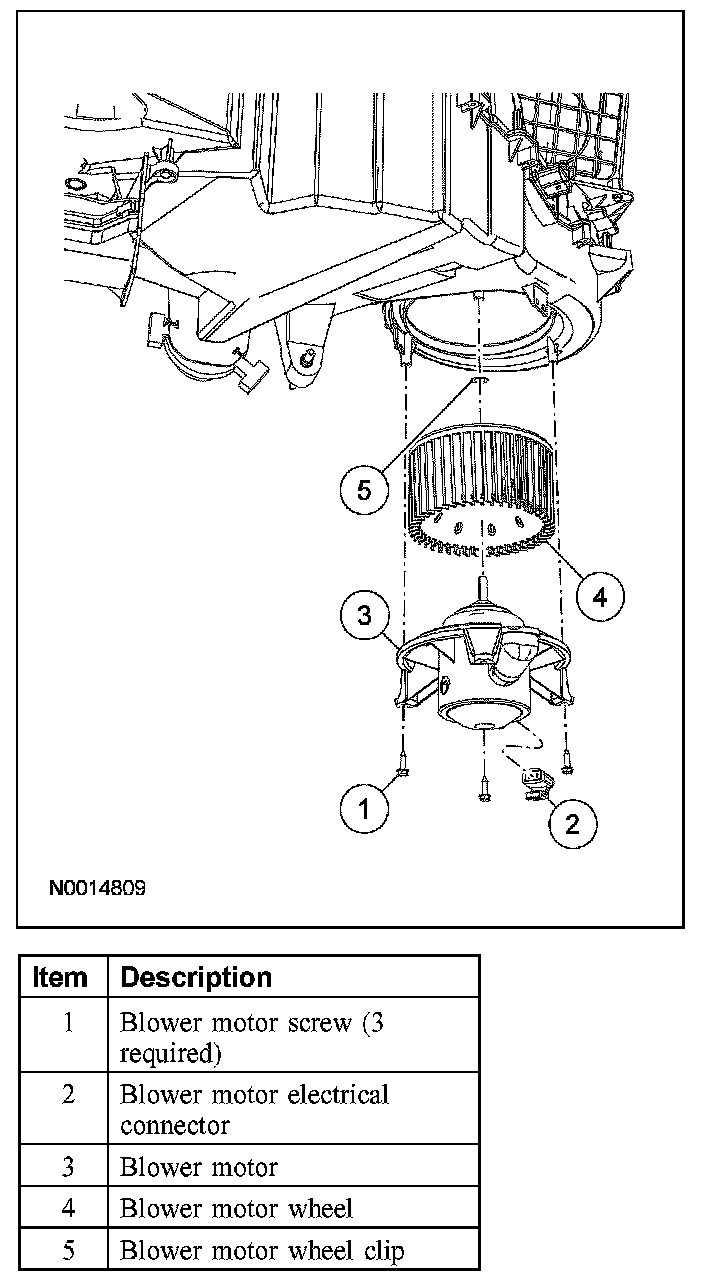

BLOWER MOTOR
Removal and Installation
All vehicles
1. Remove the RH lower instrument panel insulator.
Navigator only

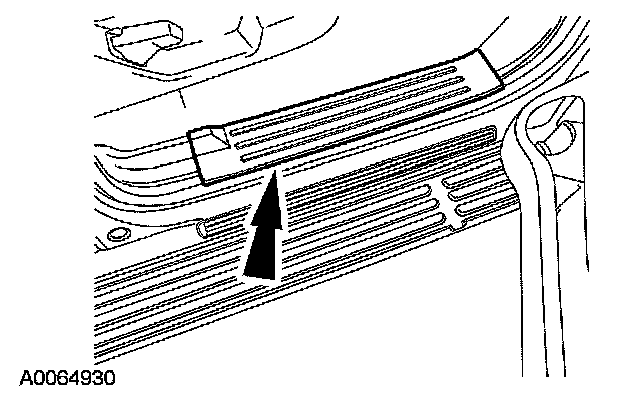

2. Remove the RH scuff plate.
Expedition only
3. Remove the RH scuff plate.
4. Remove the RH lower A-pillar trim panel.
All vehicles
5. Position aside the carpet below the blower motor.
6. Disconnect the blower motor electrical connector.
7. Remove the 3 blower motor screws.
8. Remove the blower motor.
9. Remove the blower motor wheel clip.
10. Remove the blower motor wheel.
11. To install, reverse the removal procedure.
Removal and Installation
All vehicles
1. Remove the RH lower instrument panel insulator.
Navigator only
2. Remove the RH scuff plate.
Expedition only
3. Remove the RH scuff plate.
4. Remove the RH lower A-pillar trim panel.
All vehicles
5. Position aside the carpet below the blower motor.
6. Disconnect the blower motor electrical connector.
7. Remove the 3 blower motor screws.
8. Remove the blower motor.
9. Remove the blower motor wheel clip.
10. Remove the blower motor wheel.
11. To install, reverse the removal procedure.
