2006 Lincoln Navigator 4WD V8-5.4L VIN 5FACTORY OEM SERVICE PROCEDURE
Cylinder Block Assembly: Service and Repair
Cylinder Bore-Taper

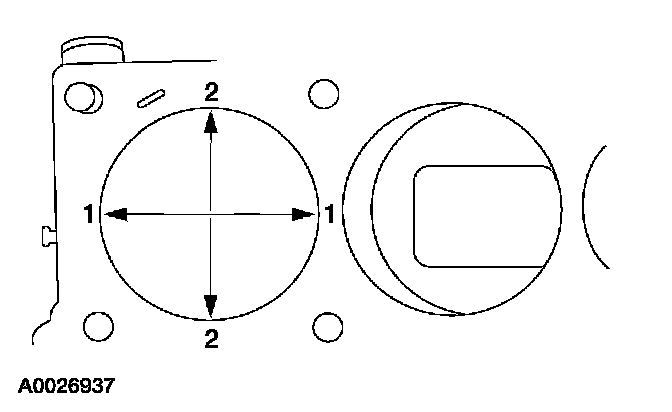

1. Measure the cylinder bore at the top, middle and bottom of piston ring travel in two directions as indicated. Verify the cylinder bore is within the wear limit. The difference indicates the cylinder bore taper. Bore the cylinder to the next oversize.
Cylinder Bore-Out-of-Round

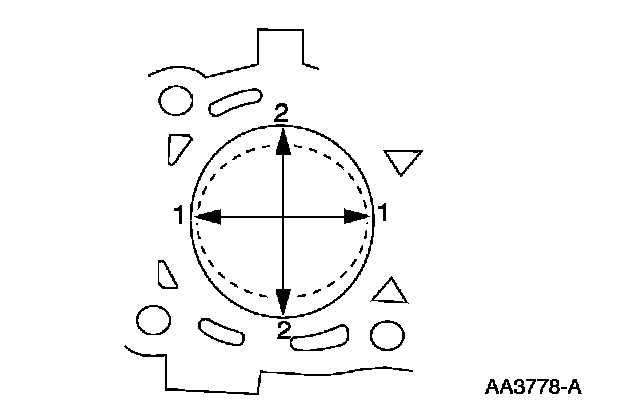

1. Measure the cylinder bore in two directions. The difference is the out-of-round. Verify the out-of-round is within the wear limit and bore the cylinder to the next oversize limit.
Cylinder Bore-Cleaning
1. CAUTION: If these procedures are not followed, rusting of the cylinder bores may occur.
Clean the cylinder bores with soap or detergent and water.
2. Thoroughly rinse with clean water and wipe dry with a clean, lint-free cloth.
3. Use a clean, lint-free cloth and lubricate the cylinder bores.
^ Use clean engine oil meeting Ford specification.
1. Measure the cylinder bore at the top, middle and bottom of piston ring travel in two directions as indicated. Verify the cylinder bore is within the wear limit. The difference indicates the cylinder bore taper. Bore the cylinder to the next oversize.
Cylinder Bore-Out-of-Round
1. Measure the cylinder bore in two directions. The difference is the out-of-round. Verify the out-of-round is within the wear limit and bore the cylinder to the next oversize limit.
Cylinder Bore-Cleaning
1. CAUTION: If these procedures are not followed, rusting of the cylinder bores may occur.
Clean the cylinder bores with soap or detergent and water.
2. Thoroughly rinse with clean water and wipe dry with a clean, lint-free cloth.
3. Use a clean, lint-free cloth and lubricate the cylinder bores.
^ Use clean engine oil meeting Ford specification.
