2006 Lincoln LSFACTORY OEM SERVICE PROCEDURE

Reverse Servo Assembly: Disassembly

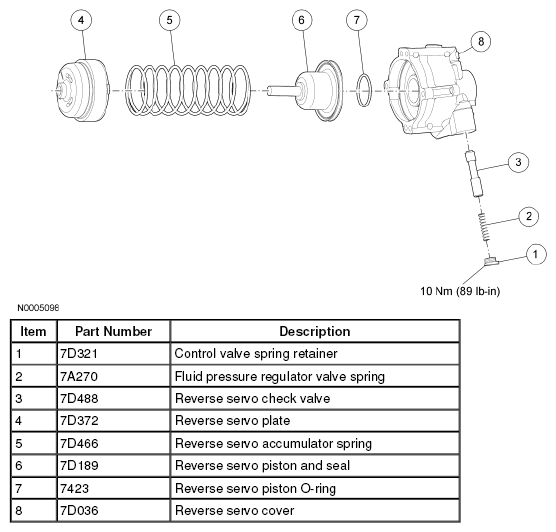

Fig 1: Exploded View Of Reverse Servo Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Remove the control valve spring retainer.

Fig 2: Locating Control Valve Spring Retainer
Courtesy of FORD MOTOR CO.
Remove the reverse servo spring and check valve.

Fig 3: Locating Reverse Servo Spring And Check Valve
Courtesy of FORD MOTOR CO.

WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions can result in personal injury.
