2006 Lincoln LSFACTORY OEM SERVICE PROCEDURE

Automatic Transaxle-Transmission: Assembly: Transmission

SPECIAL TOOL CHART

G04691559Courtesy of FORD MOTOR CO.
 Adjustment Set, Transmission Band
307-S022 (T71P-77370-A)
G04691560Courtesy of FORD MOTOR CO.
 Holding Fixture, Transmission
307-003 (T57L-500-B)
G04691561Courtesy of FORD MOTOR CO.
 Depth Micrometer
303-D026 (D80P-4201-A) or equivalent
G04691562Courtesy of FORD MOTOR CO.
 Alignment Gauge, TR Sensor
307-351 (T97L-70010-A)
G04691563Courtesy of FORD MOTOR CO.
 Installer, Transmission Extension Housing Oil Seal
307-038 (T74P-77052-A)
G04691564Courtesy of FORD MOTOR CO.
 Sizer, Piston Seal
307-338 (T95L-70010-G)
G04691565Courtesy of FORD MOTOR CO.
 Alignment Set, Fluid Pump
307-S039 (T74P-77103-X)
G04691566Courtesy of FORD MOTOR CO.
 Aligner, Fluid Pump Handle
307-431
G04691567Courtesy of FORD MOTOR CO.
 Aligner, Fluid Pump Pilot
307-432
G04691568Courtesy of FORD MOTOR CO.
 Gauge Bar
307-400
G04691569Courtesy of FORD MOTOR CO.
 Compressor, Servo Cover
307-402
G04691570Courtesy of FORD MOTOR CO.
 Installer, Shift Shaft Fluid Seal
307-050 (T74P-77498-A)
G04691571Courtesy of FORD MOTOR CO.
 Handle, Torque Converter
307-091 (T81P-7902-C)
G04691572Courtesy of FORD MOTOR CO.
 Compressor, Cushion Spring
307-401
G04691573Courtesy of FORD MOTOR CO.
 Aligner, Valve Body
307-334 (T95L-70010-C)
G04691574Courtesy of FORD MOTOR CO.
 Alignment Pins, Transmission Pump
307-399
G04691575Courtesy of FORD MOTOR CO.
 Aligner, Flex Plate
307-403
G04691576Courtesy of FORD MOTOR CO.
 Air Test Plate
307-433-01, 307-433-2, 307-433-3
G04691577Courtesy of FORD MOTOR CO.
 Installer, Drive Pinion flange
205-479
G04691578Courtesy of FORD MOTOR CO.
 Installer, Output Shaft Flange
307-404
MATERIAL CHART

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V
Multi-Purpose Grease XG-4 and/or XL-5 ESB-M1C93-B

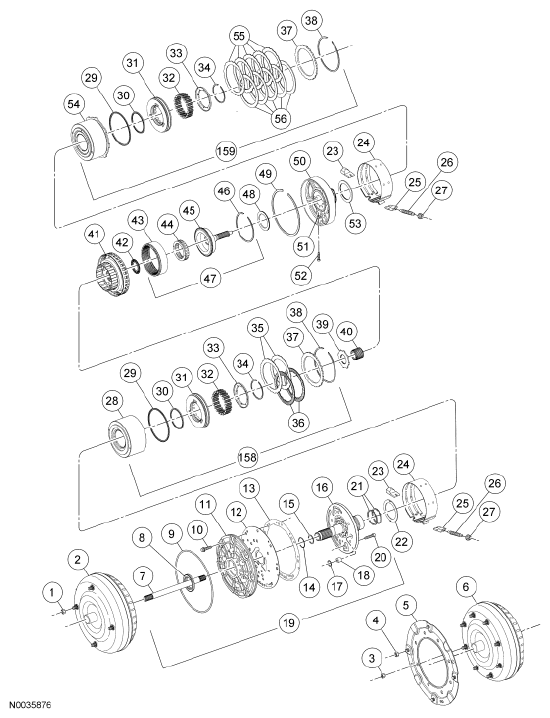

Fig 1: Exploded View Of Transmission Components (1 Of 3)
