2005 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE
Main Control Valve Body: Installation

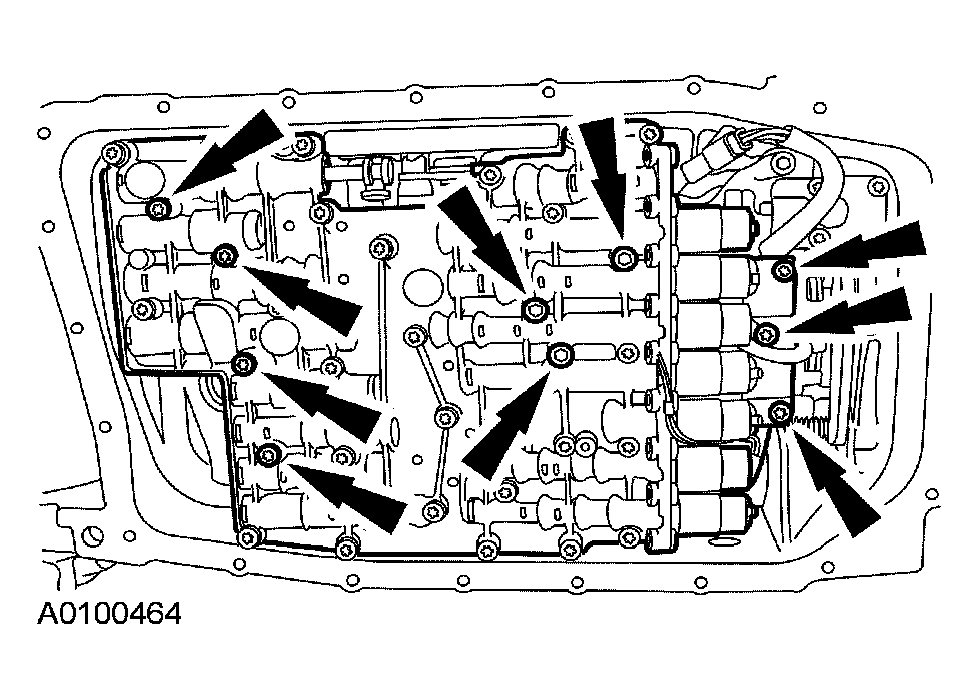

- Position the mechatronic assembly in place and loosely install the 10 retaining bolts.

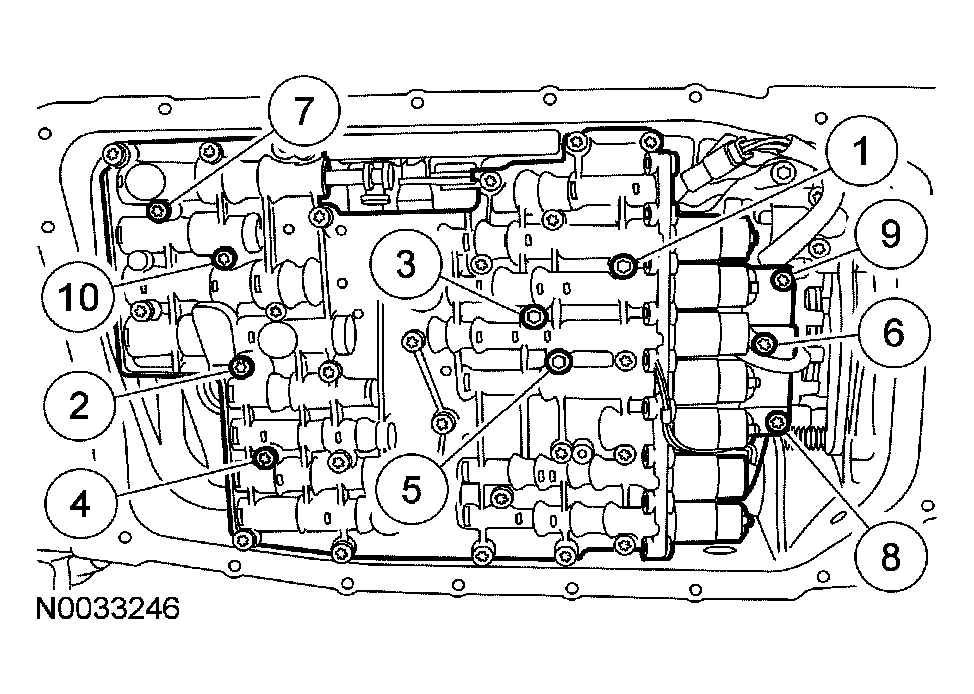

- Tighten the mechatronic bolts in the sequence shown.
- Tighten to 8 Nm (71 lb-in).

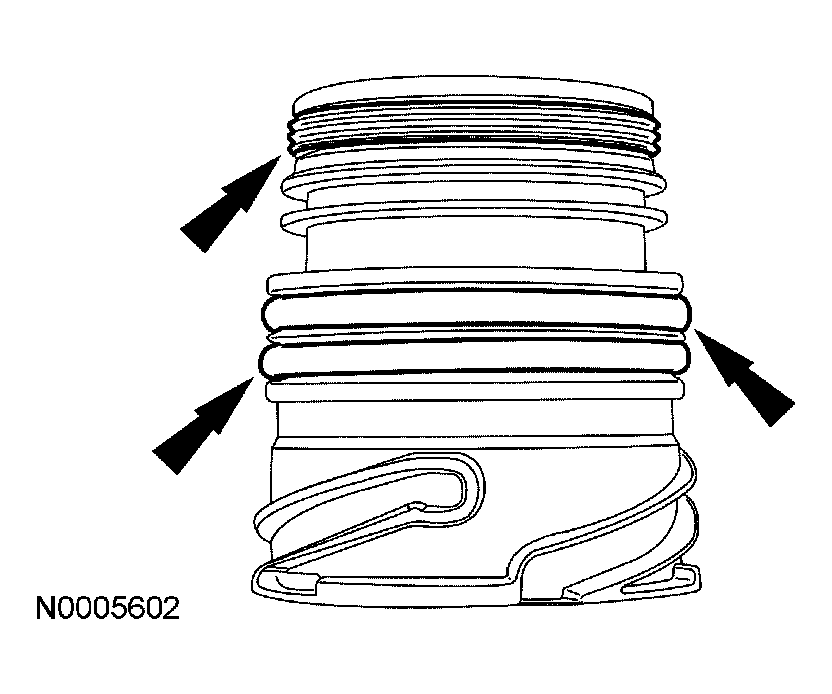

- Install new O-rings seals on the outer shell of the bulkhead electrical connector.
CAUTION:
Do not touch the electrical connector pins. Electrostatic charge may occur and will cause damage to the mechatronic unit.
