2005 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE
Pump Assembly: Disassembly

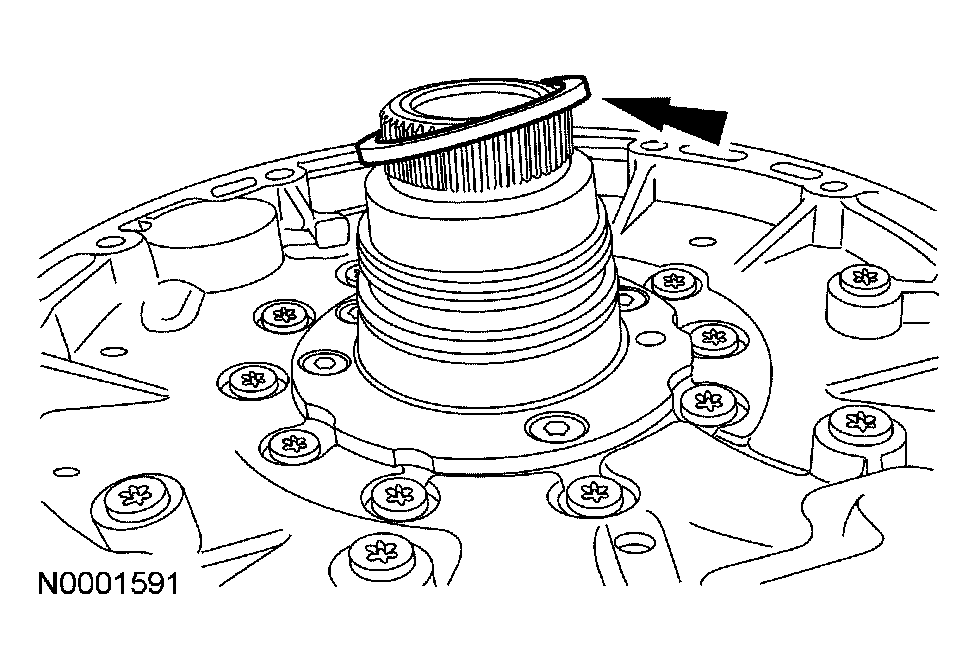

- Remove the front pump washer.

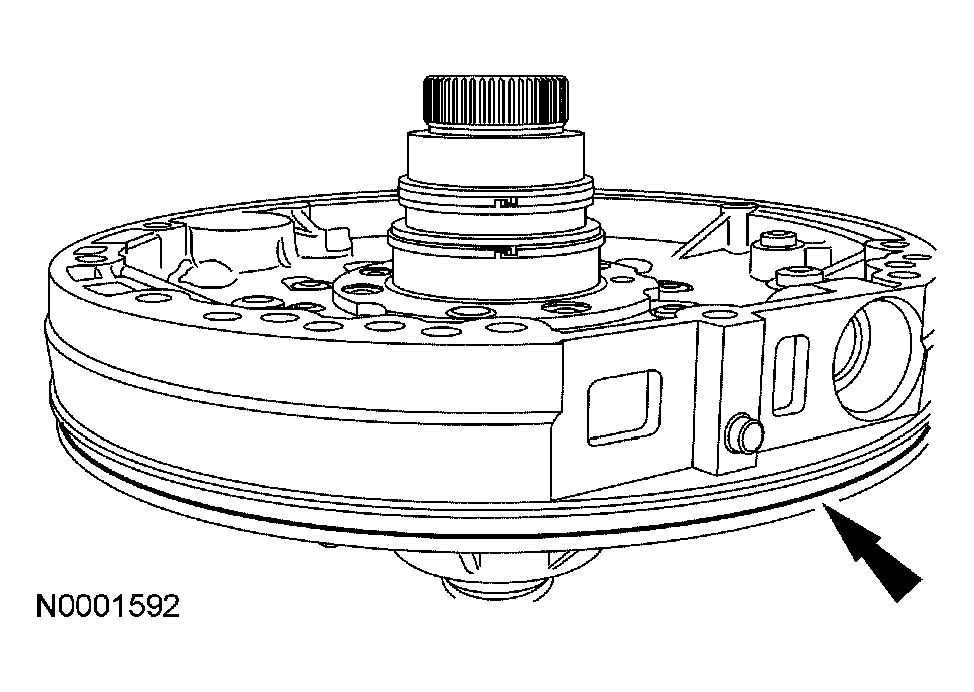

- Remove and discard the front pump O-ring seal.

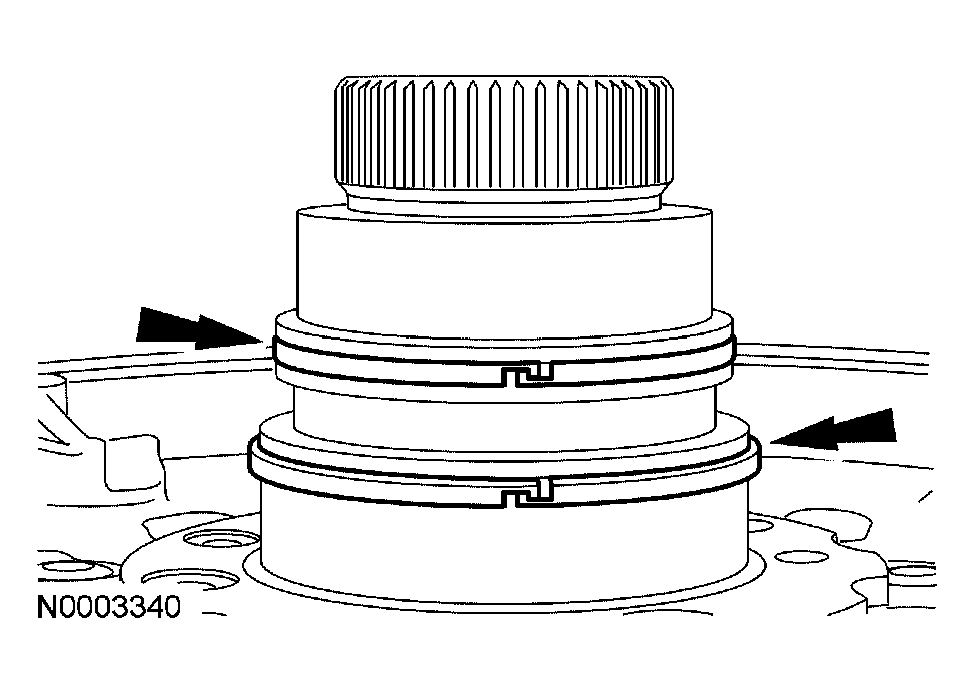

- Remove and discard the front pump seals.

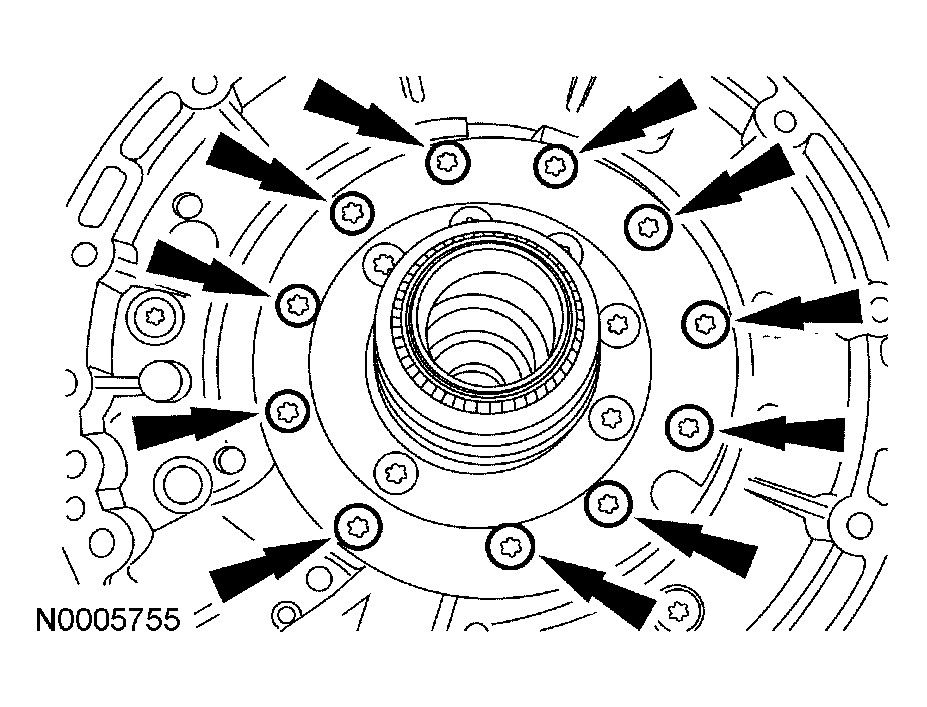

- Remove the 11 bolts and separate the pump control body from the pump body.

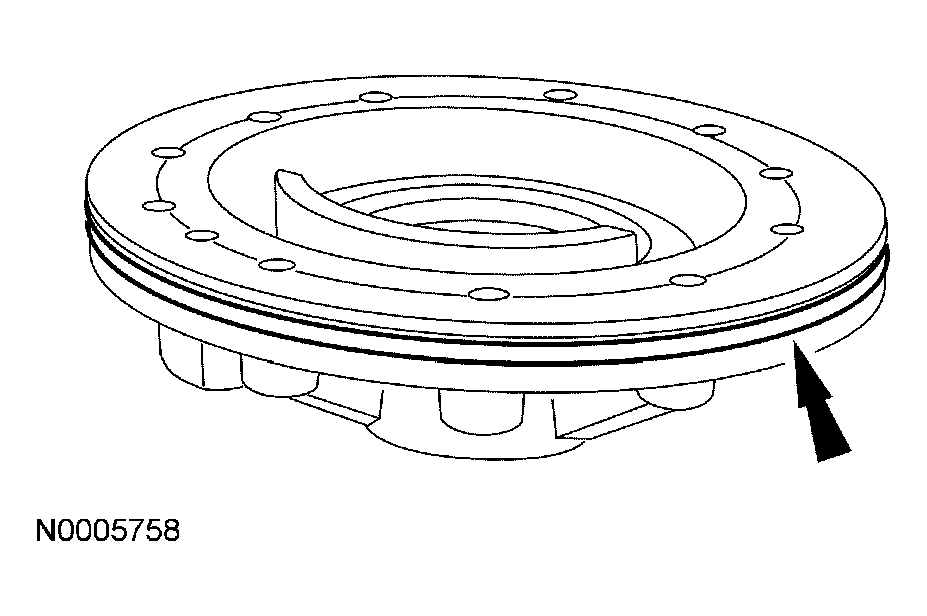

- Inspect the pump body outer seal for damage. If damage is indicated a new pump assembly will be required.

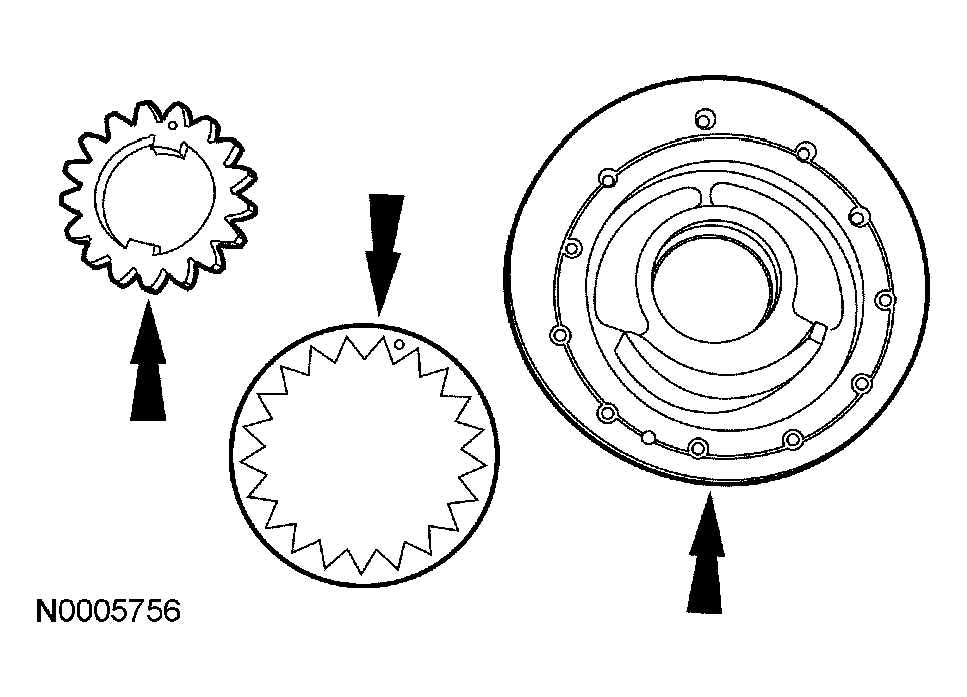

- Remove and inspect the inner and the outer pump gears.
- Clean all pump parts in solvent.
- Dry the parts with compressed air.
- Inspect the pump gears, faces, gear teeth, pump housing and mating surfaces for damage or scoring.
- Install a new pump if any of the parts are damaged or worn.
