2005 Lincoln LS 3.0 SFACTORY OEM SERVICE PROCEDURE
Safety Belt Shoulder Height Adjuster With Stripped Weld Nuts
SAFETY BELT SHOULDER HEIGHT ADJUSTER WITH STRIPPED WELD NUTS SPECIAL TOOL SPECIFICATION

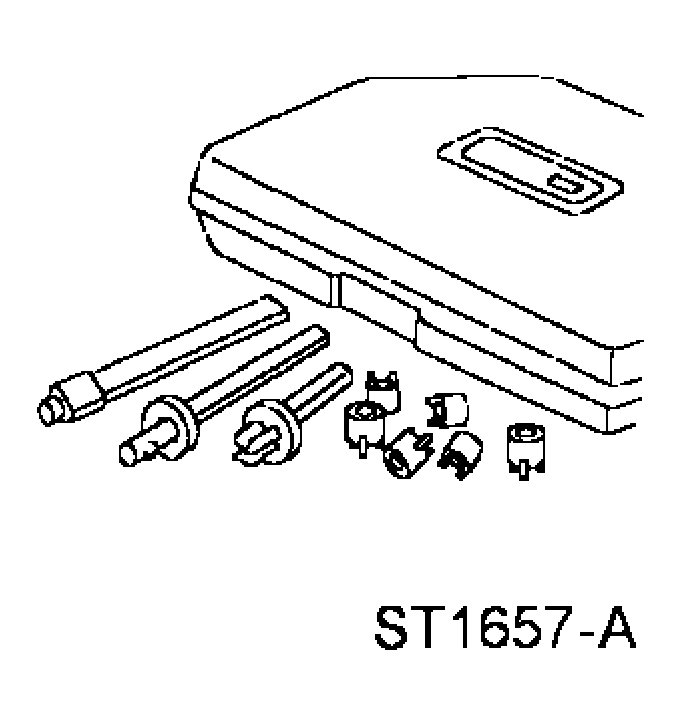

| D-Ring Installation Kit 100-F012 (134-00018) or equivalent | |

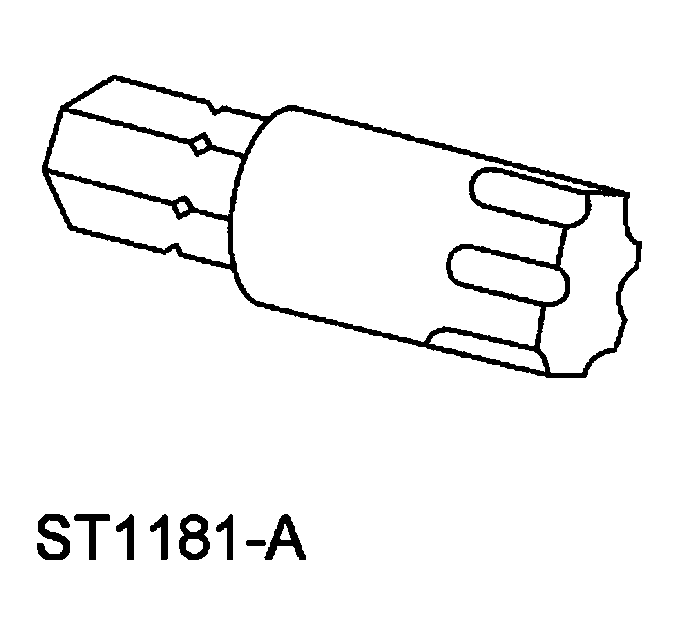

| Safety Belt Bolt Bit 501-010 (T77L-2100-A) or equivalent |
- Remove the shoulder safety belt height adjuster. For additional information, refer to SAFETY BELT SHOULDER HEIGHT ADJUSTER in this article.

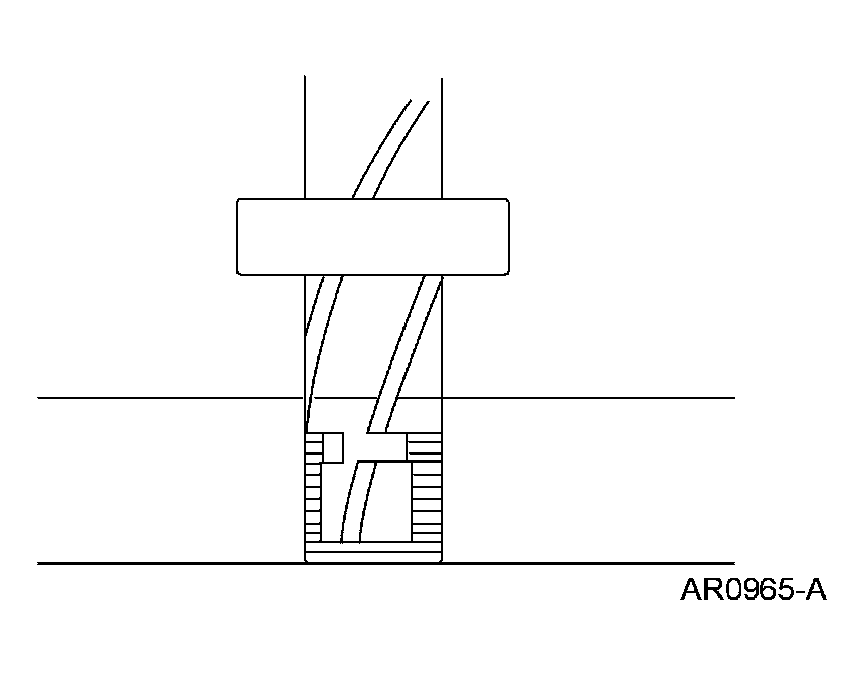

- Use the half-inch drill provided in the D-Ring Installation Kit to drill out the damaged threads in the upper pillar structure.
NOTE:
After each rotation, back off the tap slightly to remove the new cuttings and be sure to blow out any chips before proceeding.
