2005 Lincoln LS 3.0 SFACTORY OEM SERVICE PROCEDURE
Pump Assembly: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Alignment Pins, Transmission Main Control Body | 307-127 (T94P-77000-P) | |
| Depth Micrometer | 303-D026 (D80P-4201-A) | |
| Shim Selection Gauge | 307-300 (T94P-77000-Q) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

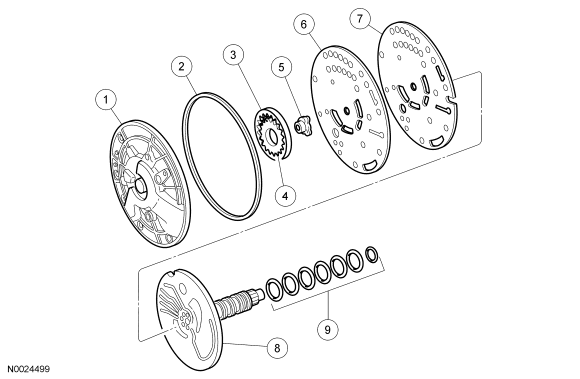

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F370 | Pump body - front |
| 2 | 7A248 | O-ring - pump seal |
| 3 | 7C011 | Driven gear - pump |
| 4 | 7C009 | Drive gear - pump |
| 5 | 7F402 | Drive gear insert - pump |
| 6 | 7A142-AA | Separator plate - pump body |
| 7 | 7G331-AA | Separator plate gasket - pump body |
| 8 | 7A108 | Pump support - front |
| 9 | - | Pump seals - front |
