2005 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE

Powertrain Control Module (PCM)

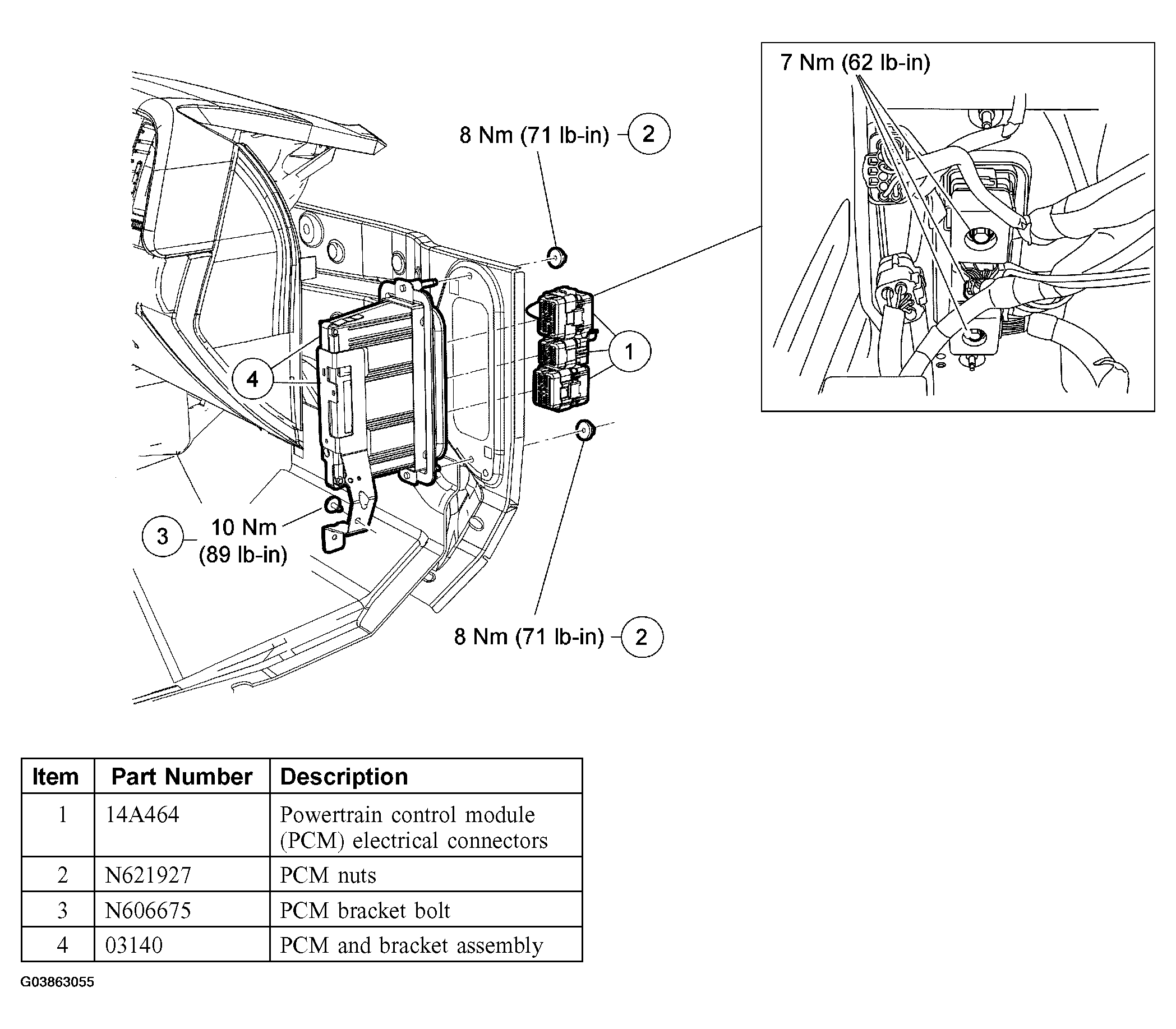

Fig 1: Locating Powertrain Control Module (PCM) (Torque Specs)
G03863055Courtesy of FORD MOTOR CO.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the RF door scuff plate.
  3. Remove the RH cowl side trim panel.
  4. Disconnect the powertrain control module (PCM) electrical connectors.
  5. Remove the PCM mounting nuts.
    • To install, tighten to 8 Nm (71 lb-in).
  6. Lower the glove box past the stops and disconnect the cable from the side of the glove box.

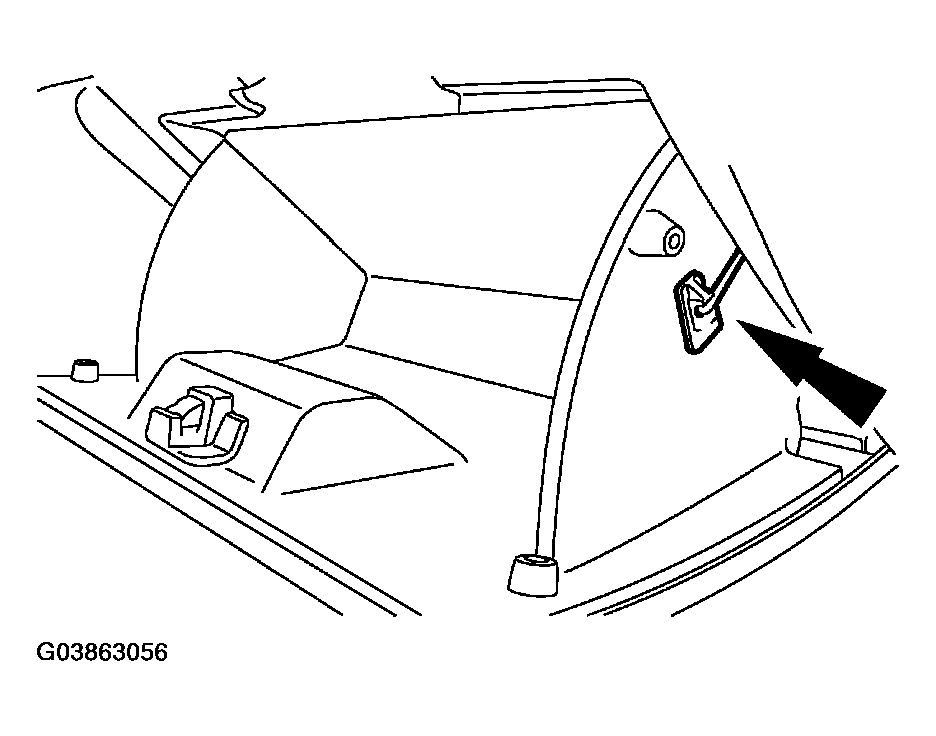

    Fig 2: Disconnecting Cable From Side Of Glove Box
    G03863056Courtesy of FORD MOTOR CO.
  7. Remove the PCM bracket bolt.
    • To install, tighten to 10 Nm (89 lb-in).
  8. Remove the pin-type retainer and position the sound deadening insulation upward.

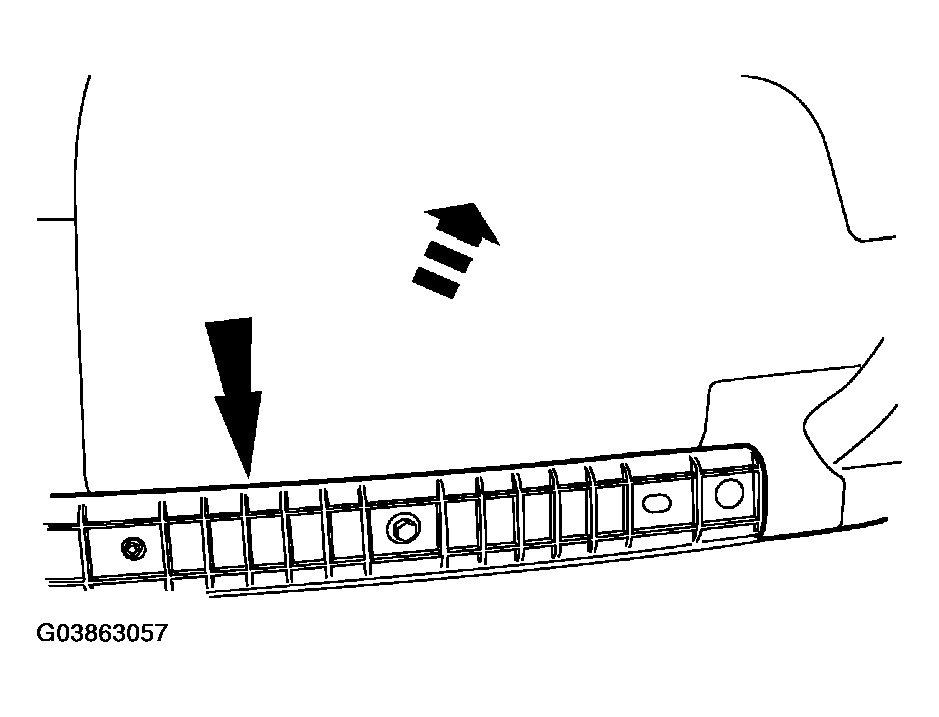

    Fig 3: Removing Pin-Type Retainer
    G03863057Courtesy of FORD MOTOR CO.
  9. Remove the lower screw for the fuel pump driver module and position back and disconnect the electrical connector.

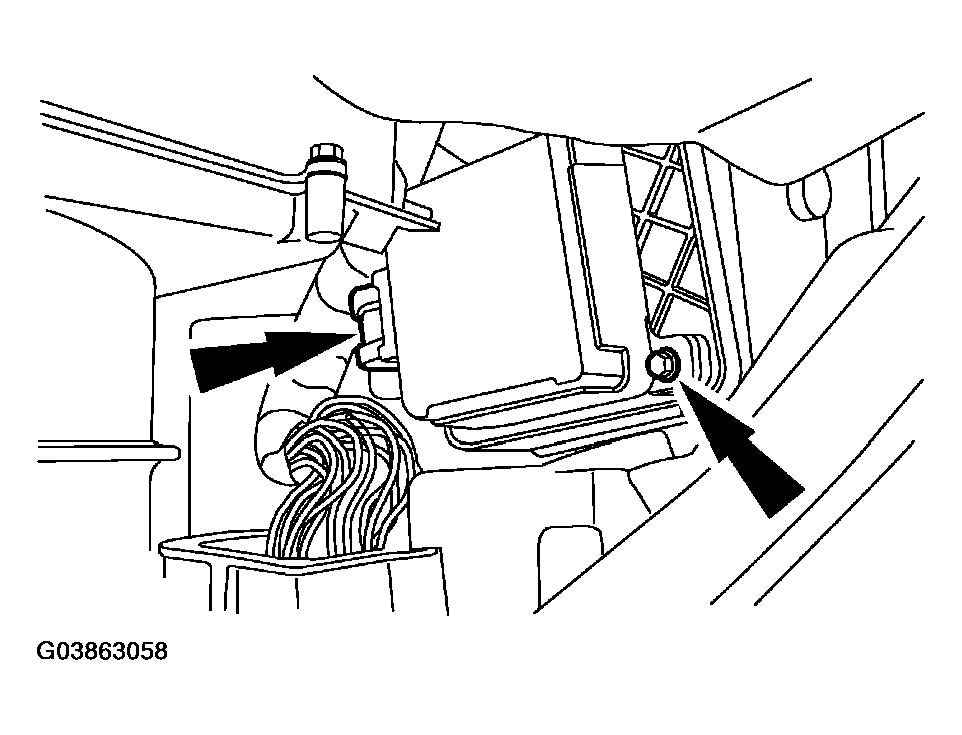

    Fig 4: Removing Lower Screw For Fuel Pump Driver Module
    G03863058Courtesy of FORD MOTOR CO.
  10. Remove the PCM and bracket as an assembly.
  11. To install, reverse the removal procedure.
