2004 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE

Pump Assembly: Assembly

Install the main regulator valve and sleeve assembly, converter clutch shift valve assembly, and the converter regulator valve assembly.
1. Install the converter clutch control valve assembly. Then apply pressure to the end plug and install the retainer, making sure it is correctly seated.
2. Install the converter regulator valve assembly. Then apply pressure to the end plug and install the retainer, making sure it is correctly seated.
3. Install the main regulator boost valve and sleeve assembly. Then apply pressure to the main regulator booster sleeve and install the retainer, making sure it is correctly seated.

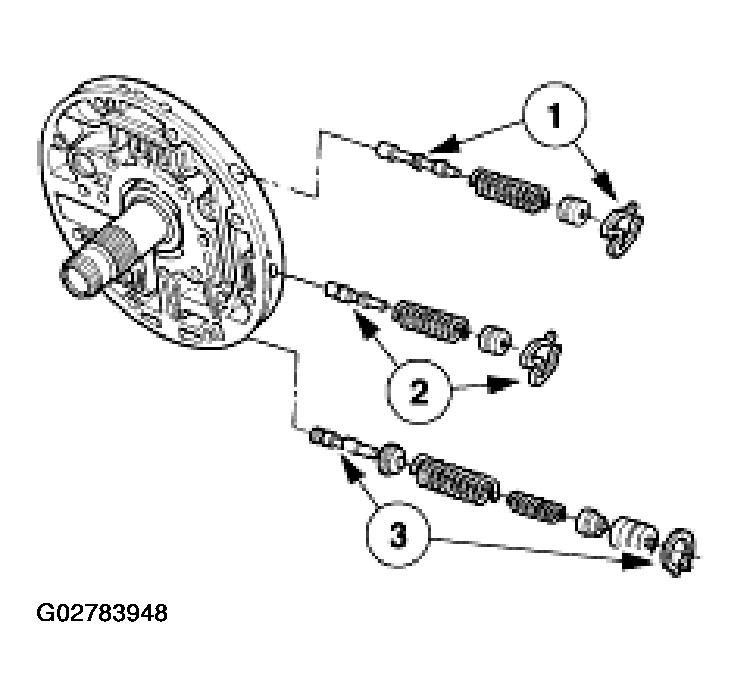

Fig 1: Installing Main Regulator Valve & Sleeve Assembly, Converter Clutch Shift Valve Assembly, & Converter Regulator Valve Assembly
Courtesy of FORD MOTOR CO.

NOTE: Prior to installation, lightly lubricate the gerotor gears with clean automatic transmission fluid.
