2004 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE

Input Shell: Disassembly

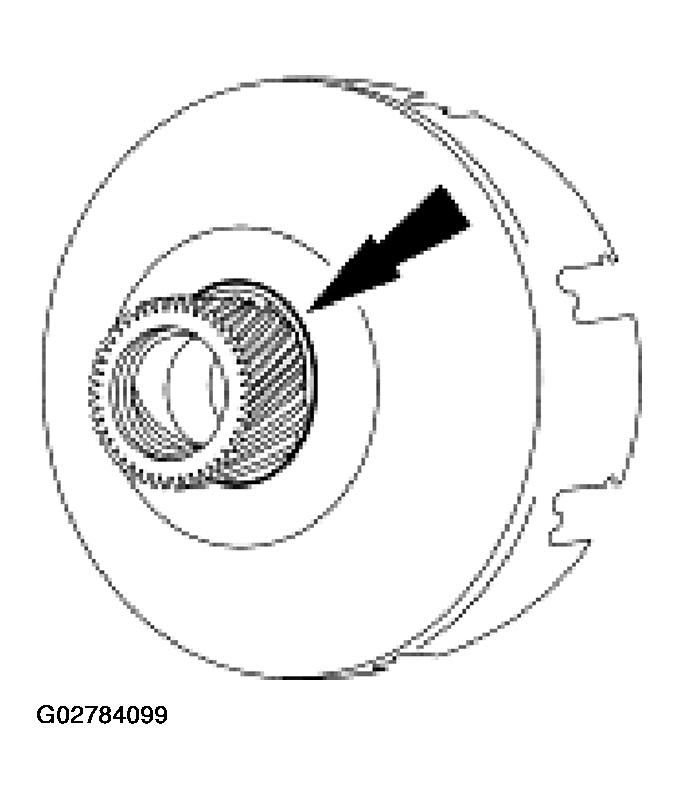

Remove and discard the forward/reverse sun gear retaining ring.

Fig 1: Removing Forward/Reverse Sun Gear Retaining Ring
Courtesy of FORD MOTOR CO.

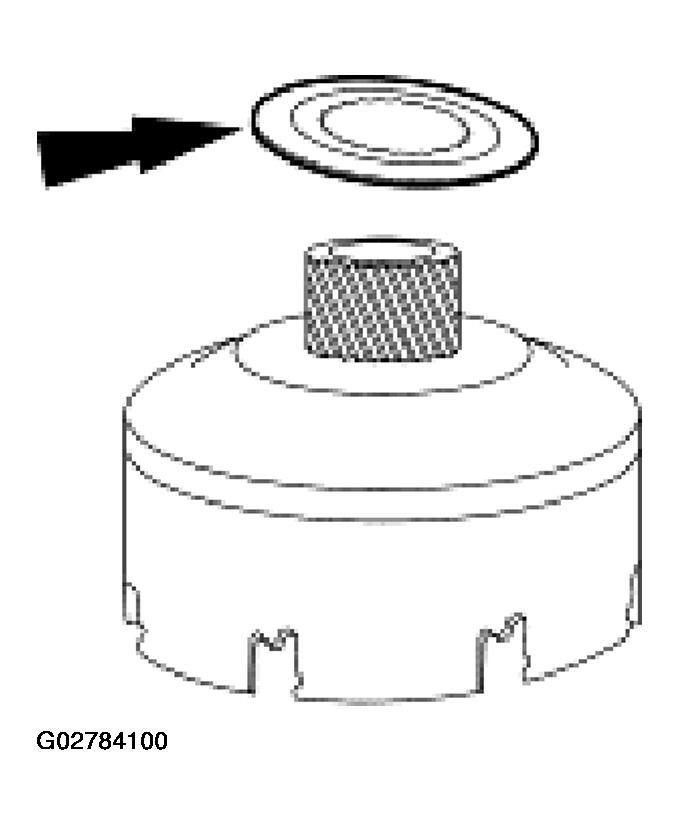

Remove the No. 14 input shell thrust washer.

Fig 2: Removing No. 14 Input Shell Thrust Washer
Courtesy of FORD MOTOR CO.

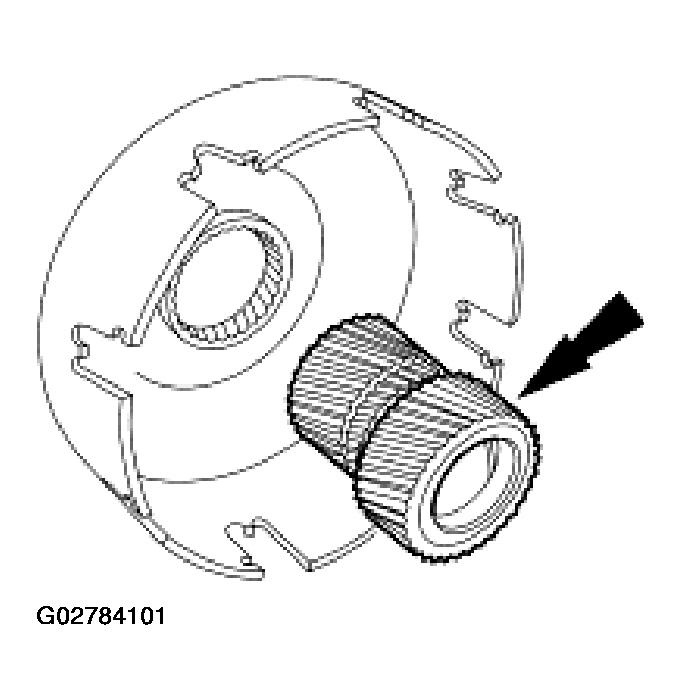

Remove the forward/reverse sun gear.

Fig 3: Removing Forward/Reverse Sun Gear
Courtesy of FORD MOTOR CO.
