2004 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE
Removal and Installation
NOTE:
When installing a new module, it must be calibrated and reconfigured (either by download/upload or uploading the as-built database method).
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

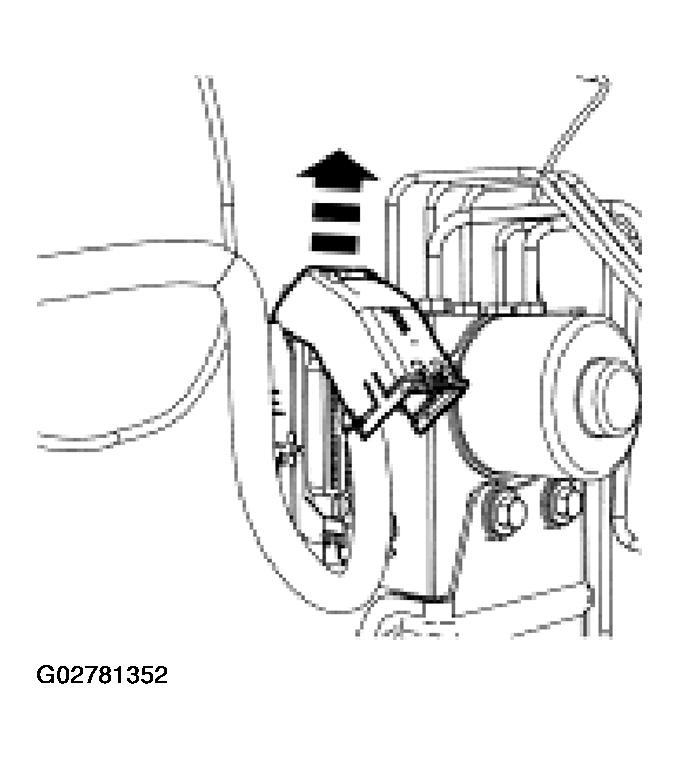

- Disconnect the anti-lock brake control module electrical connector.

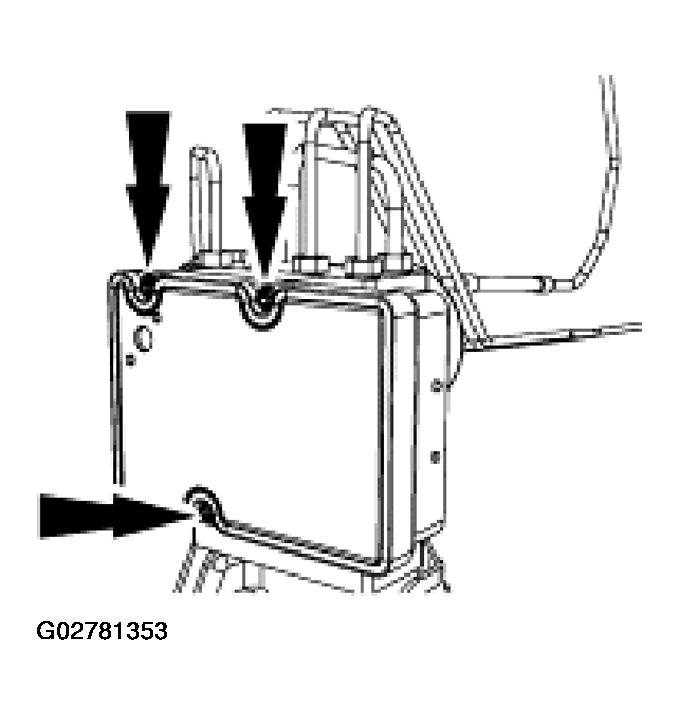

- Remove the screws and the anti-lock brake control module.
- To install, reverse the removal procedure.
CAUTION:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
