2004 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE
Transmission Selector Cable: Notes
- With the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .

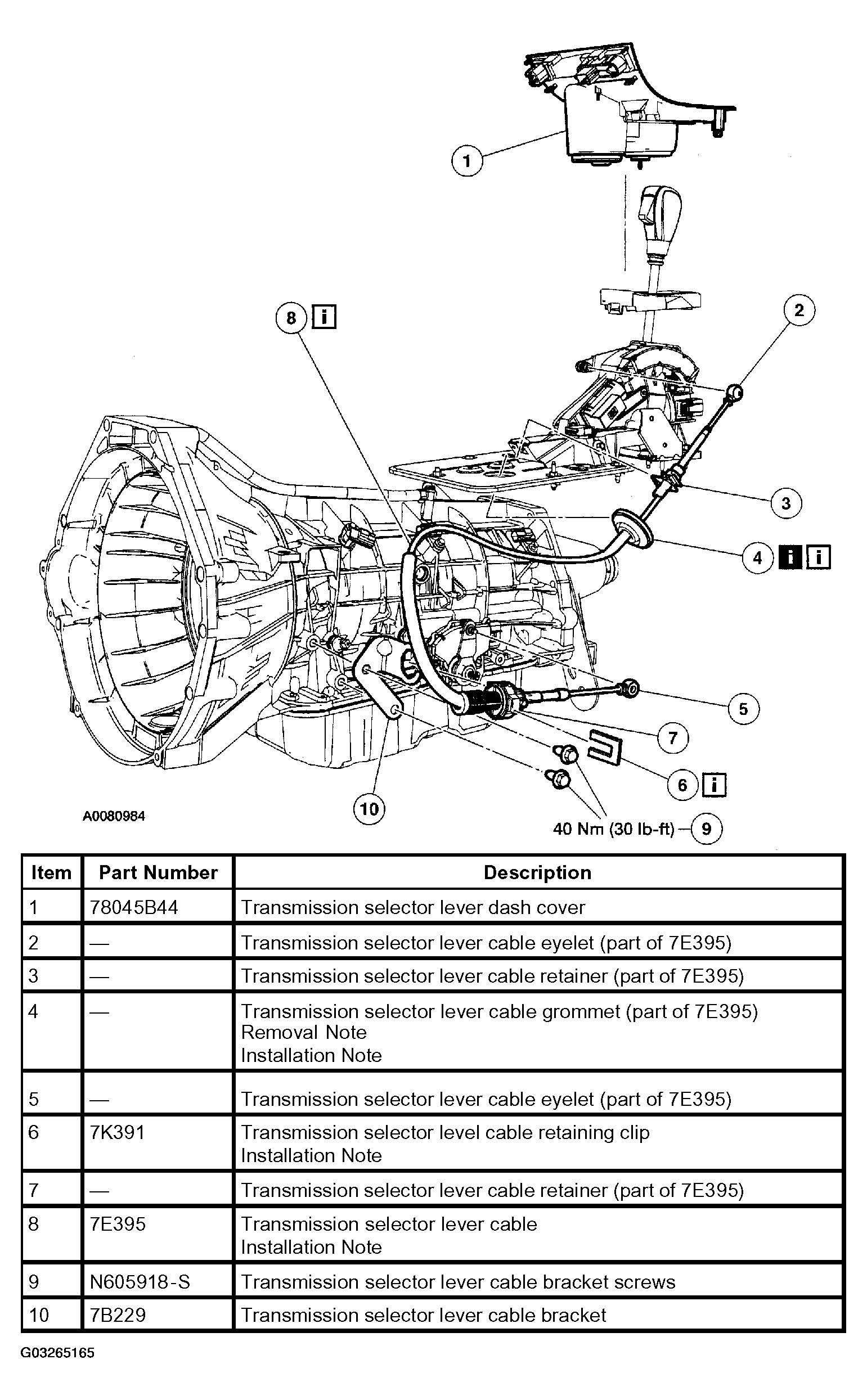

- Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
TRANSMISSION SELECTOR CABLEPart Steps Transmission selector lever cable 1-7 Transmission selector lever cable bracket 5-9 - To install, reverse the removal procedure.
