2004 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE
Intermediate Shaft Speed Sensor: Notes
NOTE:
Lubricate the sensor O-ring seal with petroleum jelly prior to installing the sensor.
- On 4x4 vehicles, remove the front driveshaft. For additional information, refer to DRIVELINE SYSTEM .
- For 4x2 vehicles, with the vehicle in PARK, position on a hoist. For additional information, refer to JACKING & LIFTING .

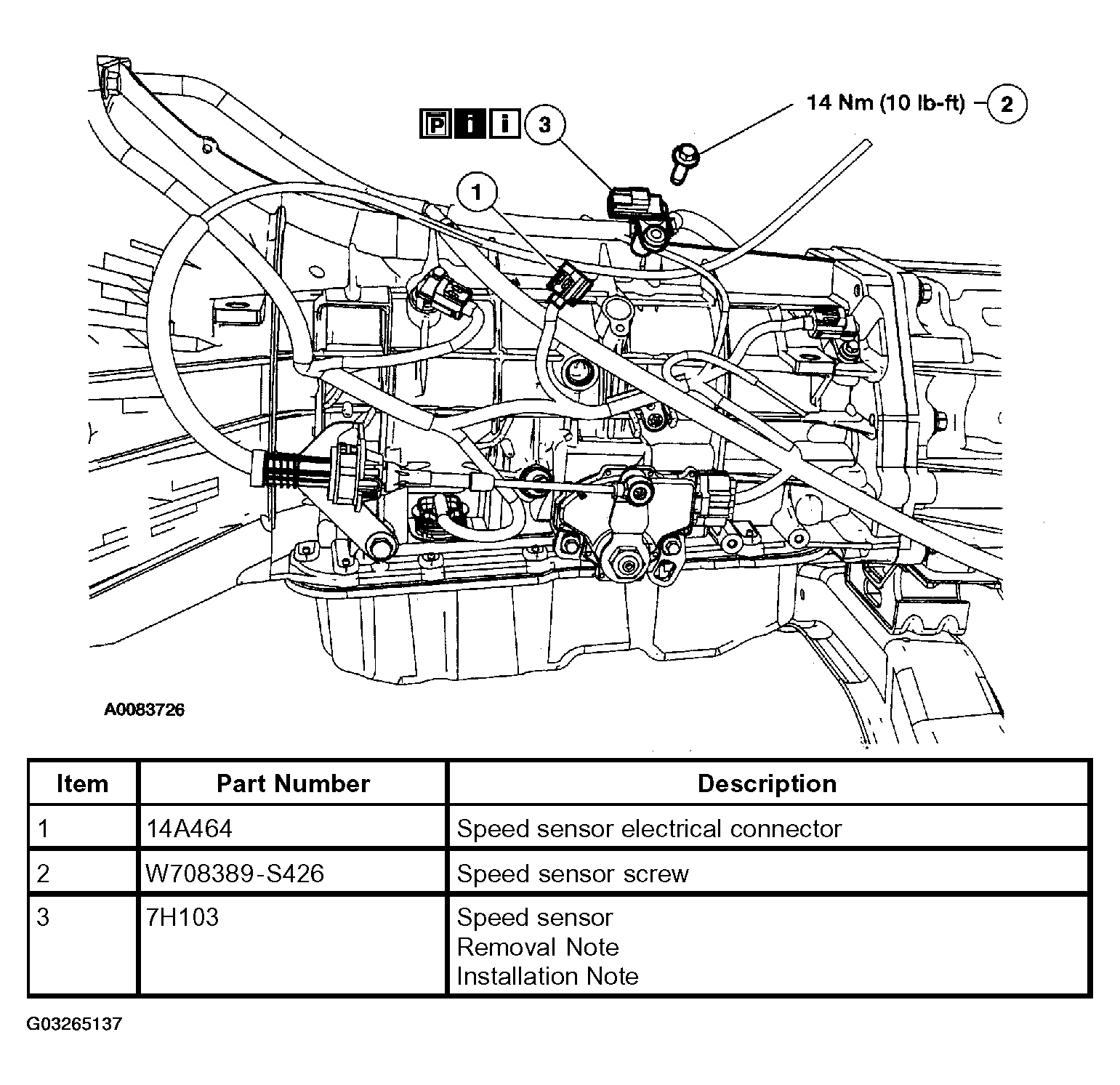

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
