2004 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE
Lower Intake Manifold: Notes
MATERIALS
| Item | Specification |
|---|---|
| Motorcraft Premium Engine Coolant VC-4-A (in Canada CXC-10, in Oregon VC-5) or equivalent (green color) | ESE-M97B44-A |
| Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color) | WSS-M97B51-A1 |
- Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
- Drain the cooling system. For additional information, refer to ENGINE COOLING .
- Disconnect the spring lock couplings. For additional information, refer to Fuel Lines and Fuel Filter in FUEL SYSTEM .
- Remove the exhaust gas recirculation (EGR) system module tube. For additional information, refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .

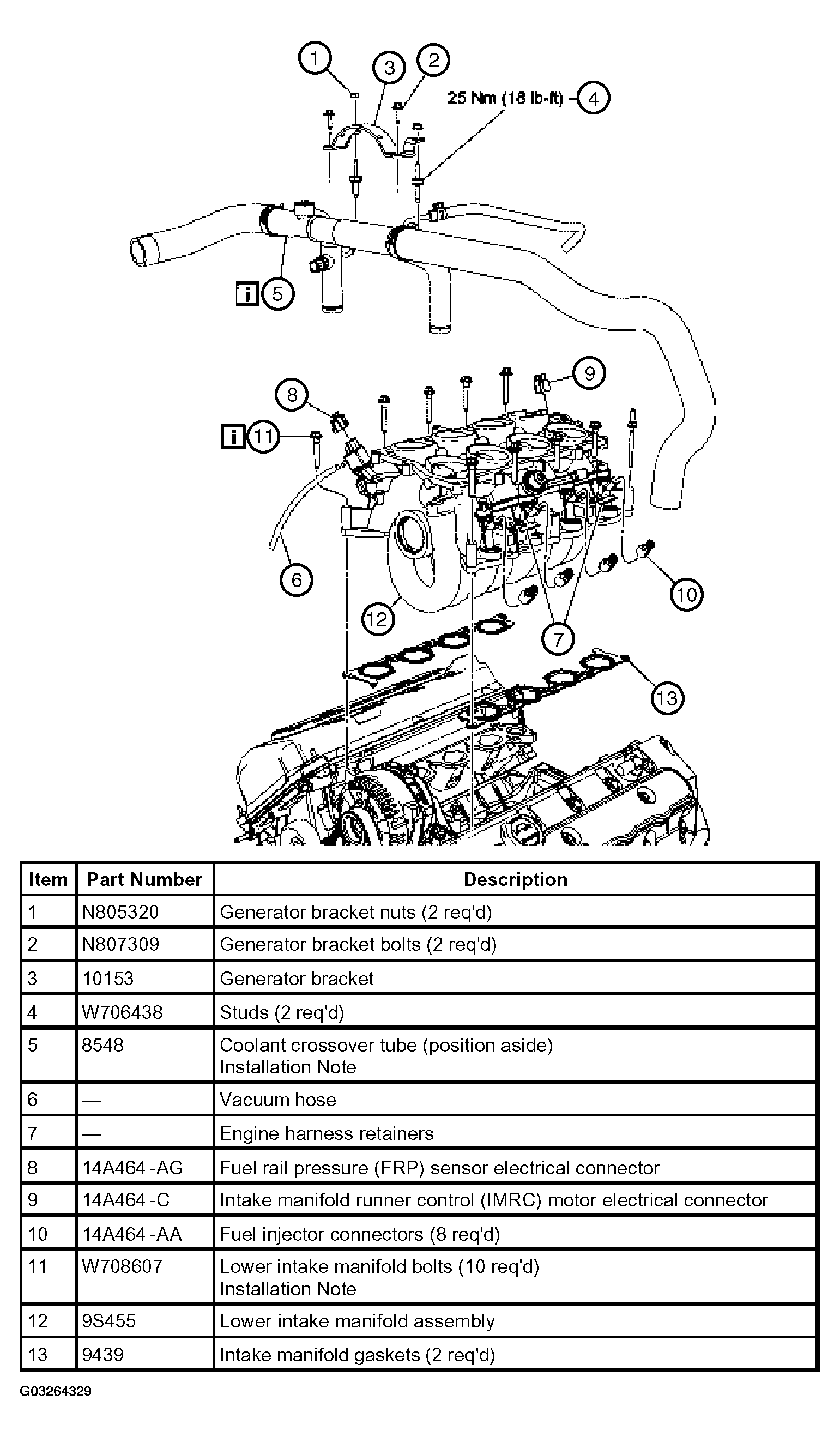

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
