2003 Lincoln Town Car BaseFACTORY OEM SERVICE PROCEDURE

Pinpoint Test D: No Communication With The Lighting Control Module (LCM)

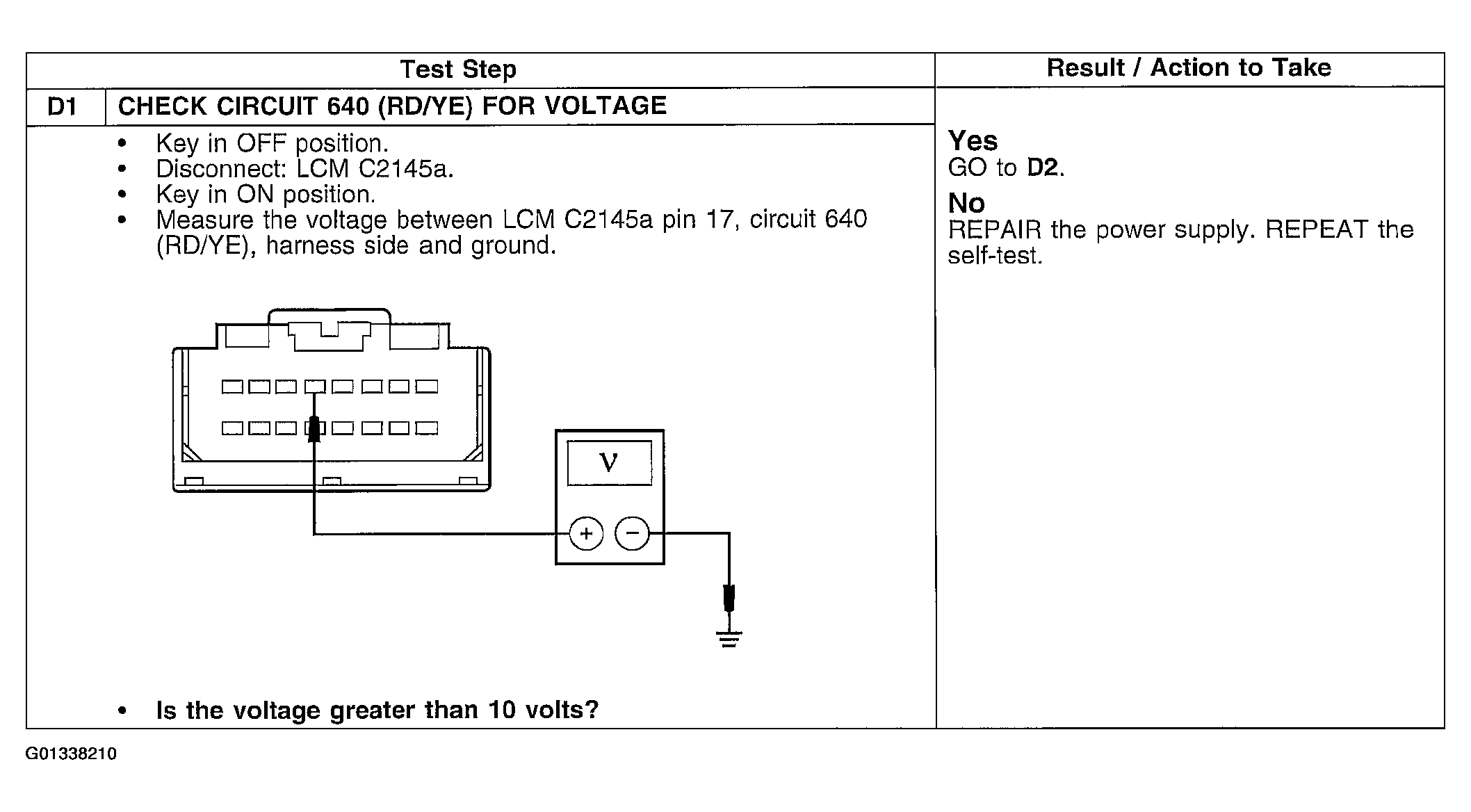

Fig 1: Pinpoint Test D (Step D1)
G01338210Courtesy of FORD MOTOR CO.
