2003 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE
Tire Pressure Monitoring System Module

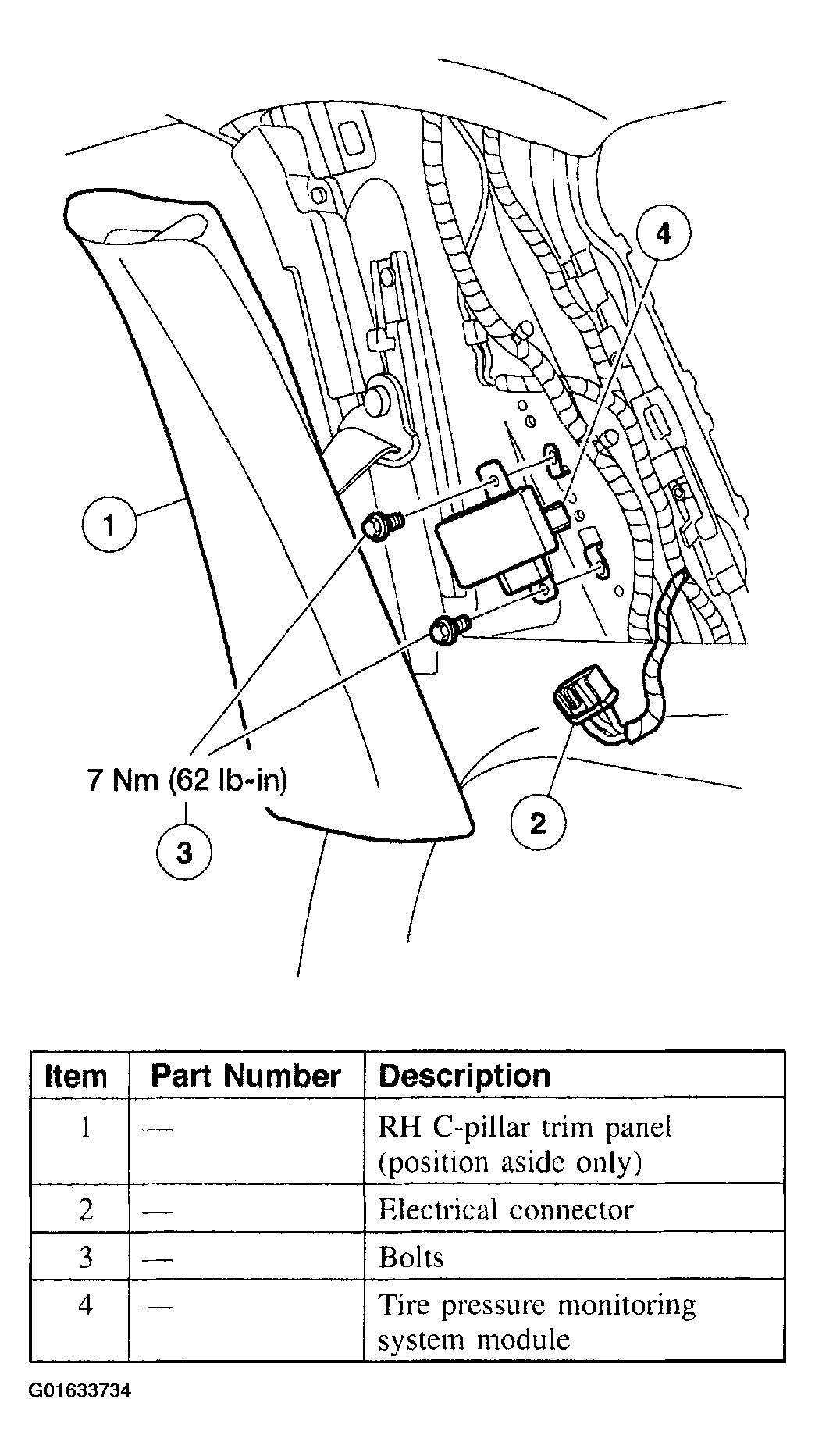

- Remove the components in the order indicated in the following illustration.
- To install, reverse the removal procedure.
- Train the tire pressure sensors. For additional information, refer to SENSOR TRAINING .
- Reconfigure the module. For additional information refer to MODULE COMMUNICATIONS NETWORK .
