2003 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE
Timing Drive Components: Removal
WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Since the engine is not free-wheeling, timing procedures must be followed exactly or piston and valve damage can occur.
- Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
- Remove the crankshaft sensor ring from the crankshaft.

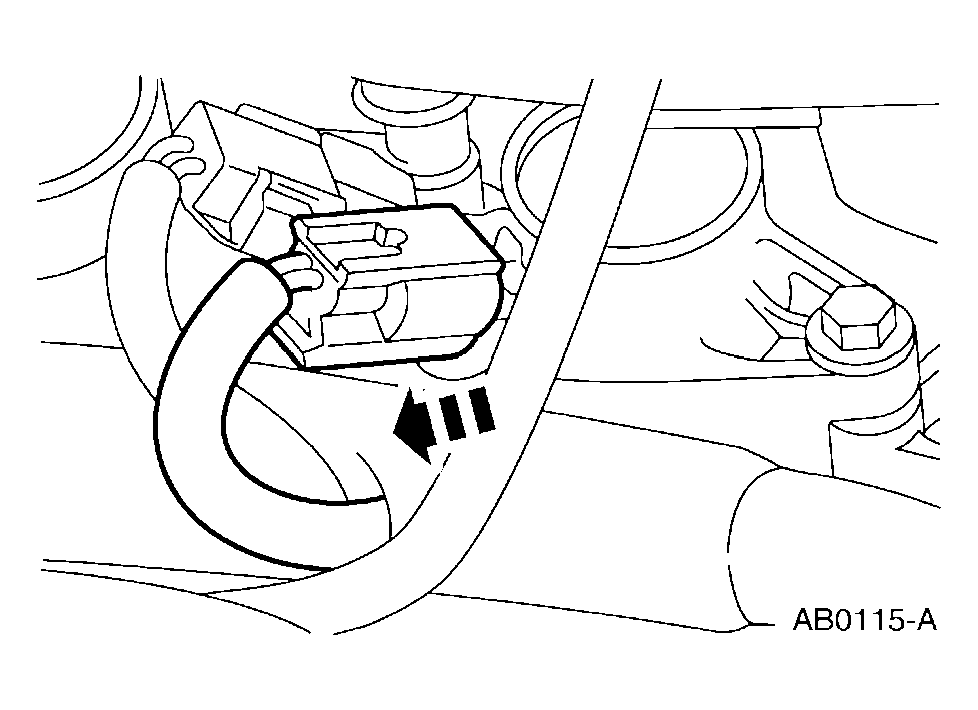

- Disconnect the eight ignition coil electrical connectors.

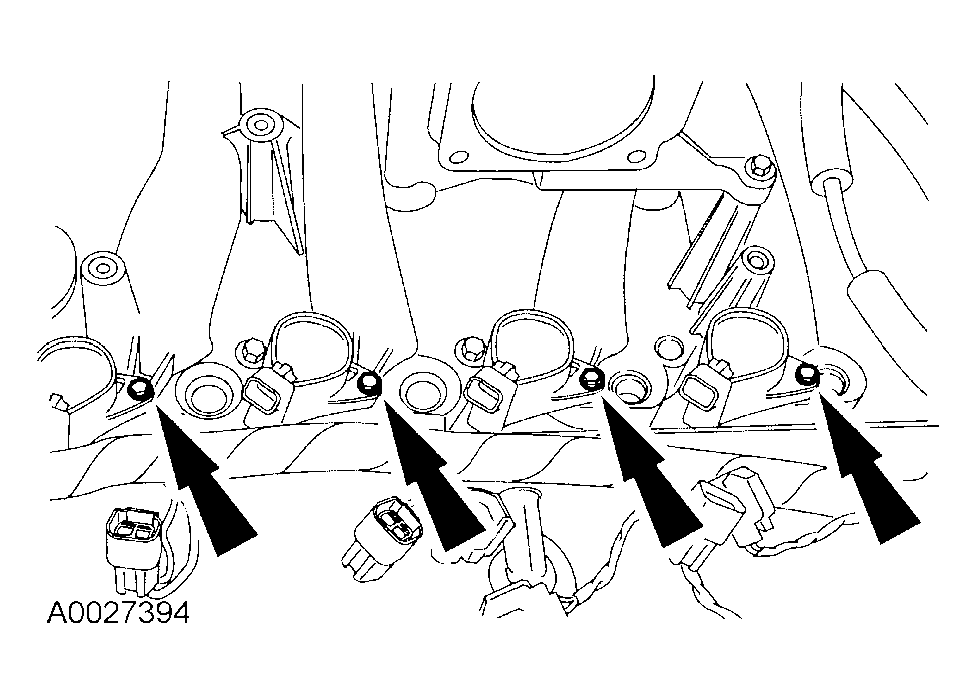

- Remove the bolts and the eight ignition coils.
NOTE:
Use compressed air to remove any foreign material from the spark plug wells before removing the spark plugs.
