2003 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE
Section 1355 (Engine): Disassembly: Engine: Disassembly
WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Servicing the bottom end of the engine (crankshaft, bearings) requires that cylinder heads be removed. Failure to do so can result in engine damage.

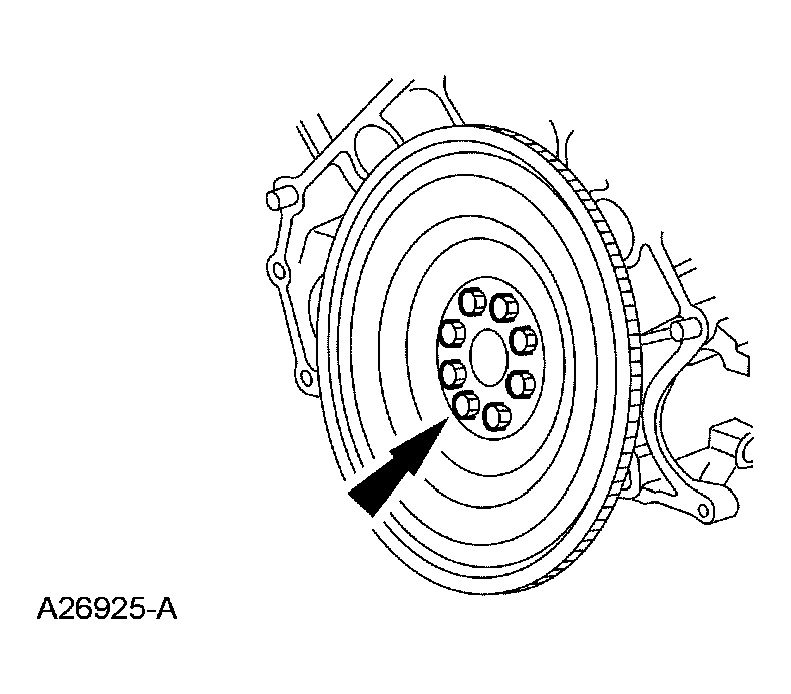

- Remove the bolts and the flexplate.

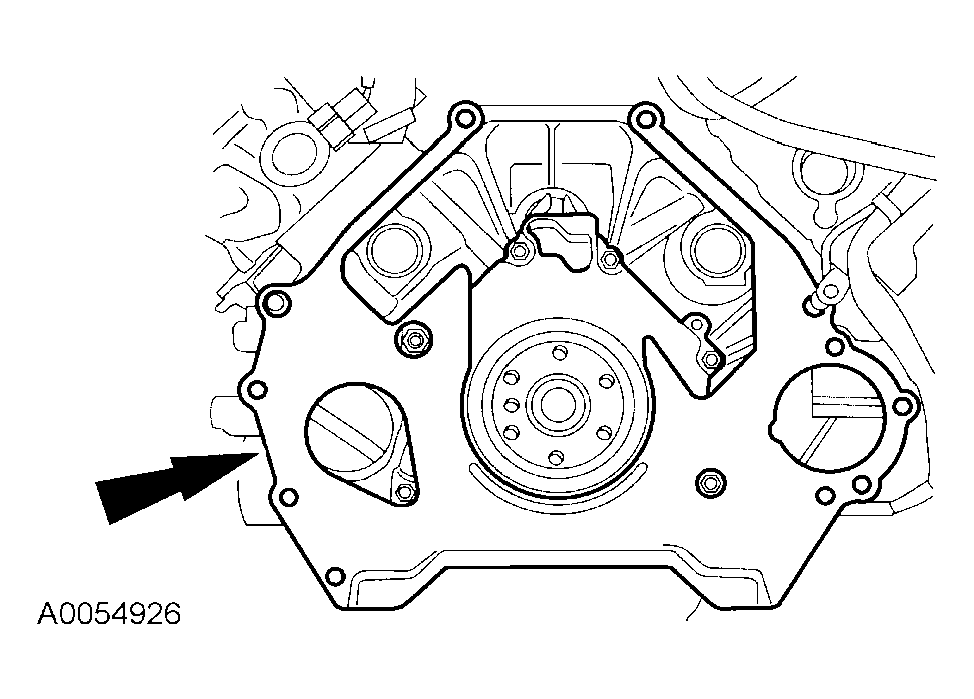

- Remove the engine/transmission spacer plate.

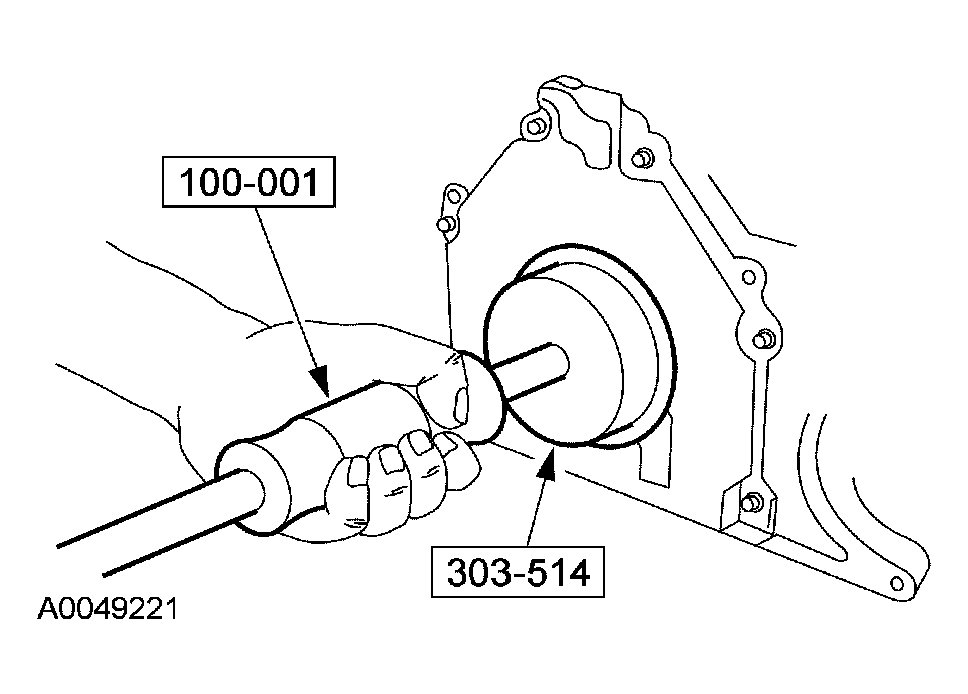

- Using the special tools, remove the rear oil seal slinger.

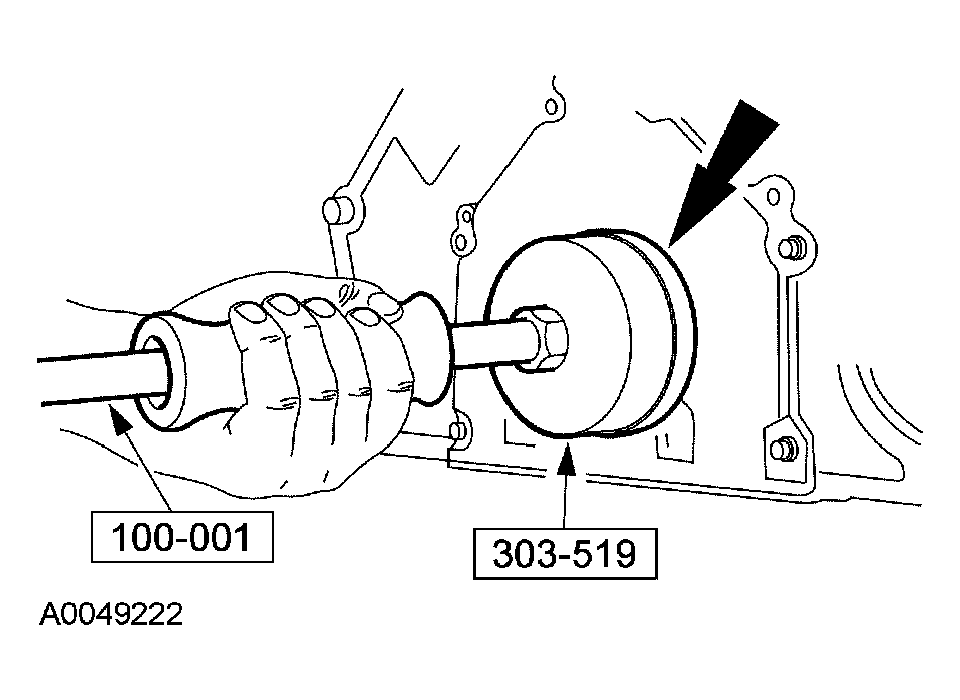

- Using the special tools, remove the rear main seal.

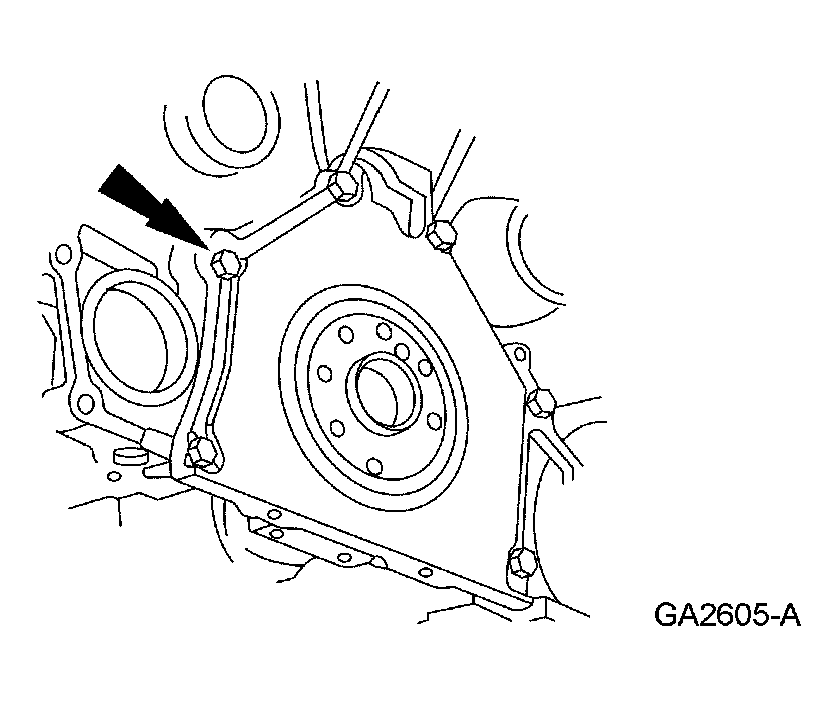

- Remove the eight bolts and the crankcase rear oil seal retainer.

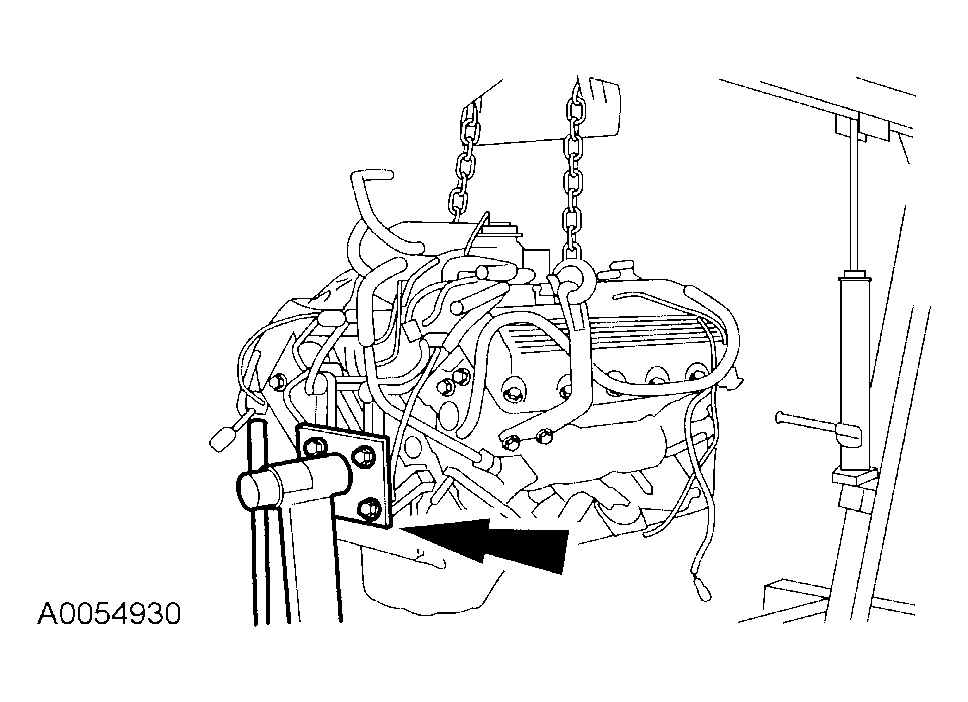

- Mount the engine on a suitable engine stand.
NOTE:
RH shown; LH similar.
