2003 Lincoln Aviator AWDFACTORY OEM SERVICE PROCEDURE

Disassembly And Assembly Of Subassemblies: Piston

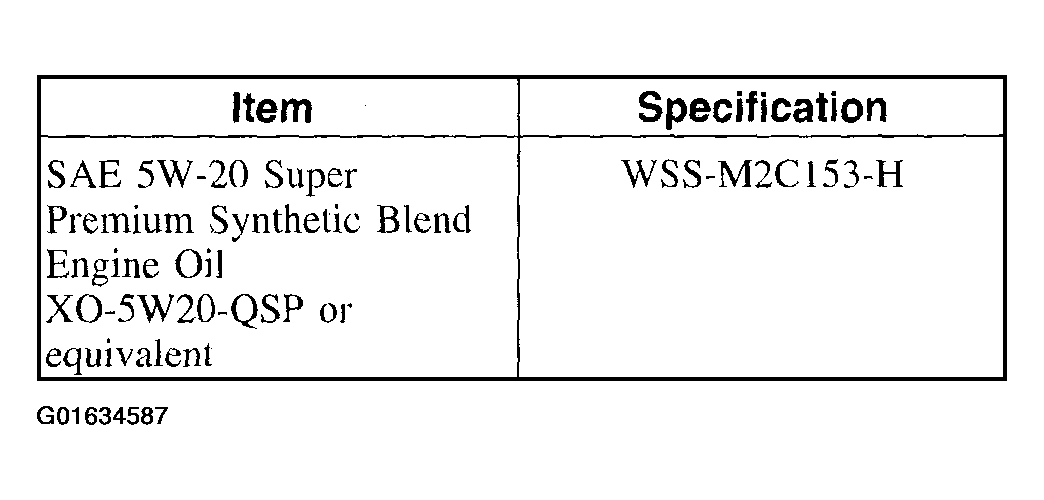

Fig 1: Material Specifications

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in the following illustration.
To assemble, reverse the disassembly procedure.

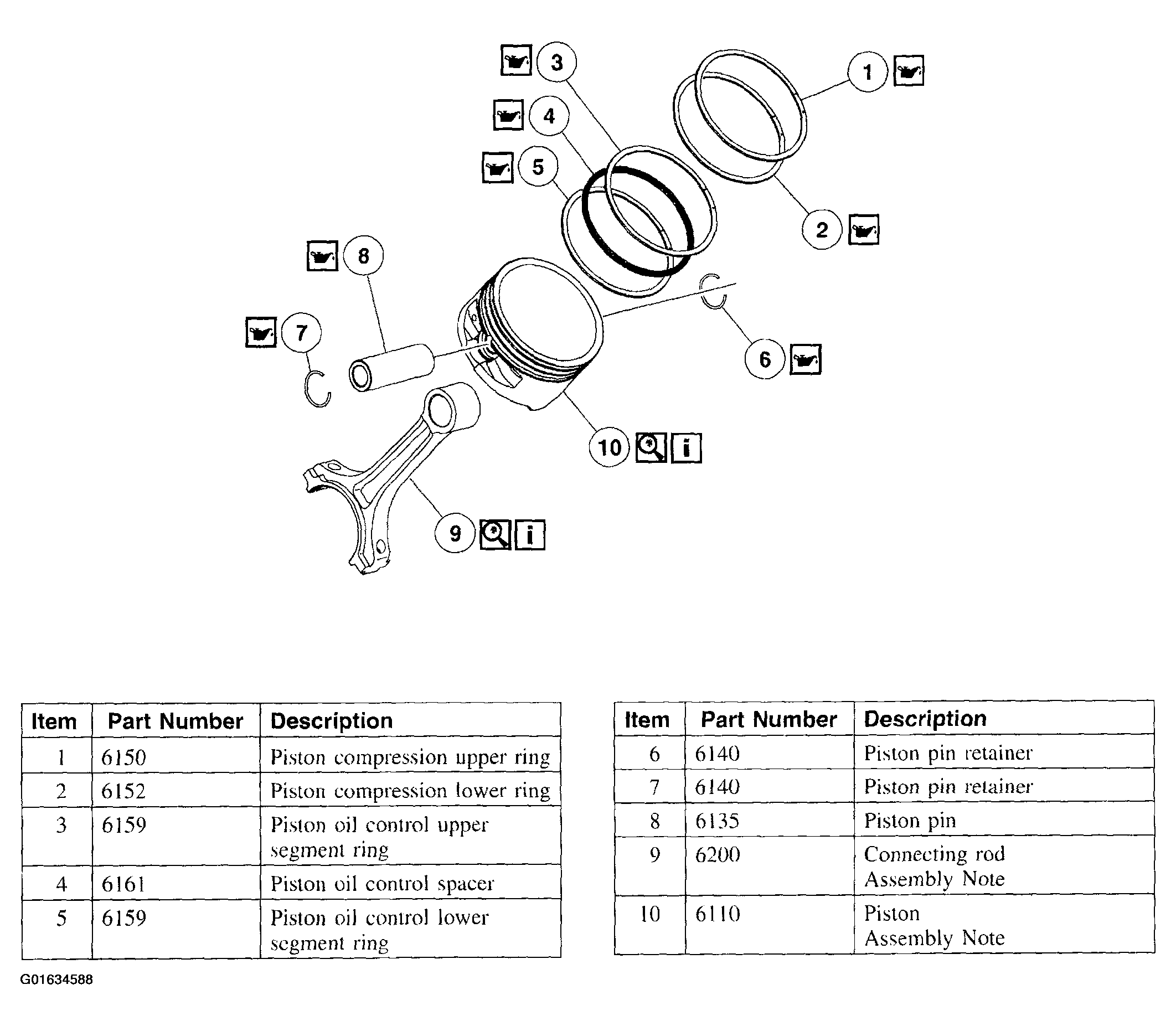

Fig 2: Removal Sequence Of Piston
Courtesy of FORD MOTOR CO.

Items 9 and 10: Piston and Connecting Rod Assembly Note

NOTE: Connecting rod must be installed into the piston with identification markings toward the front.
