2002 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE

Intermediate/Overdrive Cylinder Assembly: Disassembly

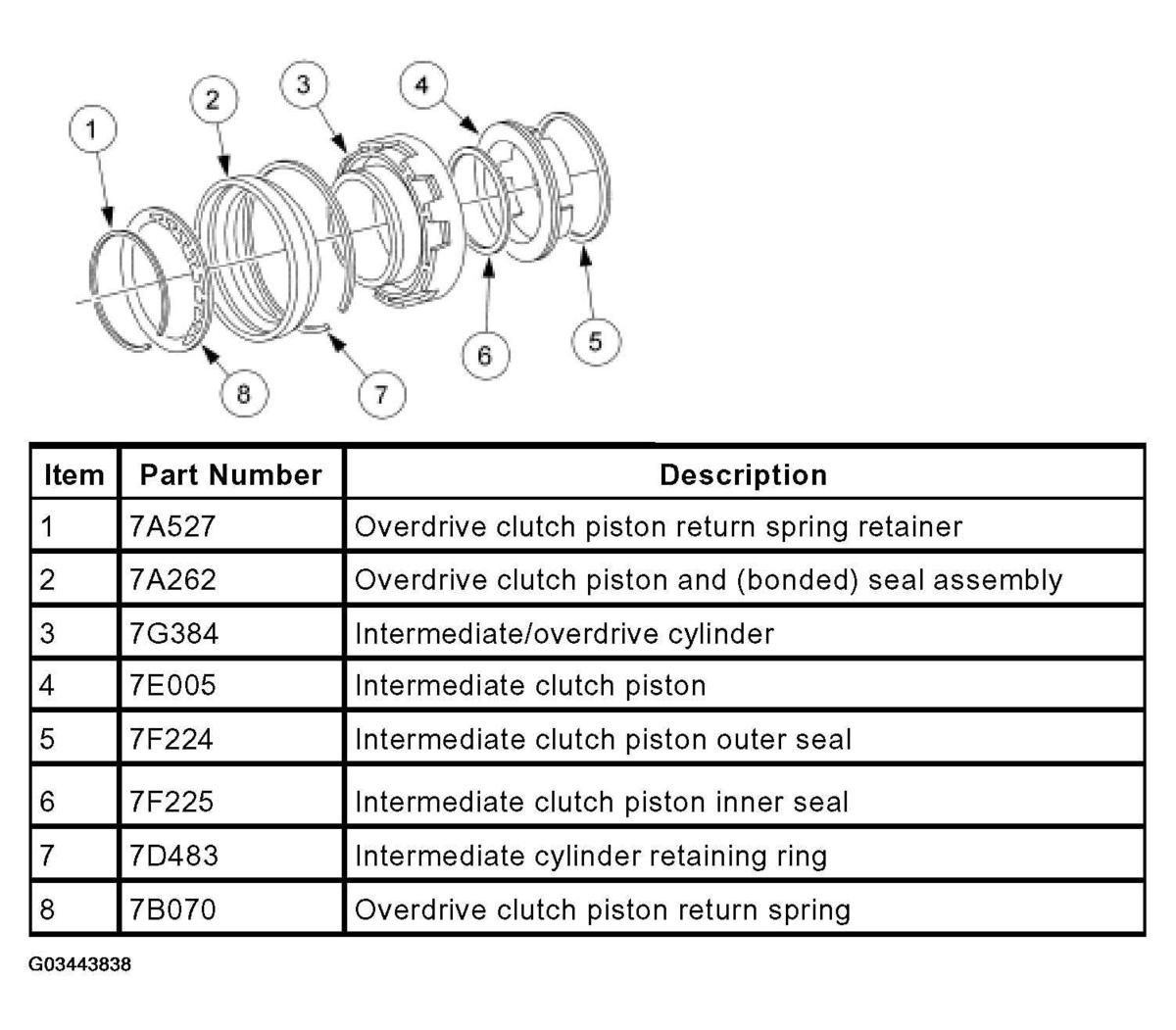

Fig 1: Disassembled View Of Intermediate/Overdrive Cylinder Assembly

Courtesy of FORD MOTOR CO.

Using the special tools, compress the overdrive clutch piston return spring.

Fig 2: Compressing Overdrive Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Remove the overdrive clutch piston return spring retainer. Remove the tools.

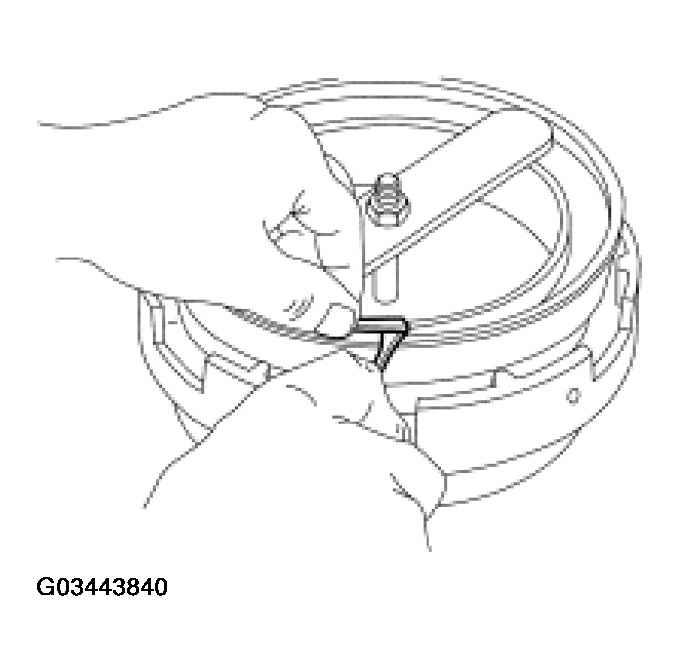

Fig 3: Removing Overdrive Clutch Piston Return Spring Retainer
Courtesy of FORD MOTOR CO.
Remove the overdrive clutch piston return spring.

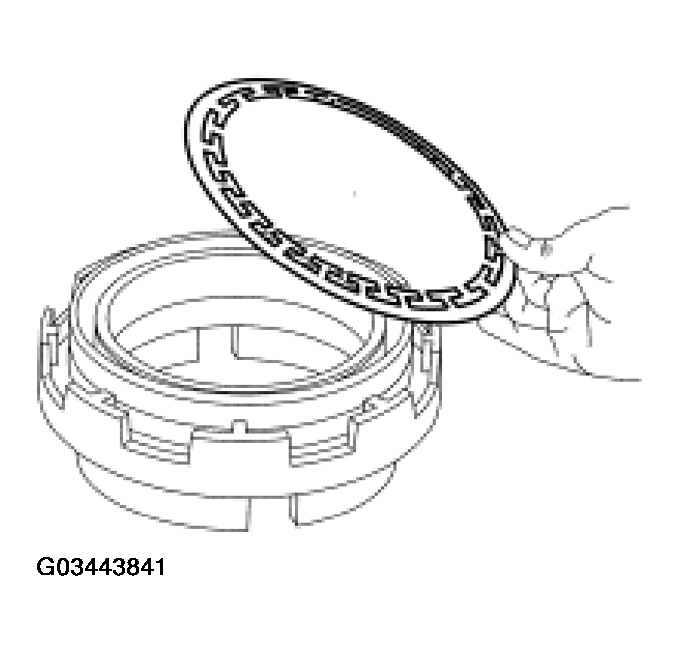

Fig 4: Removing Overdrive Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.

NOTE: The overdrive piston seals are bonded to the piston. If the seals are damaged, replace the piston assembly.
