2002 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE

Center Support: Disassembly

Remove and discard the direct clutch seal rings.

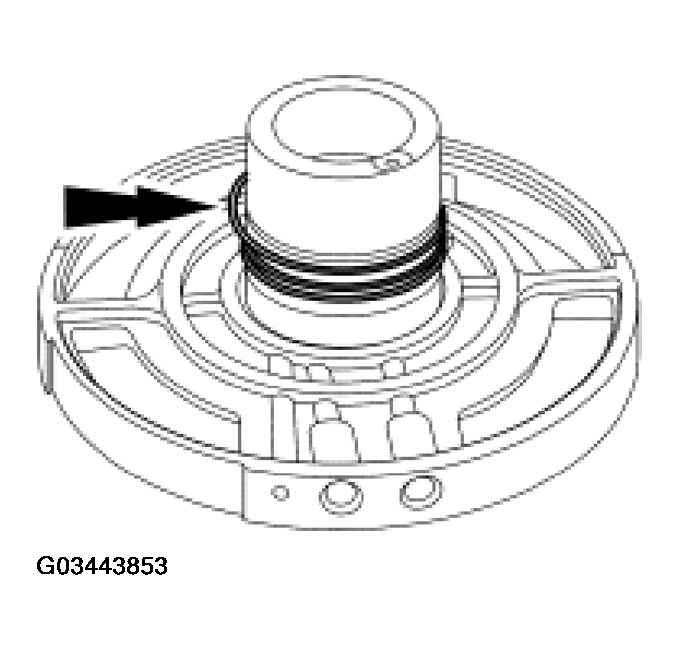

Fig 1: Removing Direct Clutch Seal Rings
Courtesy of FORD MOTOR CO.
Inspect the following for contamination or damage. Clean or install as necessary.
1. Inspect the ball bearing.
2. Inspect the feedbolt threads.
3. Remove and inspect the No. 6 center support thrust washer.
4. Inspect the inner hub diameter.
5. Inspect the outer hub diameter.
6. Inspect the seal ring grooves.

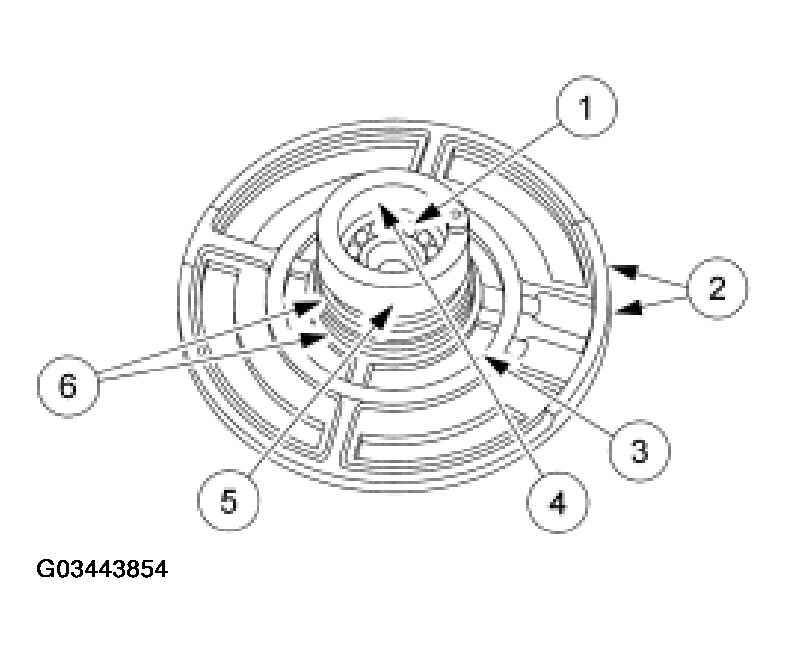

Fig 2: Inspecting Center Support Components
Courtesy of FORD MOTOR CO.
