2002 Lincoln ContinentalFACTORY OEM SERVICE PROCEDURE

Pump Assembly: Disassembly

Remove the bolts.

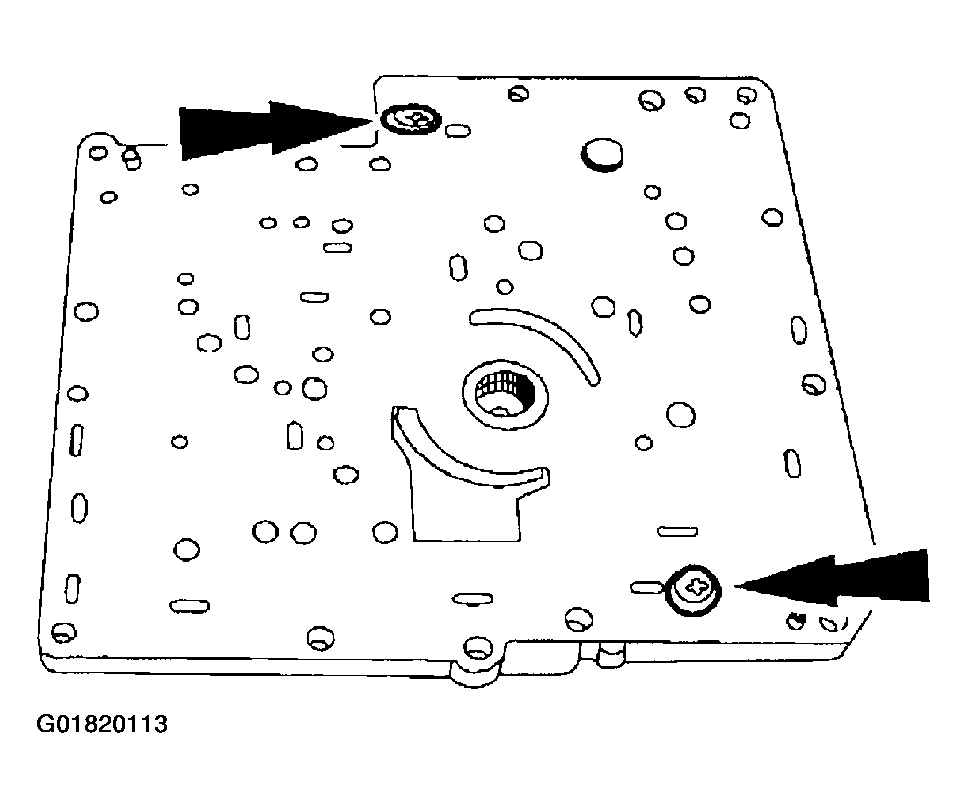

Fig 1: Locating Separator Plate Bolts
Courtesy of FORD MOTOR CO.
Remove the valve body separator plates and gaskets.

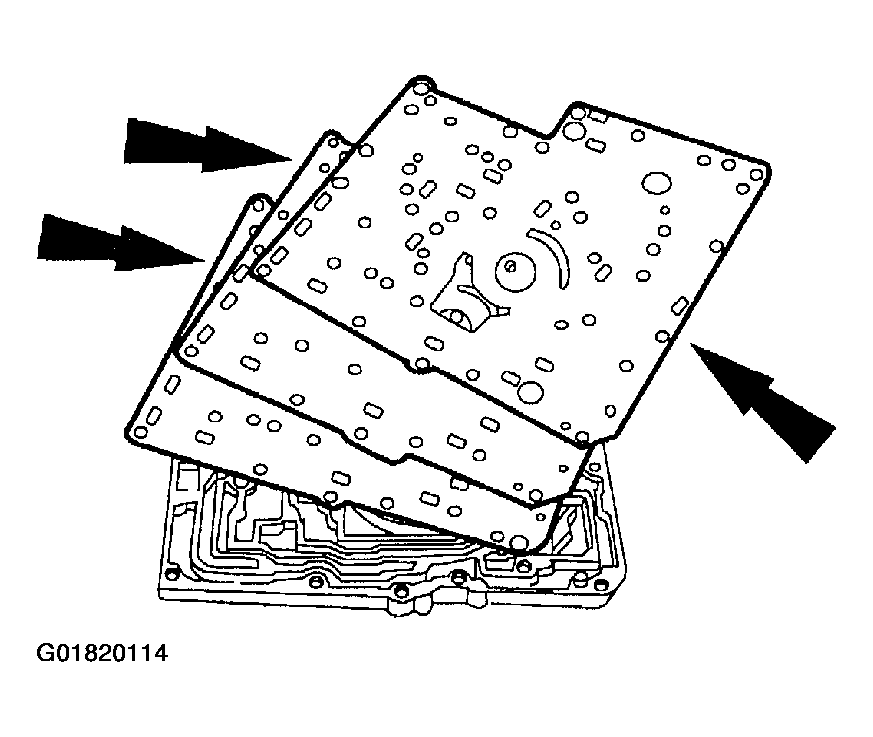

Fig 2: Removing Separator Plates
Courtesy of FORD MOTOR CO.
Remove the check ball and note the location.

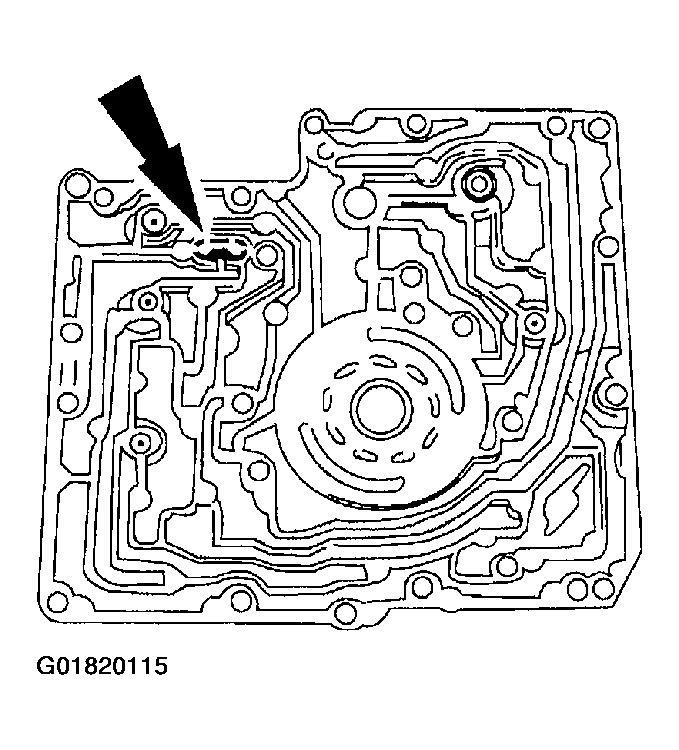

Fig 3: Locating Check Ball
Courtesy of FORD MOTOR CO.
Remove the bolts and the pump cover.

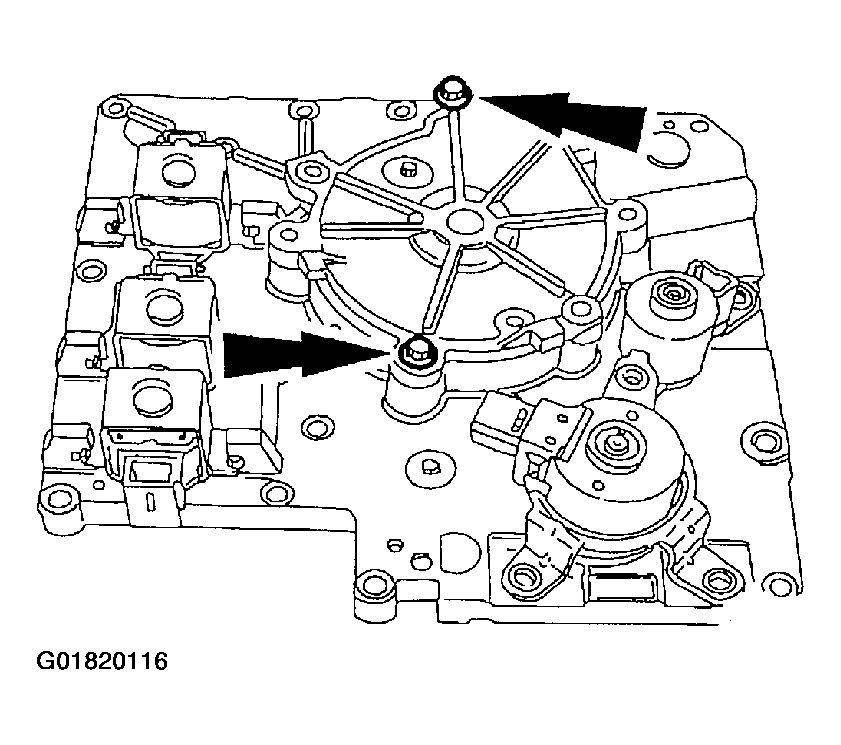

Fig 4: Removing Pump Cover
Courtesy of FORD MOTOR CO.

WARNING: Use extreme caution when removing spring to prevent personal injury.
