2002 Lincoln ContinentalFACTORY OEM SERVICE PROCEDURE
Final Drive: Disassembly

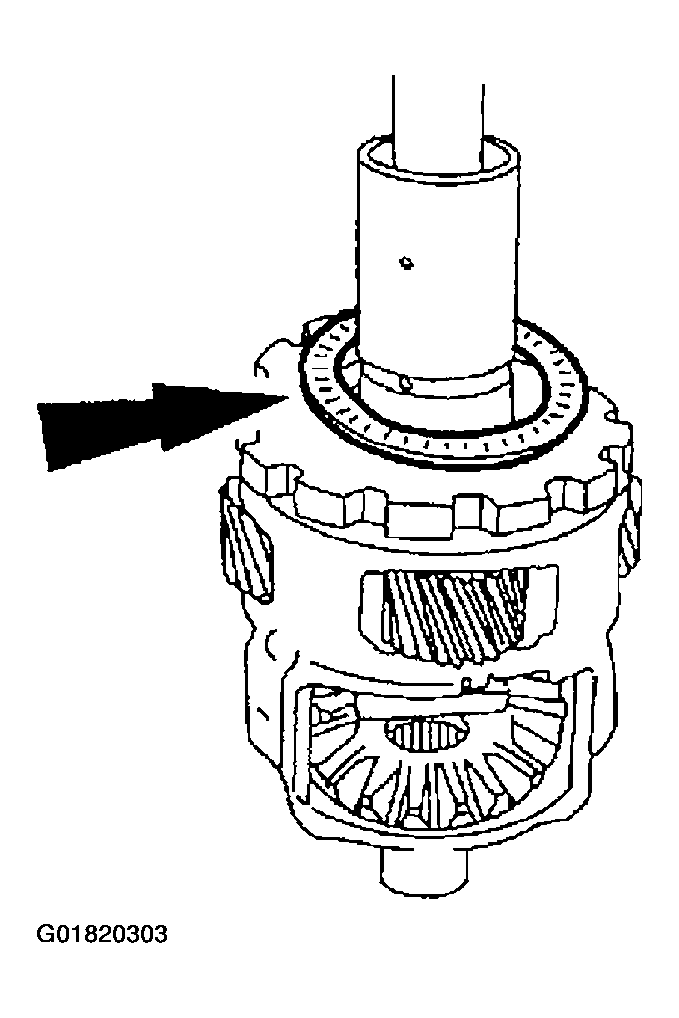

- Remove the No. 16 final drive gear front thrust bearing.

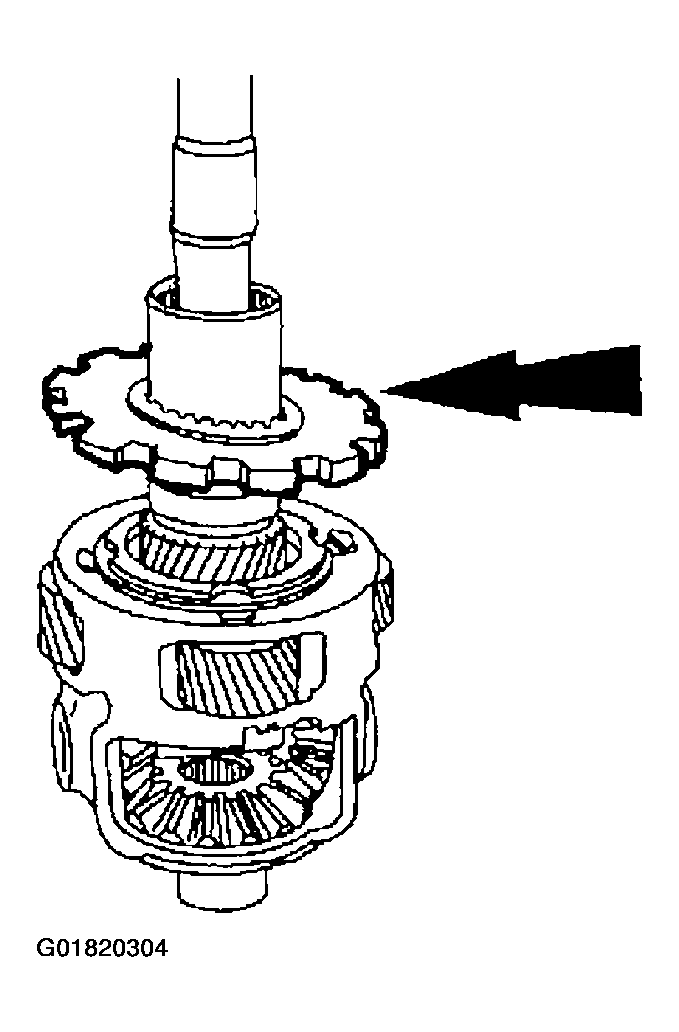

- Remove the park gear.

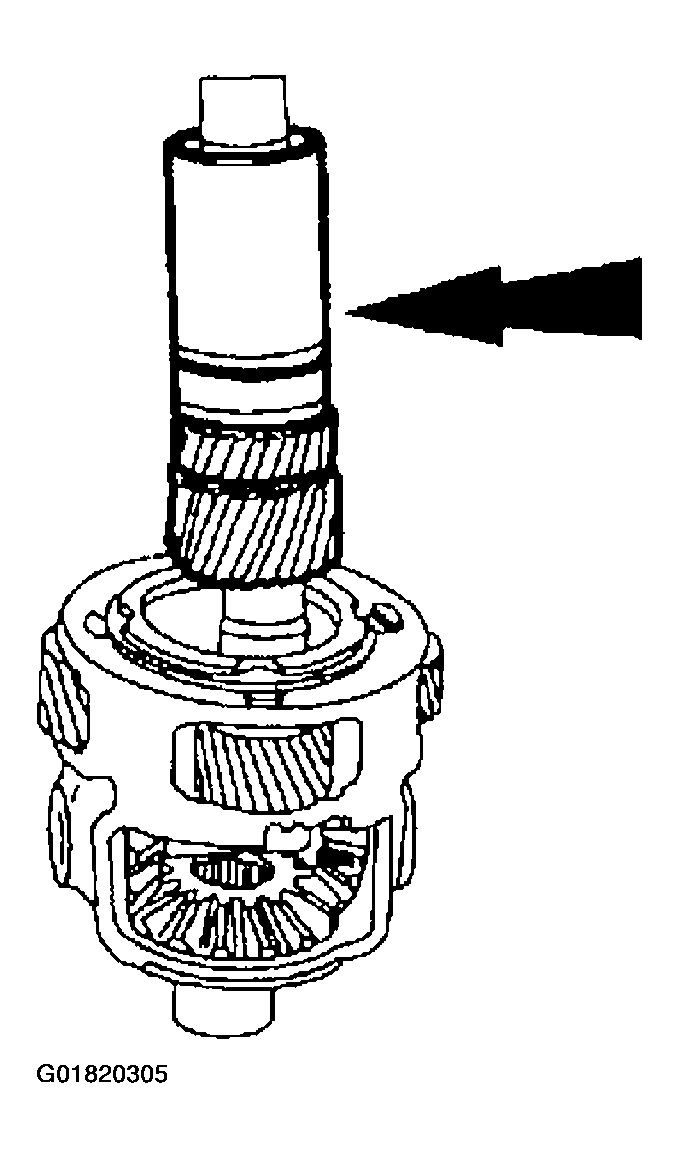

- Remove the final drive sun gear and deflector.

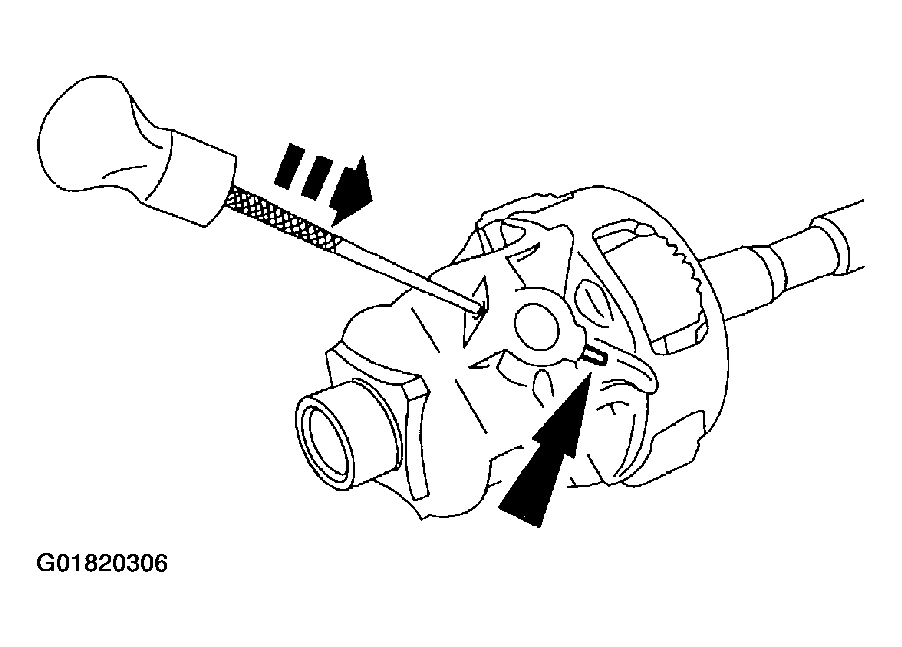

- Remove the differential pinion shaft roll pin.

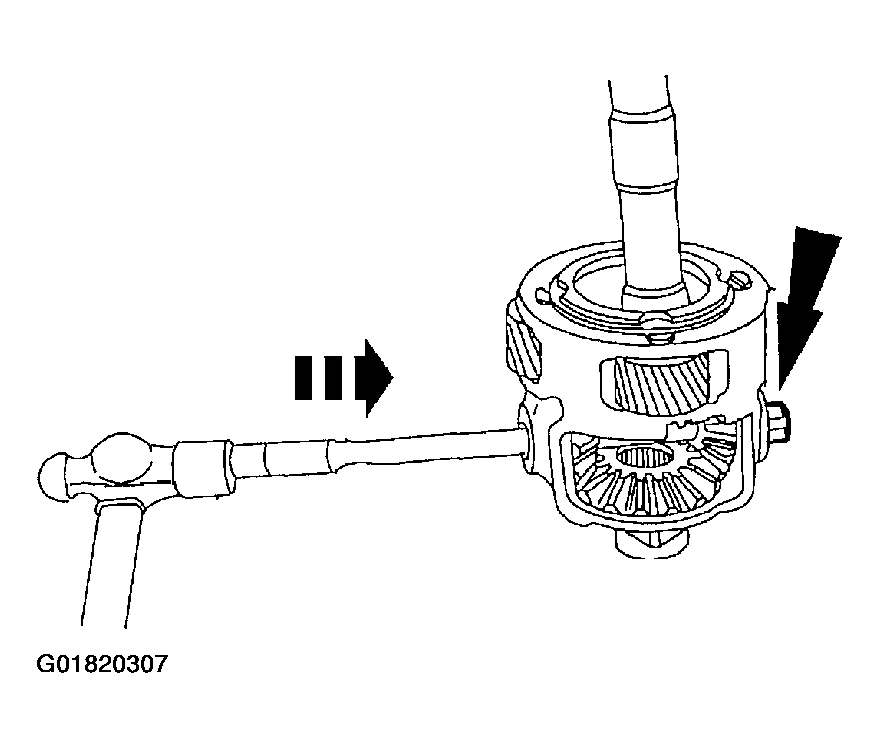

- Remove the differential pinion shaft.

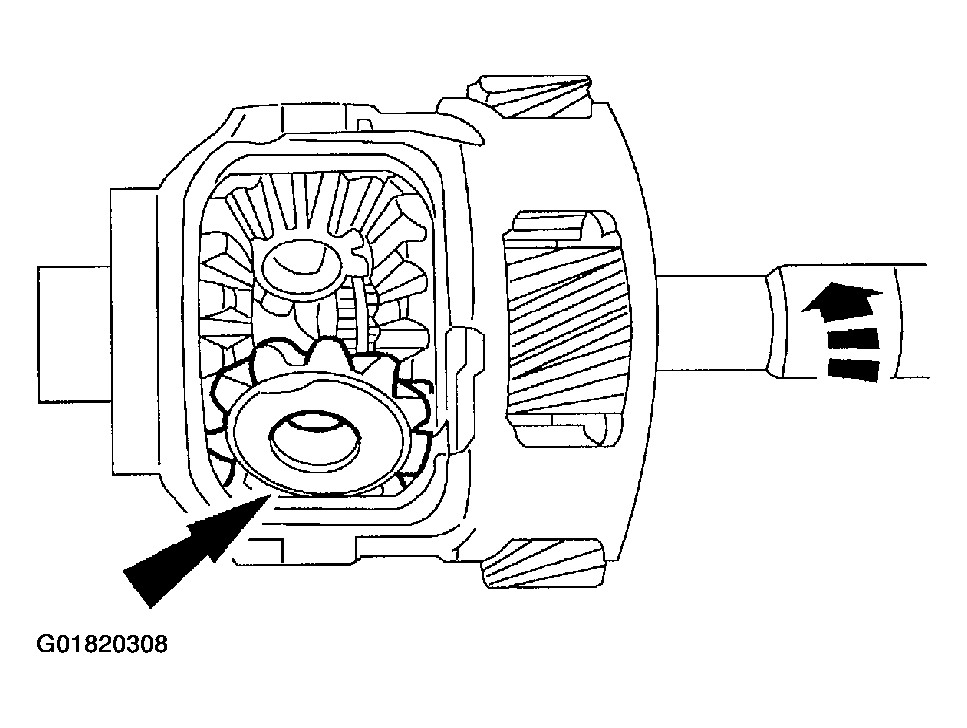

- Rotate the output shaft and remove the differential pinion gear, and the differential pinion thrust washers.

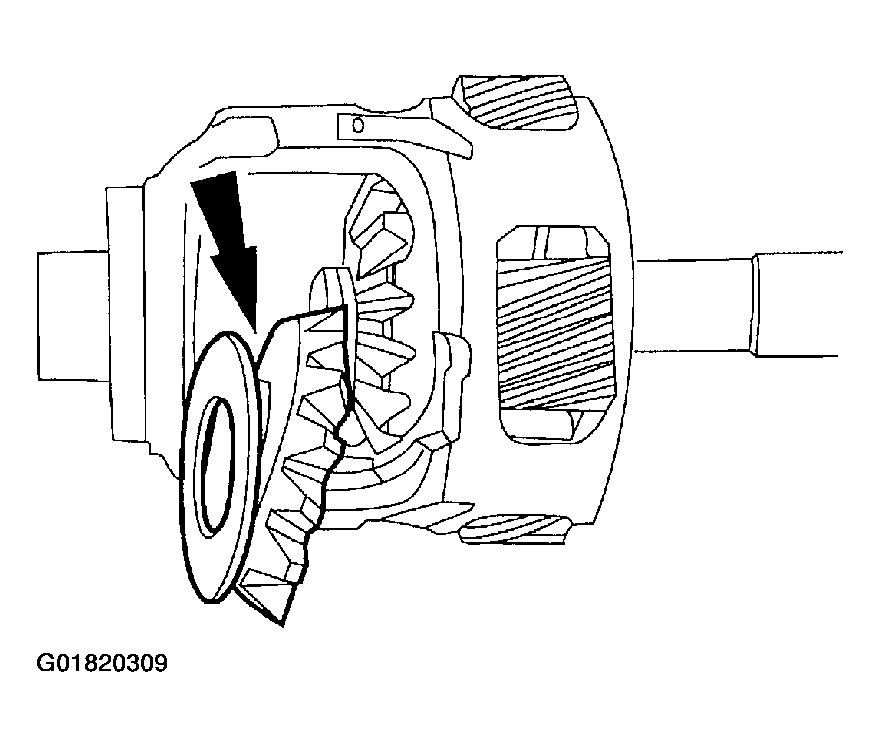

- Remove the differential side gear and differential side gear thrust washer.
- Remove the differential side gear and differential side gear thrust washer.

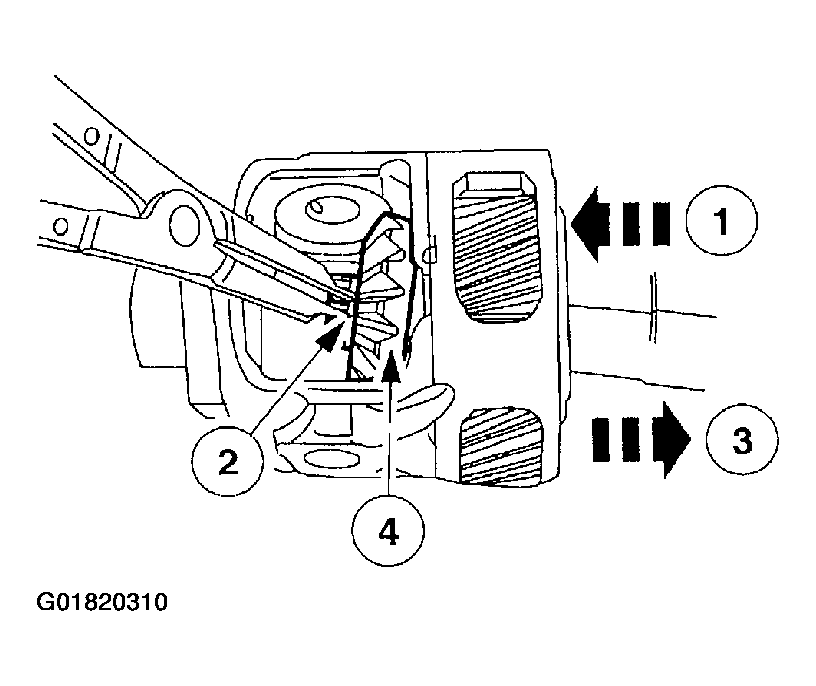

- Move the output shaft.
- Use the snap ring pliers to remove the retaining ring.
- Remove the output shaft.
- Remove the differential side gear and differential side gear thrust washer.
