2002 Lincoln ContinentalFACTORY OEM SERVICE PROCEDURE

Final Drive: Assembly

NOTE: If excessive wobble or rotational binding or damage is found, a new final drive planet and carrier will need to be installed.
  1. Inspect the differential pinion and side gears for looseness, discoloration, cracks or excessive gear wear.
    1. Inspect the final drive planet gears.
    2. Inspect the pinion shaft bores.

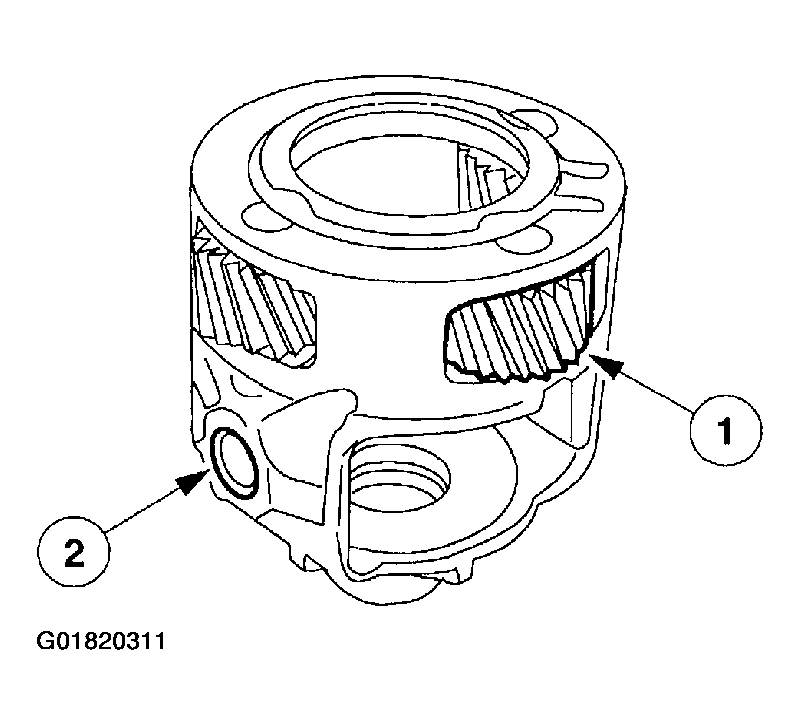

    2. Fig 1: Inspecting Differential
    G01820311Courtesy of FORD MOTOR CO.
  2. Install the differential side gear and differential side gear thrust washer.
    1. Install the differential side gear and differential side gear thrust washer.
    2. Install the output shaft.
    3. Use the snap ring pliers to install the retaining ring.

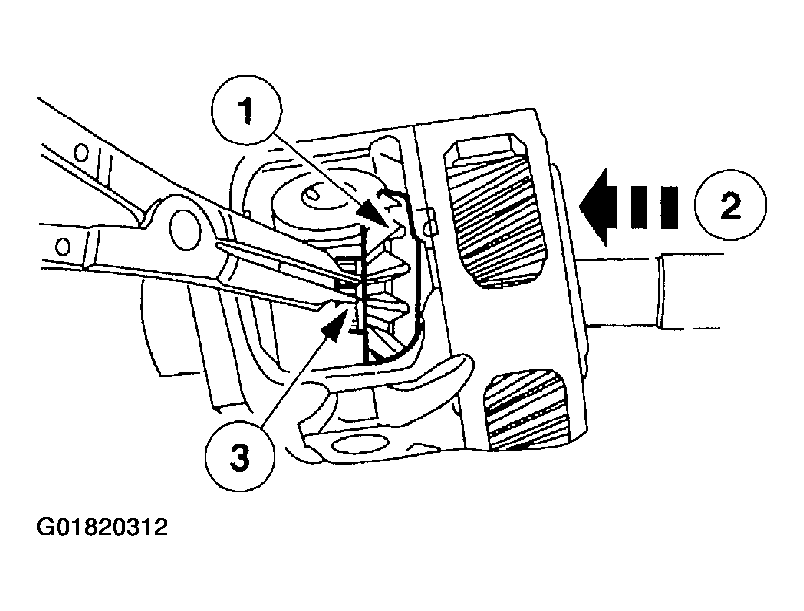

    3. Fig 2: Installing Side Gear
    G01820312Courtesy of FORD MOTOR CO.
  3. Install the differential side gear and differential side gear thrust washer.

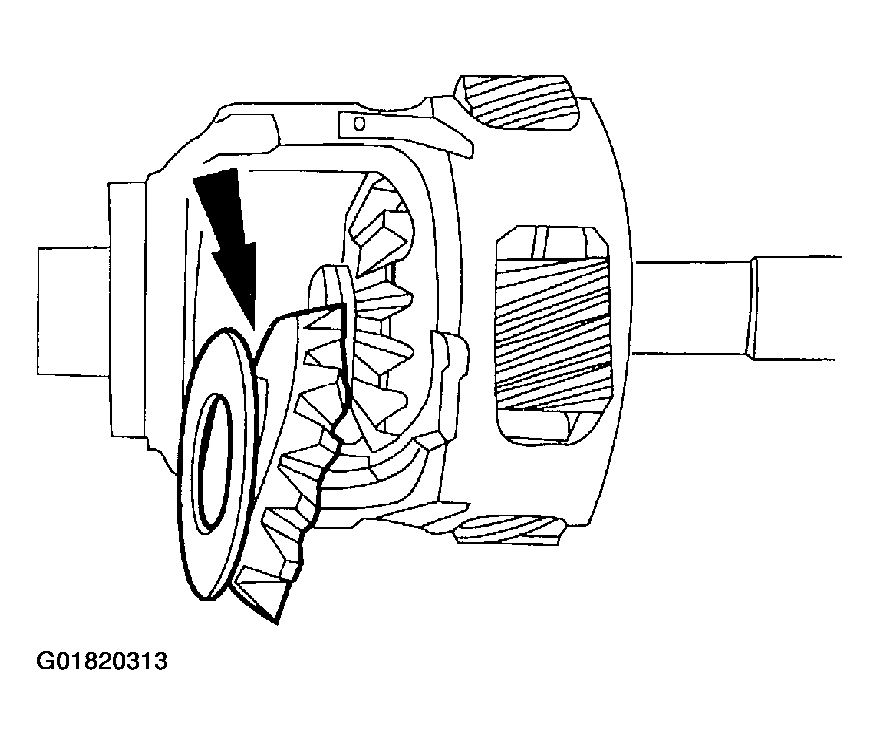

    4. Fig 3: Installing Side Gear
    G01820313Courtesy of FORD MOTOR CO.
  4. Install the differential pinion gears, and differential pinion thrust washers.

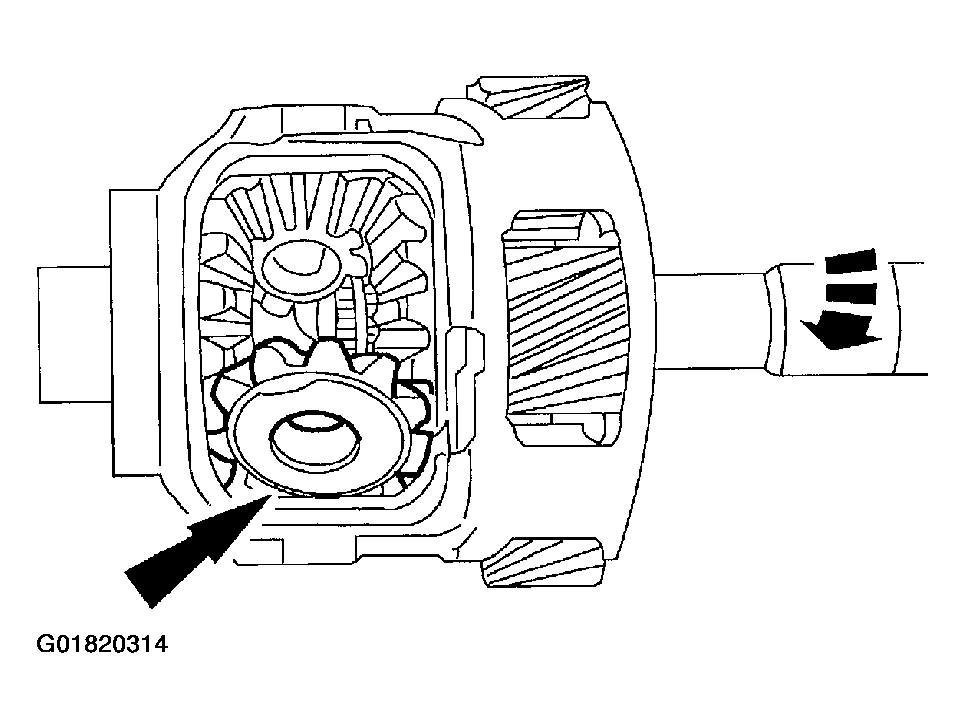

    5. Fig 4: Installing Differential Pinion Gears
    G01820314Courtesy of FORD MOTOR CO.
  5. Install the differential pinion shaft.

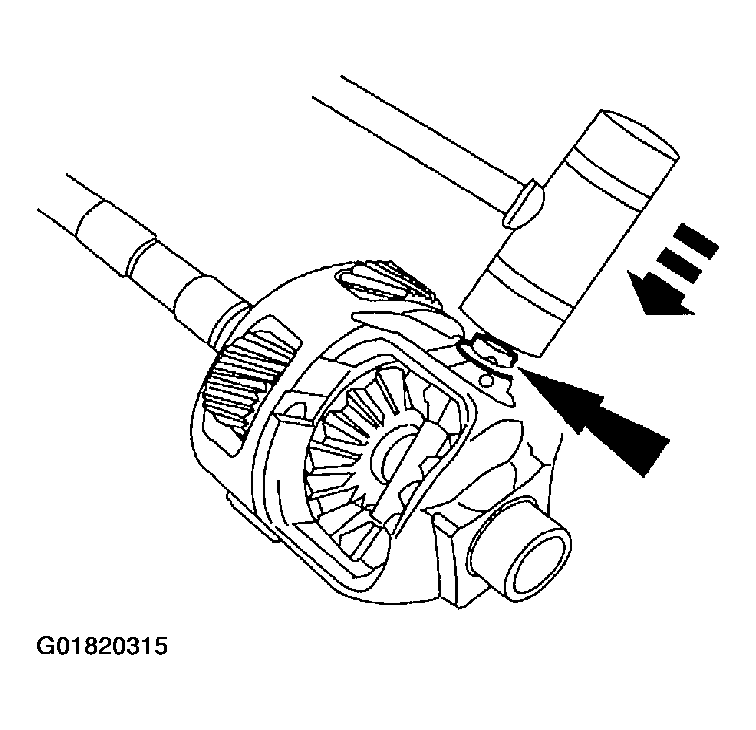

    6. Fig 5: Installing Differential Pinion Shaft
    G01820315Courtesy of FORD MOTOR CO.
  6. Install the differential pinion shaft roll pin.

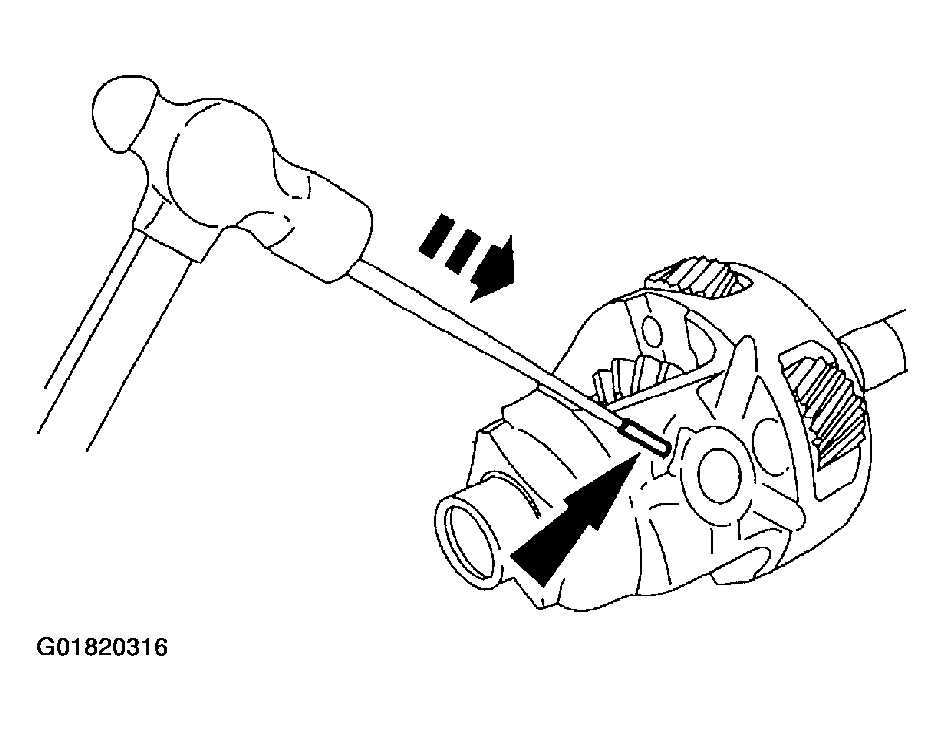

    7. Fig 6: Installing Differential Pinion Shaft Roll Pin
    G01820316Courtesy of FORD MOTOR CO.
  7. Install the final drive sun gear and deflector assembly.

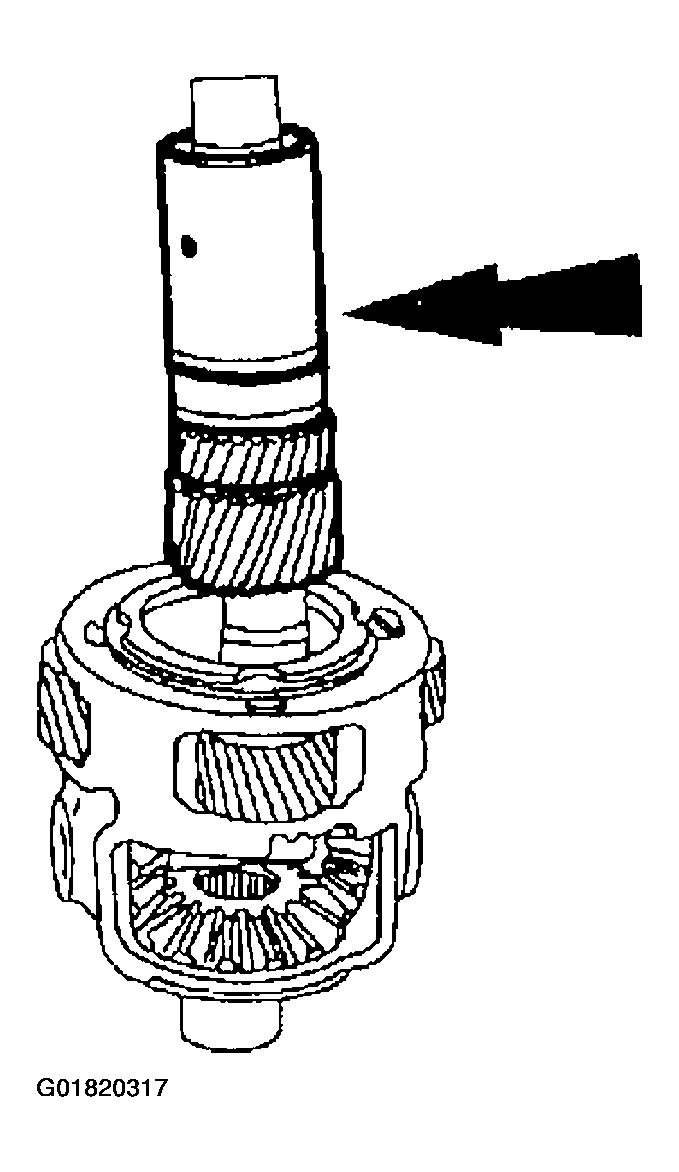

    8. Fig 7: Installing Final Drive Sun Gear & Deflector Assembly
    G01820317Courtesy of FORD MOTOR CO.
  8. Install the park gear.

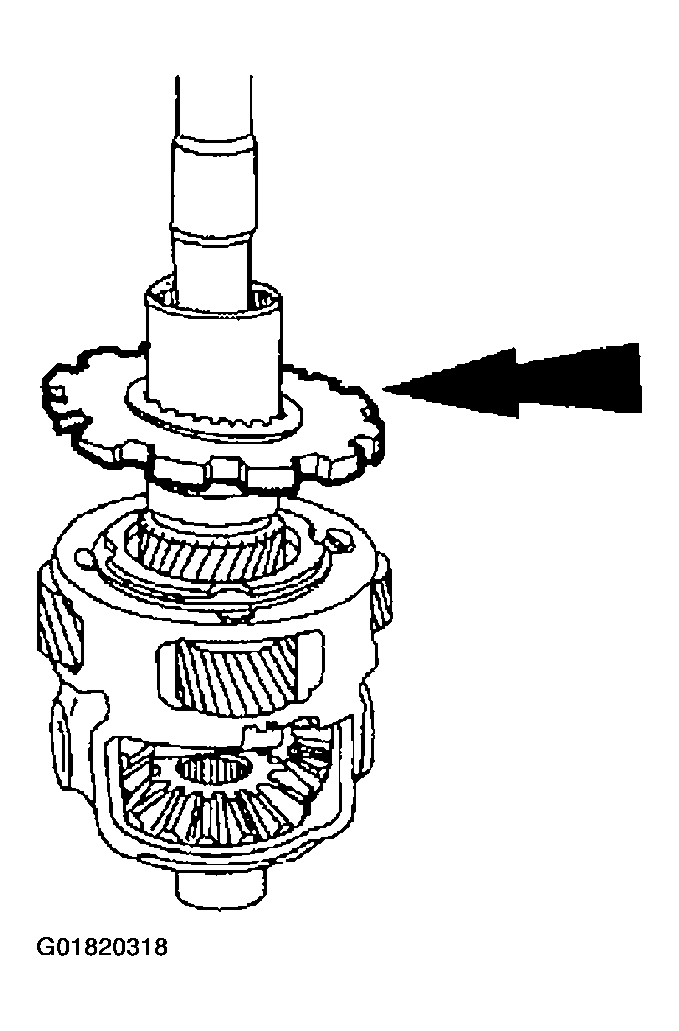

    9. Fig 8: Installing Park Gear
    G01820318Courtesy of FORD MOTOR CO.
  9. Install the No. 16 final drive gear front thrust bearing.

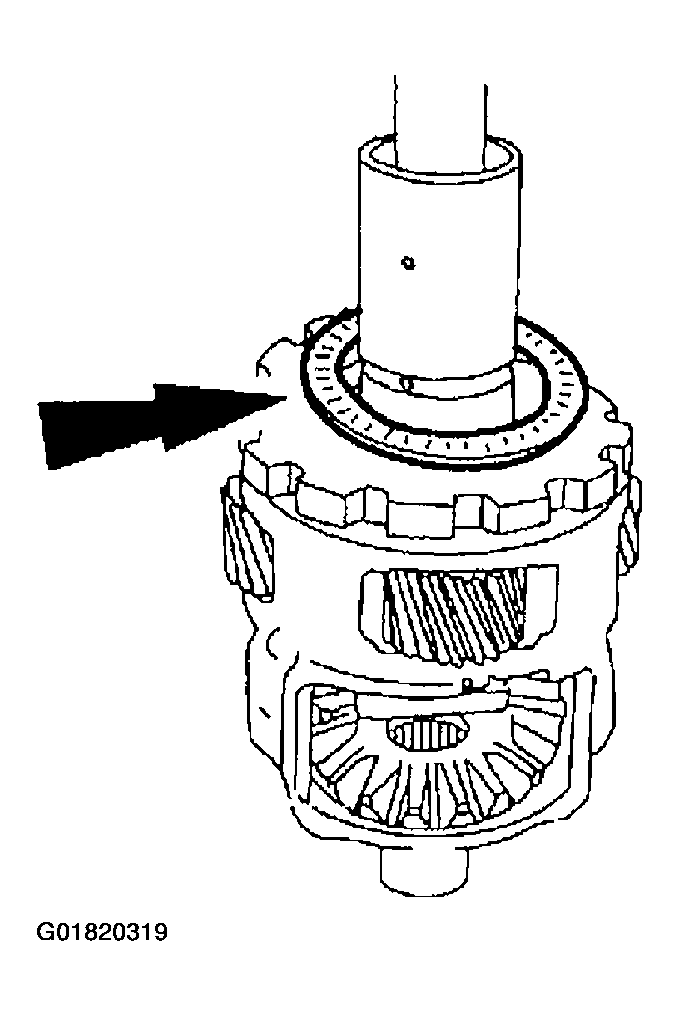

    10. Fig 9: Installing Final Drive Gear Front Thrust Bearing
    G01820319Courtesy of FORD MOTOR CO.
  10. Install new retaining circle clips.

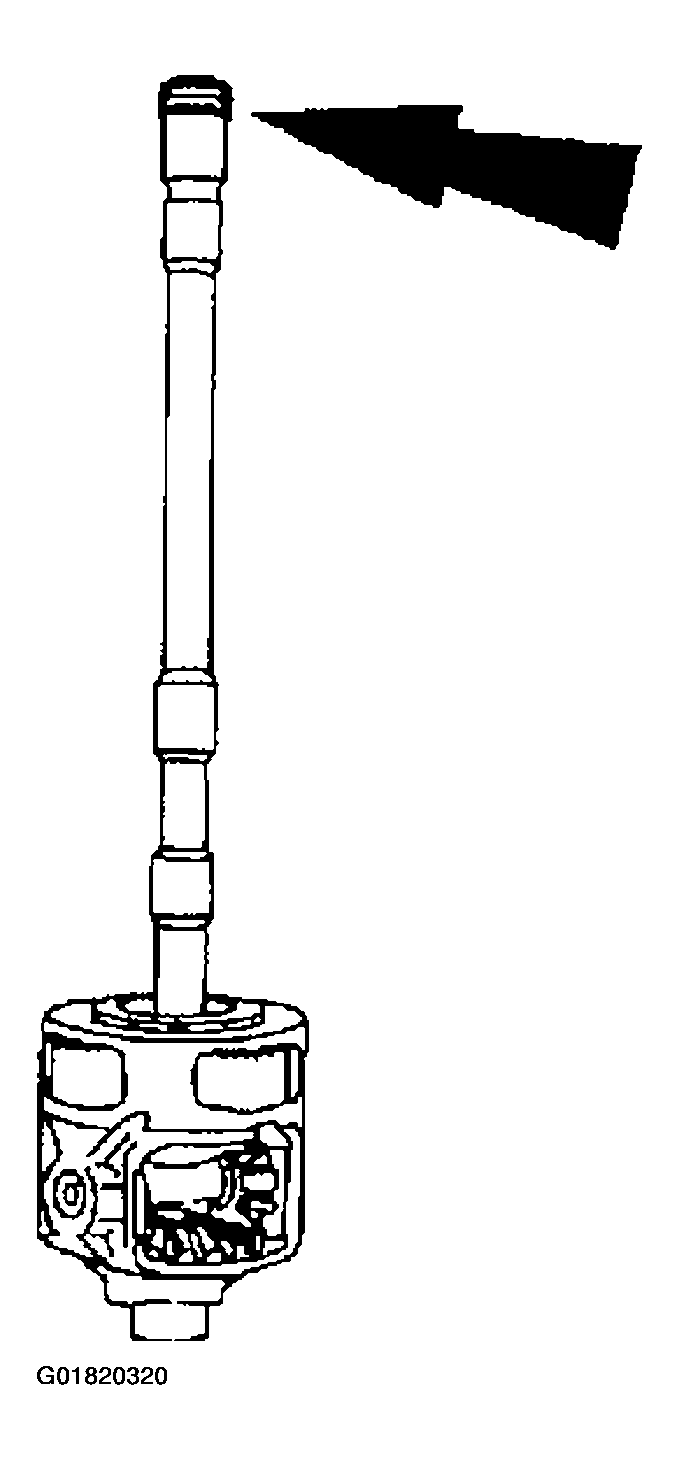

    11. Fig 10: Installing Retaining Circle Clips
    G01820320Courtesy of FORD MOTOR CO.
  11. Install the low intermediate clutch piston and rear planet support.

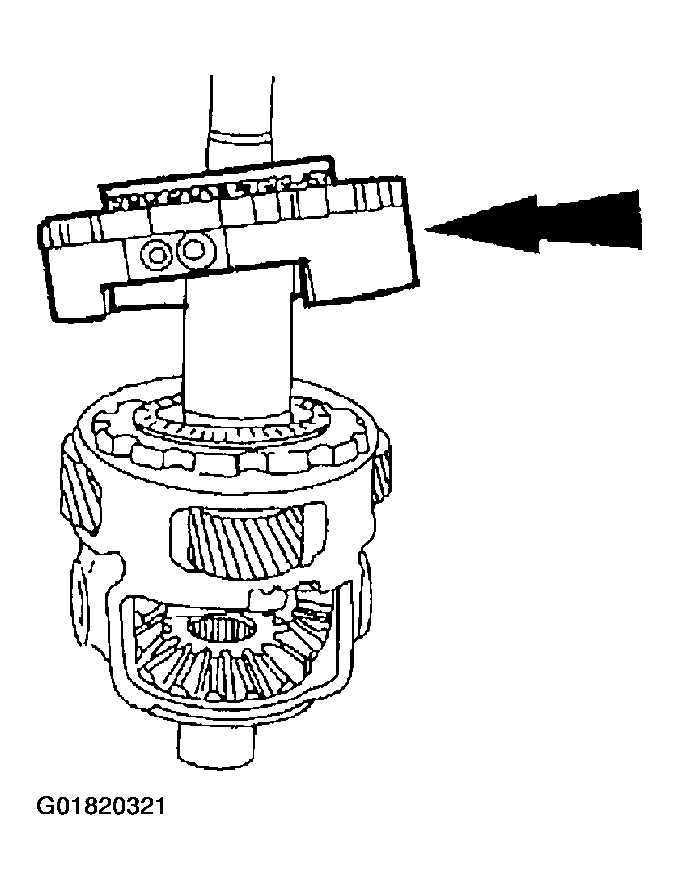

Fig 11: Installing Low-Intermediate Clutch Piston & Rear Planet Support
G01820321Courtesy of FORD MOTOR CO.
