2000 Lincoln Navigator RWDFACTORY OEM SERVICE PROCEDURE
Vehicle Security Module: Removal
WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Prior to removal of the vehicle security module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the pushpin and the RH interior kick panel.

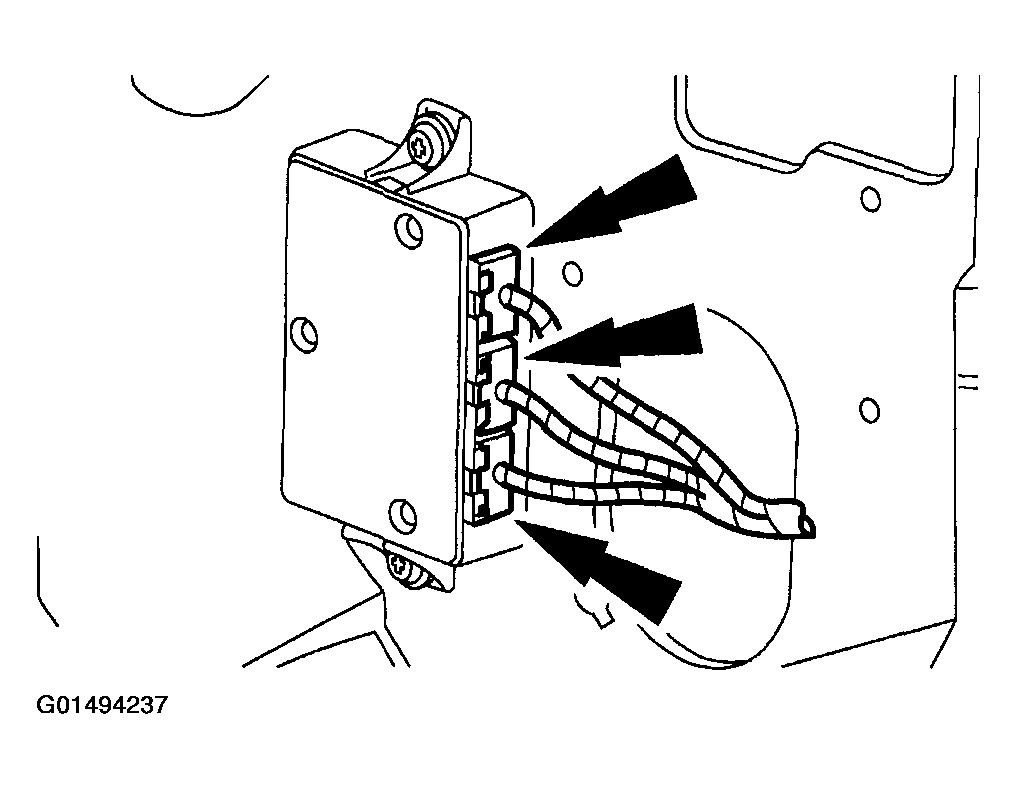

- Disconnect the three vehicle security module electrical connectors.

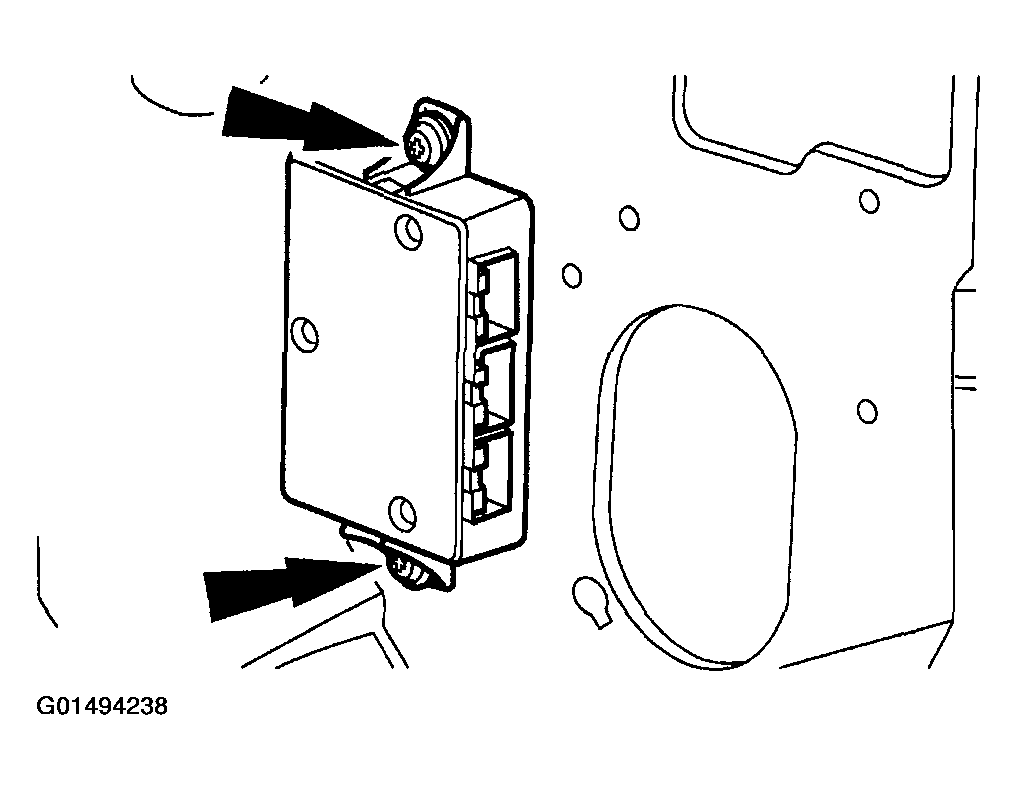

- Remove the two screws and the vehicle security module.
- To install, reverse the removal procedure.
