1980 Lincoln VersaillesFACTORY OEM SERVICE PROCEDURE

Power Relay

Activated by the ignition switch to supply battery voltage to the EEC. Attached to the lower right side of the ECA mounting bracket. Also protects ECA from possible damage due to reversed voltage polarity.

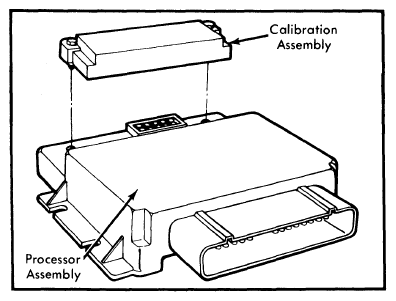

Fig 1: EEC Electronic Control Assembly (ECA)

Courtesy of FORD MOTOR CO.
