2021 Lexus UX 200 BaseFACTORY OEM SERVICE PROCEDURE

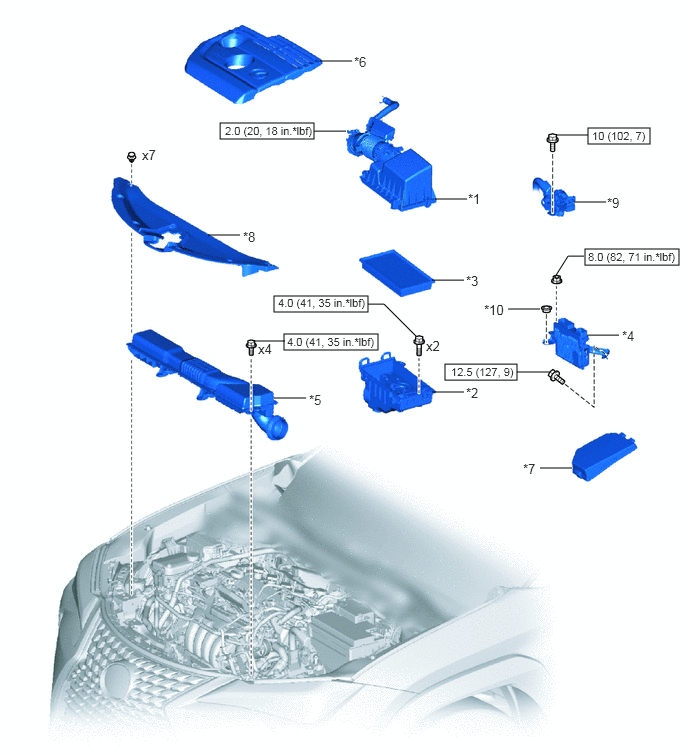

Components [10/2018 - 07/2022]
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | ECM |
| *5 | NO. 1 AIR CLEANER INLET | *6 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *7 | NO. 1 RELAY BLOCK COVER | *8 | RADIATOR SUPPORT OPENING COVER |
| *9 | ENGINE WIRE | *10 | GROMMET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

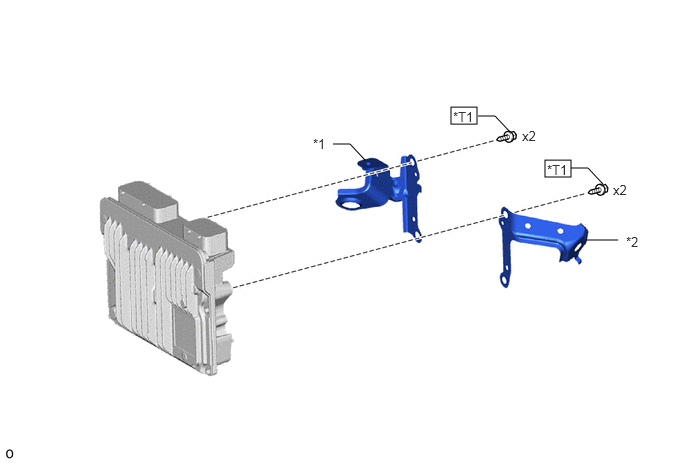

| *1 | NO. 1 ECM BRACKET | *2 | NO. 2 ECM BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - | |
| *T1 | for Type A: 4.5 N*m (46 kgf*cm, 40 in.*lbf) for Type B: 3.0 N*m (31 kgf*cm, 27 in.*lbf) |
- | - |
