2021 Lexus UX 200 BaseFACTORY OEM SERVICE PROCEDURE
Components [07/2022 - ]

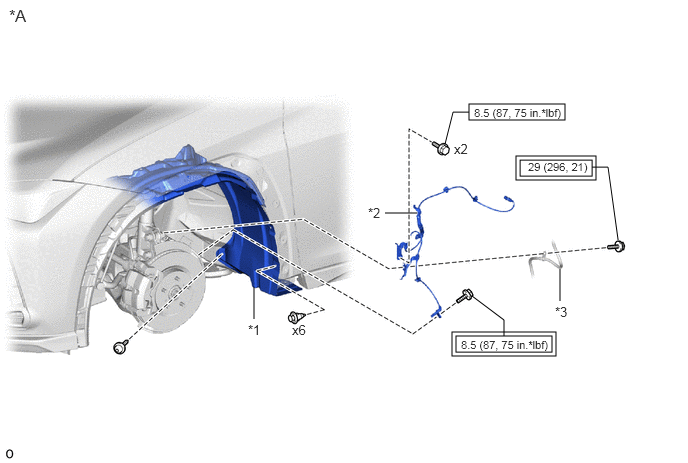

| *A | w/o AVS | - | - |
| *1 | FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY | *2 | FRONT SPEED SENSOR |
| *3 | FRONT FLEXIBLE HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

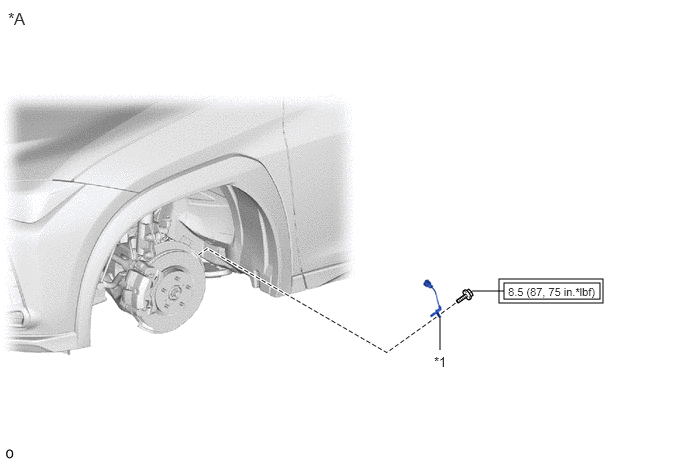

| *A | w/ AVS | - | - |
| *1 | FRONT SPEED SENSOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
