2021 Lexus RC F BaseFACTORY OEM SERVICE PROCEDURE
Components [09/2014 - ]

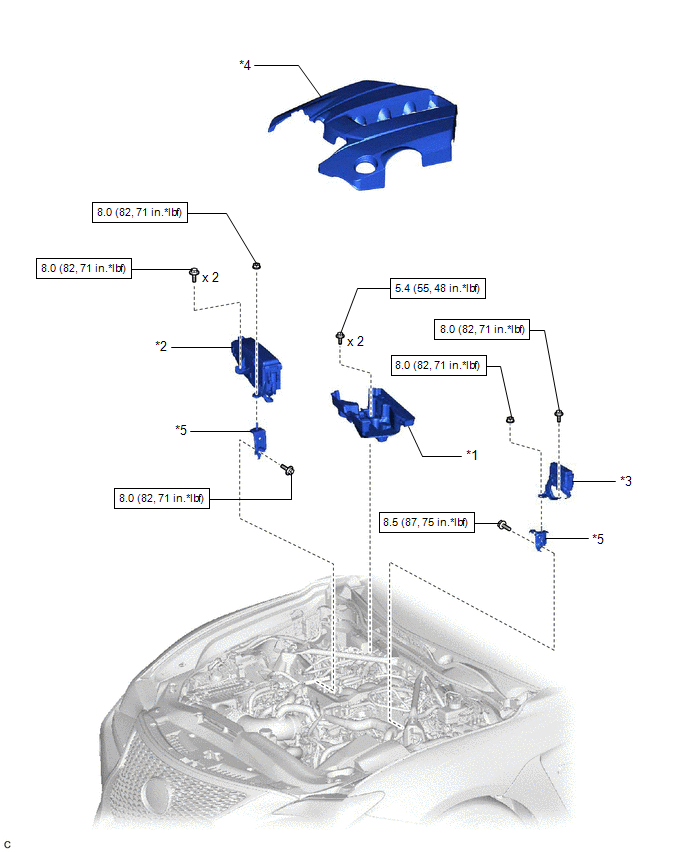

| *1 | BATTERY TRAY | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *3 | NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY | *4 | V-BANK COVER SUB-ASSEMBLY |
| *5 | WIRE HARNESS CLAMP BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

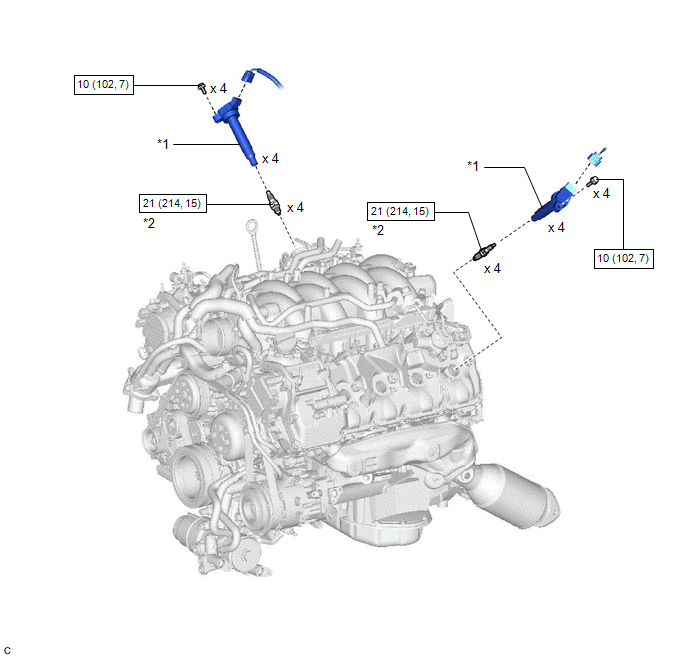

| *1 | IGNITION COIL ASSEMBLY | *2 | SPARK PLUG |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
