2021 Lexus RC F BaseFACTORY OEM SERVICE PROCEDURE

Removal [09/2014 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2014 - 03/2019] , or refer to REMOVAL [03/2019 - ]

  2. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
    1. for Bank 1:
      1. Turn back the floor carpet.
      2. Disconnect the heated oxygen sensor connector.

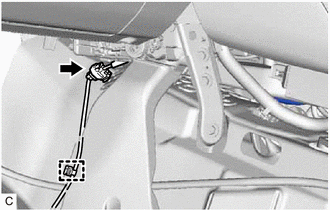

        GTY504677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the clamp.
    2. for Bank 2:
      1. Turn back the floor carpet.
      2. Disconnect the heated oxygen sensor connector.

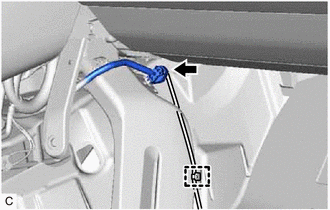

        GTY519074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the clamp.
  3. REMOVE HEATED OXYGEN SENSOR (for Bank 1)
    1. Disengage the heated oxygen sensor grommet from the vehicle body.

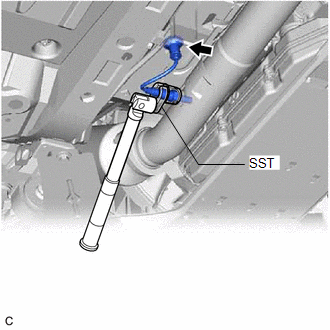

      GTY505907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

  4. REMOVE HEATED OXYGEN SENSOR (for Bank 2)
    1. Remove the bolt.

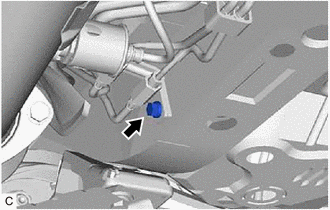

      GTY515919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the heated oxygen sensor grommet from the vehicle body.

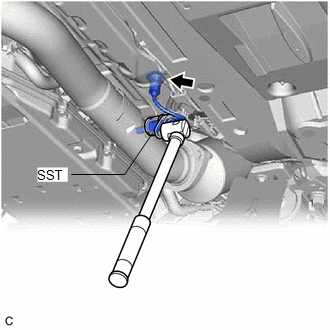

      GTY509929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.
