Inspection [09/2014 - ]: Procedure
- INSPECT ENGINE OIL TEMPERATURE SENSORΒ

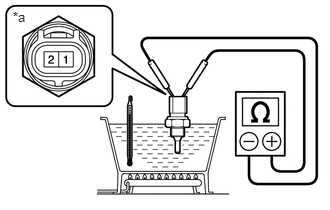

- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Engine Oil Temperature Sensor)Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 30Β°C (86Β°F) 7.512 to 9.124 kΞ© NOTE:If checking the engine oil temperature sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the engine oil temperature sensor.
If the result is not as specified, replace the engine oil temperature sensor.
- Measure the resistance according to the value(s) in the table below.
