Inspection [09/2014 - ]: Procedure
- INSPECT CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY
HINT:
Use the same procedure for the camshaft timing control motor with EDU assembly LH and camshaft timing control motor with EDU assembly RH.

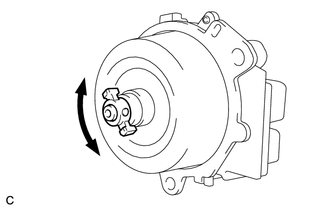

- Rotate the joint of the camshaft timing control motor with EDU assembly by hand and check that it rotates smoothly.
Standard Condition
The motor rotates smoothly.
NOTE:- If the camshaft timing control motor with EDU assembly has been struck or dropped, replace it.
- Do not disassemble the camshaft timing control motor with EDU assembly. If disassembled, replace it.
- Make sure the contact surface of the camshaft timing control motor with EDU assembly (connecting surface with the timing chain or belt cover sub-assembly) is free of foreign matter.
If the result is not as specified, replace the camshaft timing control motor with EDU assembly.
