2021 Lexus RC F BaseFACTORY OEM SERVICE PROCEDURE
Components [09/2014 - ]

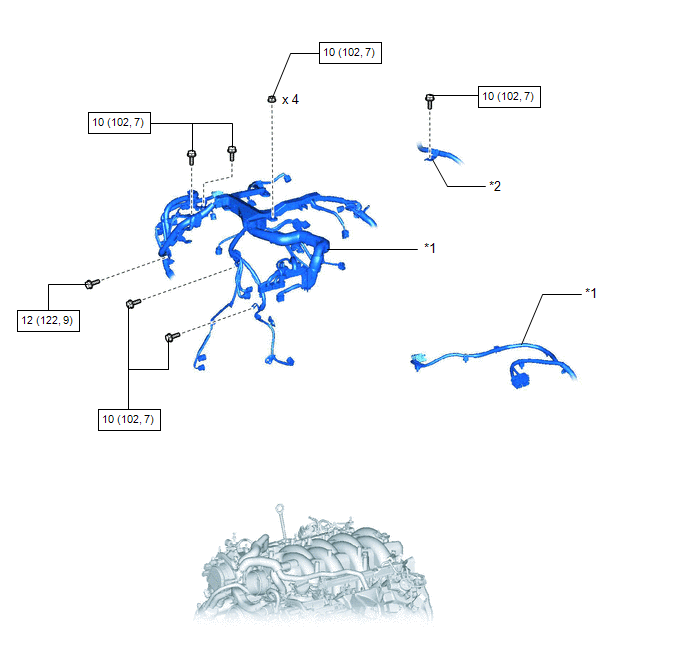

| *1 | ENGINE WIRE | *2 | WIRE HARNESS BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

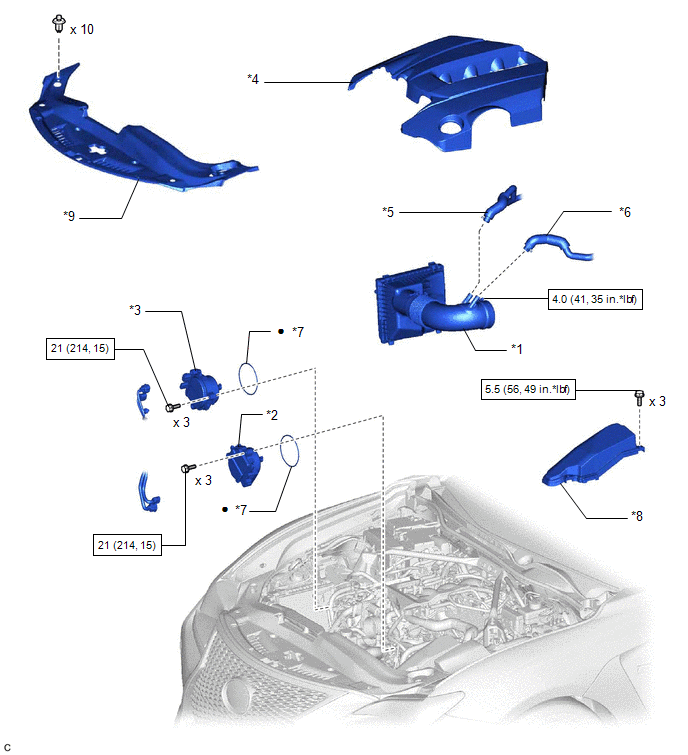

| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH |
| *3 | CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH | *4 | V-BANK COVER SUB-ASSEMBLY |
| *5 | NO. 2 VENTILATION HOSE | *6 | NO. 3 VENTILATION HOSE |
| *7 | O-RING | *8 | ENGINE ROOM ECU COVER |
| *9 | COOL AIR INTAKE DUCT SEAL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
