Removal [09/2014 - ]: Procedure
- REMOVE ENGINE ASSEMBLY WITH TRANSMISSION
Refer to REMOVAL [09/2014 - 05/2018] , or refer to REMOVAL [05/2018 - 03/2019] , or refer to REMOVAL [03/2019 - ]

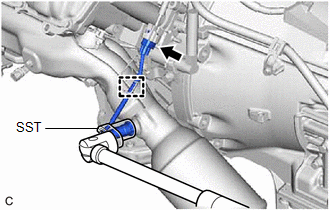

- REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

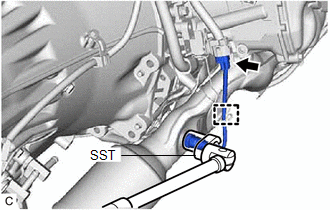

- REMOVE AIR FUEL RATIO SENSOR (for Bank 2)
