2021 Lexus RC F BaseFACTORY OEM SERVICE PROCEDURE
Components [09/2014 - 03/2019]

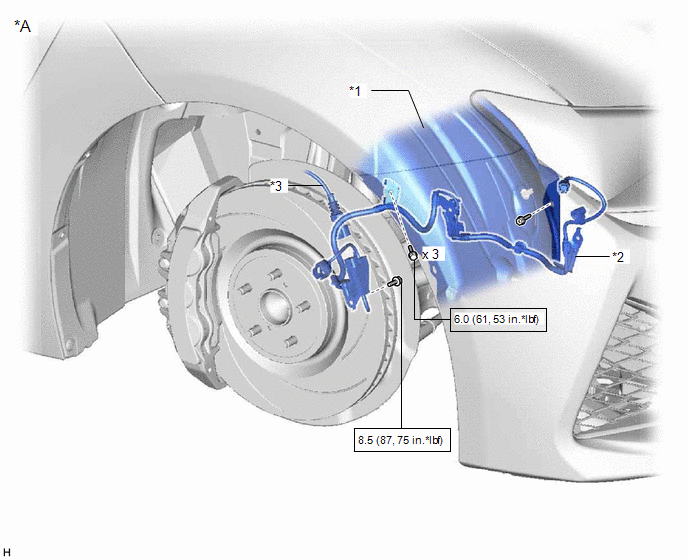

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications [09/2014 - 03/2019] (1 Of 3)
| *A | for LH Side | - | - |
| *1 | FRONT FENDER LINER LH | *2 | FRONT SKID CONTROL SENSOR WIRE LH |
| *3 | PAD WEAR INDICATOR WIRE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

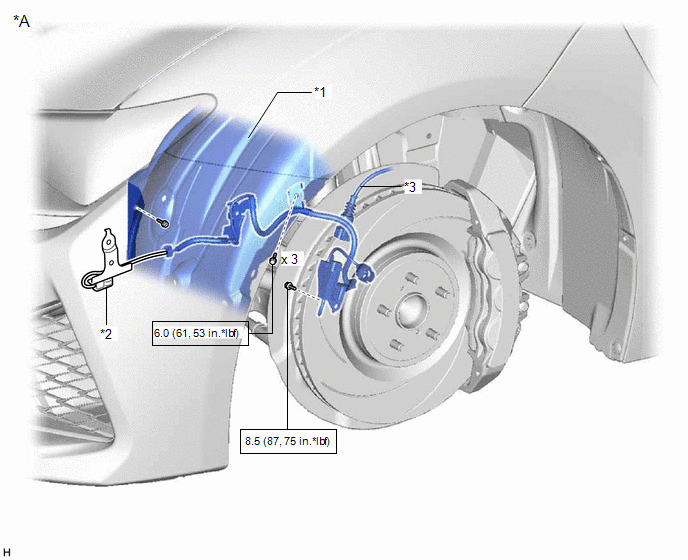

Fig 2: Front Speed Sensor Replacement Components With Torque Specifications [09/2014 - 03/2019] (2 Of 3)
| *A | for RH Side | - | - |
| *1 | FRONT FENDER LINER RH | *2 | FRONT SKID CONTROL SENSOR WIRE RH |
| *3 | PAD WEAR INDICATOR WIRE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

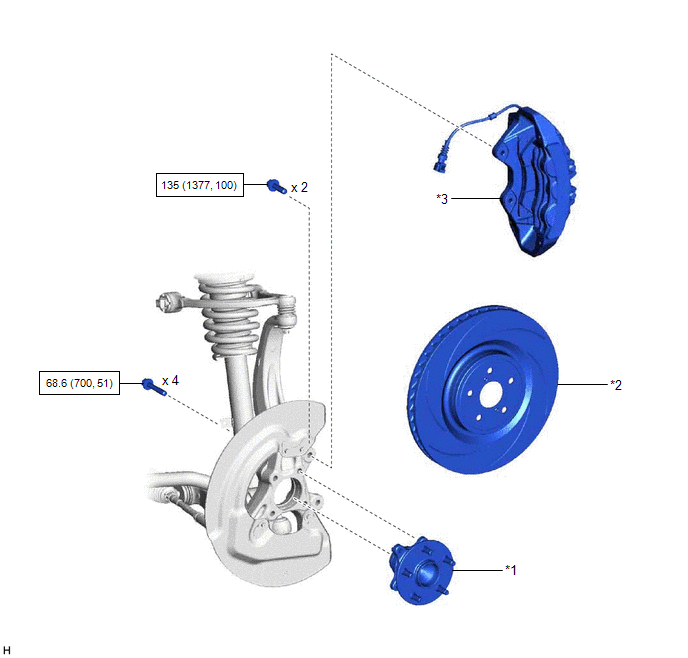

Fig 3: Front Speed Sensor Replacement Components With Torque Specifications [09/2014 - 03/2019] (3 Of 3)
| *1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE CALIPER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
