Removal [10/2014 - ]: Procedure
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]
- REMOVE AIR CLEANER CAP AND HOSE
- Disconnect the mass air flow meter sub-assembly connector.
- Slide the clamp and disconnect the ventilation hose assembly from the cylinder head cover sub-assembly.
- Disconnect the purge valve connector.

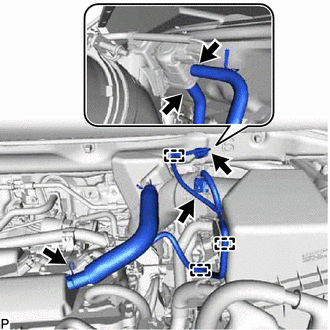

- Slide the 2 clamps and disconnect the fuel vapor feed hose and No. 2 fuel vapor feed hose from the purge valve.

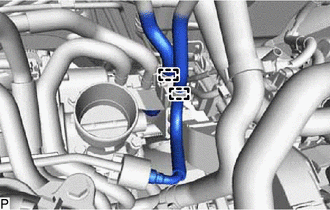

- Detach the 3 wire harness clamps.

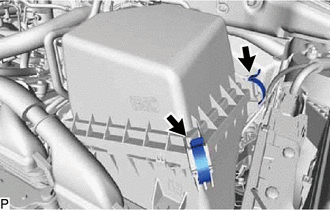

- Detach the 2 clamps and remove the air cleaner cap sub-assembly from the air cleaner case.

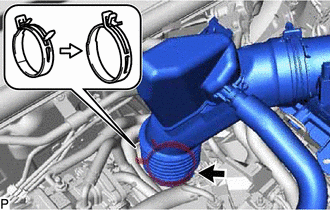

- Lock the hose clamp and disconnect the air cleaner cap and hose from the throttle with motor body assembly.
- Disconnect the mass air flow meter sub-assembly connector.
- REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY
- Disconnect the fuel tube sub-assembly and No. 2 fuel vapor feed hose from the fuel hose clamp.
- Disconnect the throttle with motor body assembly connector.

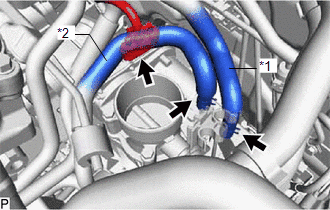

*1 No. 2 Water By-pass Hose *2 No. 3 Water By-pass Hose - Slide the 2 clamps and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle with motor body assembly.

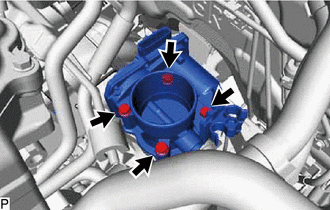

- Remove the 4 bolts, fuel hose bracket and throttle with motor body assembly.

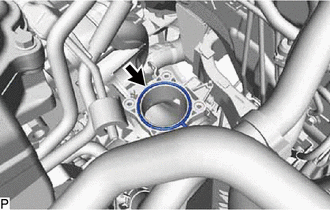

- Remove the gasket from the intake manifold.
- Disconnect the fuel tube sub-assembly and No. 2 fuel vapor feed hose from the fuel hose clamp.
