Inspection [10/2014 - ]: Procedure
- INSPECT THROTTLE WITH MOTOR BODY ASSEMBLYΒ

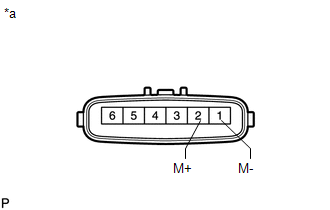

*a Component without harness connected
(Throttle with Motor Body Assembly)- Check that the throttle valve opens and closes smoothly.
- Check that the there is no sludge accumulating around the throttle with motor body assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (M-) - 2 (M+) 20Β°C (68Β°F) 0.3 to 100 Ξ© If the result is not as specified, replace the throttle with motor body assembly.
