On-Vehicle Inspection [10/2014 - ]: Procedure

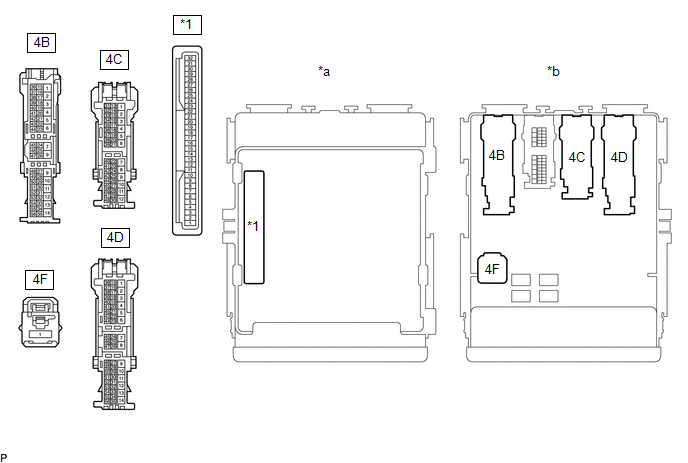

- INSPECT JUNCTION BLOCK
*1 Main Body ECU - - *a Component without harness connected
(Junction Block)*b Component without main body ECU connected
(Junction Block)NOTE:Before performing the relay inspections for the relays of the junction block, inspect the ECU-IG NO. 2, ECU-IG NO. 4 and ECU-IG NO. 5 fuses.
- Inspect the IG1 NO. 1 relay.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4F-1 - 4C-21 Battery voltage not applied to terminals 4B-46 and -4D-28 10 kΩ or higher Battery voltage applied to terminals 4B-46 and 4D-28 Below 1 Ω If the result is not as specified, replace the junction block.
- Measure the resistance according to the value(s) in the table below.
- Inspect the IG1 NO. 2 relay.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4F-1 - 4C-41 Battery voltage not applied to terminals 4B-46 and -4D-28 10 kΩ or higher Battery voltage applied to terminals 4B-46 and 4D-28 Below 1 Ω If the result is not as specified, replace the junction block.
- Measure the resistance according to the value(s) in the table below.
- Inspect the IG1 NO. 3 relay.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4F-1 - 4D-34 Battery voltage not applied to terminals 4B-46 and -4D-28 10 kΩ or higher Battery voltage applied to terminals 4B-46 and 4D-28 Below 1 Ω If the result is not as specified, replace the junction block.
- Measure the resistance according to the value(s) in the table below.
- Inspect the IG1 NO. 1 relay.

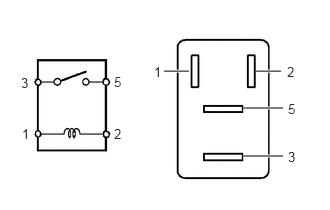

- INSPECT EFI MAIN RELAY (EFI MAIN)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher Battery voltage applied to terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the EFI main relay.
- Measure the resistance according to the value(s) in the table below.
- INSPECT EFI MAIN NO. 2 RELAY (EFI MAIN NO. 2)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher Battery voltage applied to terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the EFI main No. 2 relay.
- Measure the resistance according to the value(s) in the table below.
- INSPECT IGNITION NO. 2 MAIN RELAY (IG2-MAIN)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher Battery voltage applied to terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the ignition No. 2 main relay.
- Measure the resistance according to the value(s) in the table below.
