2021 Lexus NX 300h BaseFACTORY OEM SERVICE PROCEDURE

Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

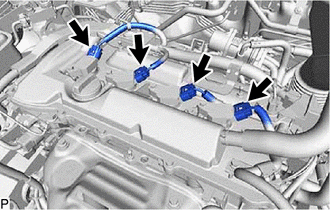

    1. GTY520712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 4 ignition coil assembly connectors.

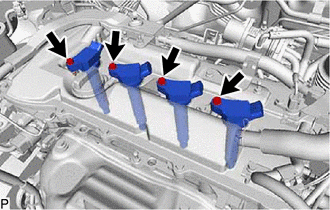

    2. Remove the 4 bolts and 4 ignition coil assemblies.
      GTY512099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Replace with a new part if it is dropped or if it receives a strong impact.

  3. REMOVE SPARK PLUG

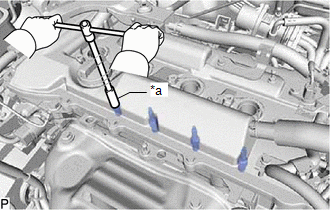

    1. GTY513168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 16 mm Spark Plug Wrench

      Using a 16 mm spark plug wrench, remove the 4 spark plugs.

      NOTE:

      Replace with a new part if it is dropped or if it receives a strong impact.
