Removal [10/2014 - ]: Procedure
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

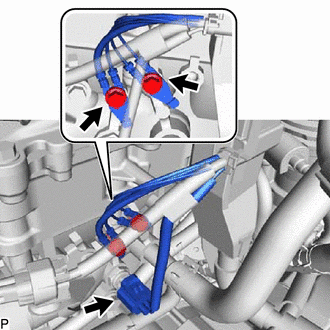

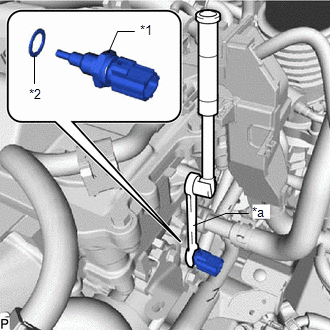

- REMOVE ENGINE COOLANT TEMPERATURE SENSOR
