Removal [10/2014 - ]: Procedure
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

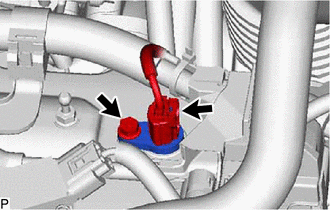

- REMOVE CAMSHAFT POSITION SENSOR
- Disconnect the camshaft position sensor connector.
- Remove the bolt and camshaft position sensor.
