2021 Lexus NX 300h BaseFACTORY OEM SERVICE PROCEDURE

Removal [10/2014 - ]: Procedure

DISCONNECT WIRE HARNESS
Refer to PROCEDURE - Step 4 [10/2014 - 09/2016], or refer to PROCEDURE - Step 4 [09/2016 - ]
REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
Refer to PROCEDURE - Step 4
DISCONNECT INVERTER RESERVE TANK ASSEMBLY
Refer to PROCEDURE - Step 7 [10/2014 - 09/2016], or refer to PROCEDURE - Step 7 [09/2016 - ]

REMOVE AIR FUEL RATIO SENSOR

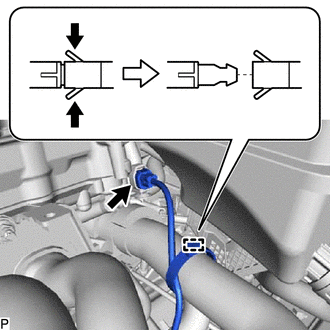

Remove the radiator hose clamp as shown in the illustration.

GTY521058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

Disconnect the air fuel ratio sensor connector.

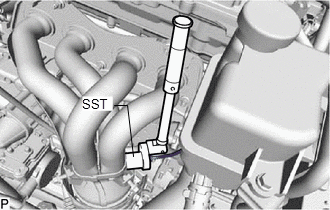

Using SST, remove the air fuel ratio sensor from the exhaust manifold.

SST: 09224-00011

GTY502803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
