2021 Lexus LS 500h AWDFACTORY OEM SERVICE PROCEDURE
Inspection [10/2017 - ]: Procedure
- INSPECT THROTTLE BODY WITH MOTOR ASSEMBLYΒ
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

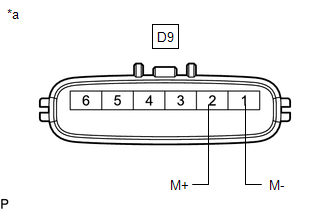

Tester Connection Condition Specified Condition D9-1 (M-) - D9-2 (M+) 20Β°C (68Β°F) 0.3 to 100 Ξ© *a Component without harness connected
(Throttle Body with Motor Assembly)If the result is not as specified, replace the throttle body with motor assembly.
- Measure the resistance according to the value(s) in the table below.
