2021 Lexus LS 500h AWDFACTORY OEM SERVICE PROCEDURE

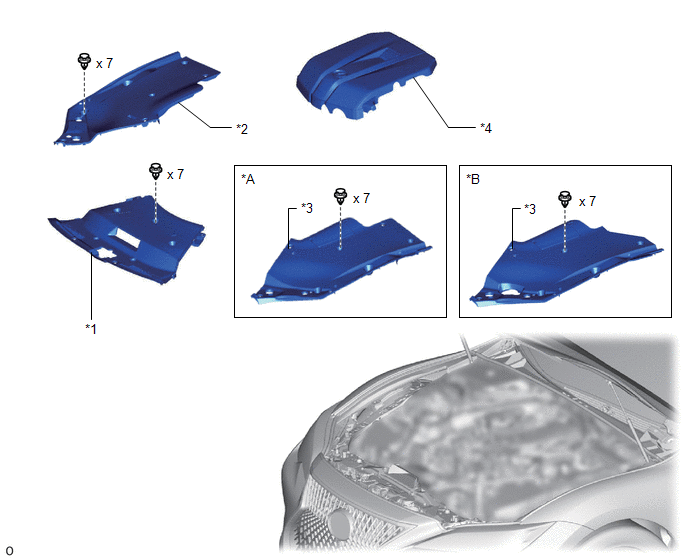

Components [10/2020 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | LOWER RADIATOR AIR DEFLECTOR | *2 | RADIATOR COVER PLATE |
| *3 | UPPER RADIATOR SUPPORT SEAL | *4 | V-BANK COVER SUB-ASSEMBLY |

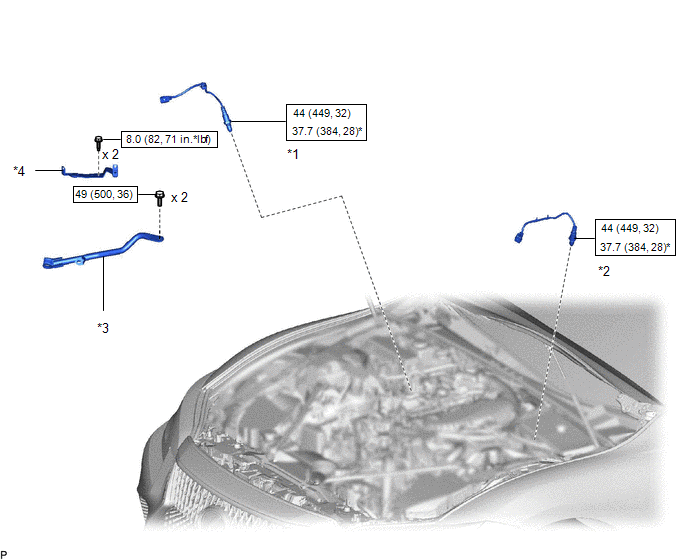

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [10/2020 - ] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1) | *2 | AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1) |
| *3 | FENDER APRON BRACE SUB-ASSEMBLY RH | *4 | INVERTER MOTOR CABLE BRACKET ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |

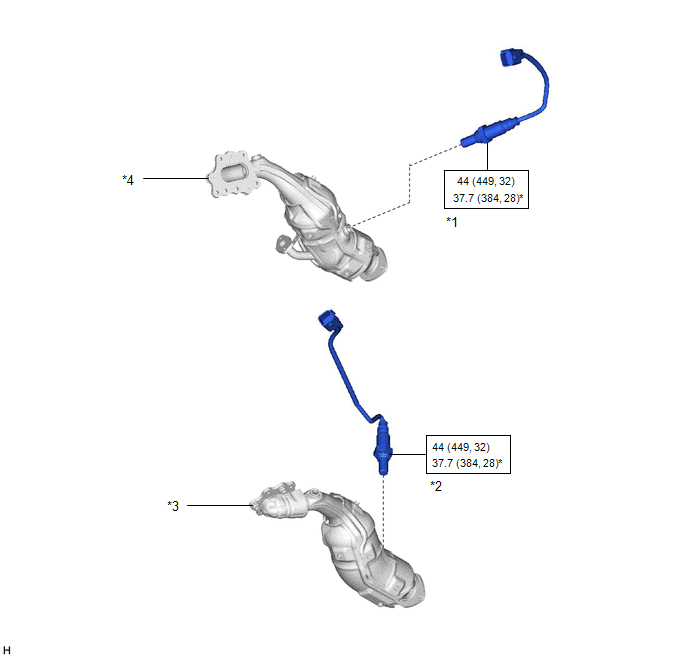

Fig 3: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [10/2020 - ] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2) | *2 | AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2) |
| *3 | EXHAUST MANIFOLD ASSEMBLY LH | *4 | EXHAUST MANIFOLD ASSEMBLY RH |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
