2021 Lexus LS 500 Base, RWDFACTORY OEM SERVICE PROCEDURE

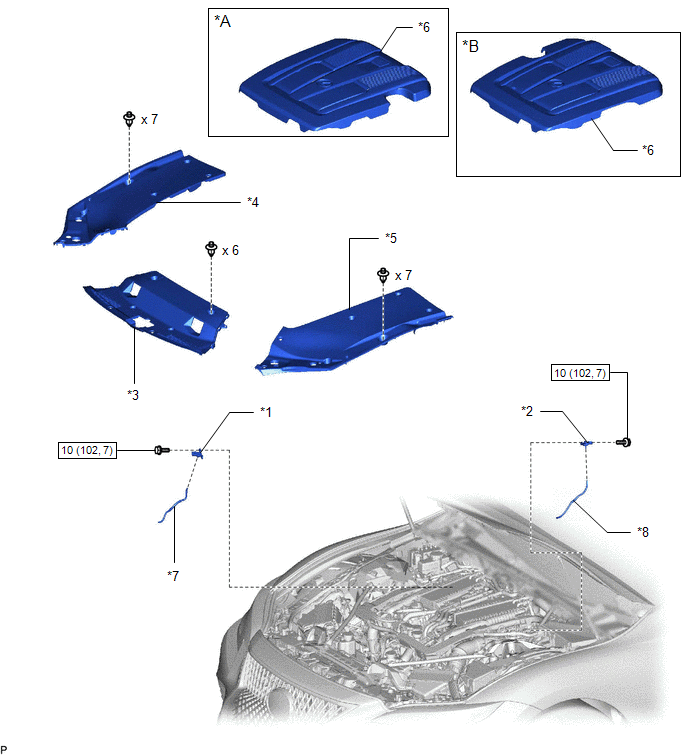

Components [12/2017 - ]
| *A | for 2WD | *B | for AWD |
| *1 | E.F.I. VACUUM SENSOR ASSEMBLY (for Bank 1) | *2 | E.F.I. VACUUM SENSOR ASSEMBLY (for Bank 2) |
| *3 | LOWER RADIATOR AIR DEFLECTOR | *4 | RADIATOR COVER PLATE |
| *5 | UPPER RADIATOR SUPPORT SEAL | *6 | V-BANK COVER SUB-ASSEMBLY |
| *7 | NO. 6 AIR HOSE | *8 | NO. 7 AIR HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
